1-3/8” KD

KD Drywall Frames for 1-3/8" Doors

Daybar’s DW Series Drywall Frames are manufactured in a variety of standard sizes for use with 1-3/8” doors in a broad range of wood or metal stud wall constructions.

These lighter-duty frames are available for installation as 3 pieces in 22 gauge A40 galvanneal steel, for drywall partitions after the wall has been erected.

It is recommended this type of frame be installed after wall construction, and is intended for interior commercial or residential applications.

Anchors
Series
Specifications
Downloads

KD adjustable tension - wood or metal stud

(for 3-pc knock-down frame)

DW250 - 2-1/2"

2-1/2" wall thickness

DW350 - 3-1/2"

3-1/2" wall thickness

DW450 - 4-1/2"

4-1/2" wall thickness

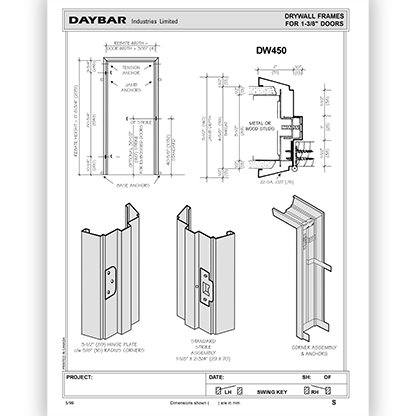

DW 22 Gauge Series Standard Drywall Frame Specifications

3-piece knock-down frame for installation in drywall partitions after the wall has been erected.

DW250 (2-1/2" wall thickness): Suitable for 1-5/8” Metal Studs with 1/2” Drywall each side.

DW350 (3-1/2" wall thickness): Suitable for 2-1/2” Metal or 2” x 3” Wood Studs with 1/2” Drywall each side.

DW450 (4-1/2" wall thickness): Suitable for 3-5/8” Metal or 2” x 4” Wood Studs with 1/2” Drywall each side.

Doors: For 1-3/8” non-bevelled Hollow Core Wood Doors or 1-3/8" Fiberglass Doors. Frames are sized to accommodate full-sized doors, in widths of 2-inch increments. Height available in 6'8". The nominal opening is DOOR WIDTH plus 3/16" and DOOR HEIGHT plus 3/4".

Sizes: Single Doors (2-hinge): 1'0" to 3'0" x 6'8"; Double Doors (4-hinge): 2'6", 2'8", 3'0", 4'0", 5'0", 6'0" x 6'8".

Single Opening: Hinge & strike jamb plus header

Double Opening: Pair of hinge jambs plus header

Rough Opening:
Width: Door Width plus 2"
Height: Door Height plus 1-1/4"

Frame Material: 22 gauge A40 galvanized steel. Passivated for easy paint application.

Hinge Preparation: Prepared for and supplied with 1 pair 3-1/2” x 3-1/2” 5/8" radius C15 Nickel Hinges. Screws are included for attaching the hinges to both the frame and the wood door.

Strike Preparation: Standard preparation is A.S.A. A115.3 (1-1/8" x 2-3/4"). Available to accommodate door preparation of 40" O/C or 44" O/C. Specify when ordering.

Strike Reinforcement: 1-1/8" x 2-3/4" T-Strike.

Silencers: Drilled for 3 single stud rubber bumpers.

Anchors: Welded in tension anchor to permit easy adjustment and anchoring of frame.

Finishing: Passivated for easy paint application.

4 Wall Anchor Styles
