2000 Series
Standard Metal Hardware works closely with architects, designers and distributors to produce some of the most intricate architectural door hardware in the world.
Domestic and international projects include: the Royal York Hotel in Toronto, Canada; the Ronald Reagan Building in Washington, D.C.; and the Kathmandu Airport in Nepal.
New architectural designs and concepts are welcome, and existing products may be tailored upon demand.
- Designs
- Specifications
- Downloads
2300 Series - narrow
Close
2300 Series - narrow
Grip: specify 7", 9", 12" or 15" length
Plate width: 1-1/2"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)
Plate width: 1-1/2"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)
2400 Series - smaller
Close
2400 Series - smaller
Grip: specify 7", 9", 12" or 15" length
Plate width: specify 3", 3-1/2" or 4"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)
Plate width: specify 3", 3-1/2" or 4"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)
2500 Series - larger
Close
2500 Series - larger
Grip: specify 7", 9", 12" or 15" length
Plate width: specify 3-1/2", 4" or 5"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)
Plate width: specify 3-1/2", 4" or 5"
(Backplate: 10.5", 12.5", 15.5", 18.5" length)

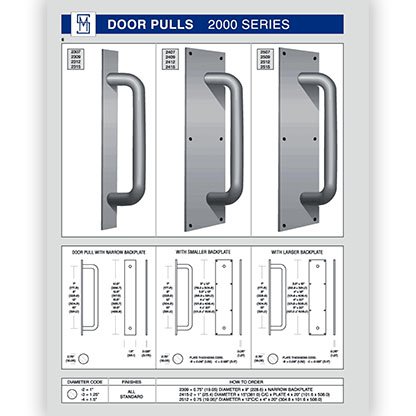

2000 Series Product Dimensions

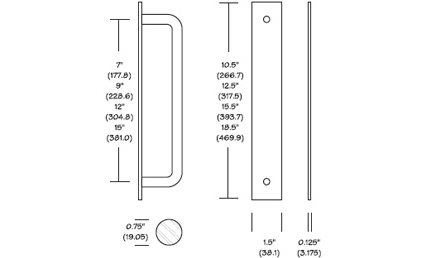

Door Pull with Narrow Backplate

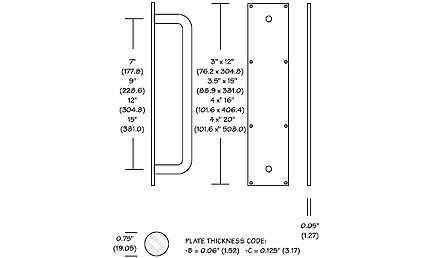

Door Pull with Smaller Backplate

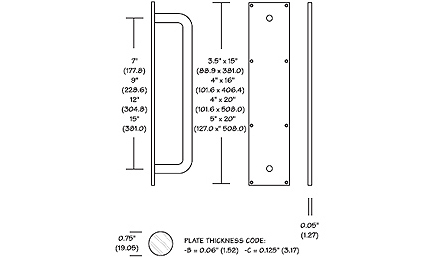

Door Pull with Larger Backplate
