ArborMet Collection

The ArborMet Collection of door pulls and accessories combines the alluring warmth of wood with the unrivaled strength of solid brass, bronze, or stainless steel.

This exceptionally durable wood grip
consists of select dyed hardwood veneers, impregnated with resin and laminated to produce a strong durable solid wood element.

The gripping surface actually feels warmer
to the touch than metal based pulls.

When combined with the shapes of the GeoMetek Collection, this hybrid product complements modern decor with a
warm accent.

A variety of natural wood species is available on special order; please contact Penner with your requirement.

Designs
Specifications
Finishes
Options
Downloads

RM1510 - small straight pull, square end

Brass or stainless steel only
5/8" diameter

5", 6" CTC in stock

1-1/2" projection

RM1530 - small offset pull, square end

Brass or stainless steel only
5/8" diameter

5", 6" CTC in stock

1-7/8" projection

RM1550 - small straight pull, round ends

Brass or stainless steel only
5/8" diameter

5", 6" CTC in stock

1-1/2" projection

RM1570 - small offset pull, round ends

Brass or stainless steel only
5/8" diameter

5", 6" CTC in stock

1-7/8" projection

RM4000 - straight pull, square end

1" diameter

8", 10", 12" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

2-3/4" projection

RM4002 - push bar, square ends

1" diameter

Specify CTC length

2-3/4" projection

RM4004 - straight pull, round ends

1" diameter

8", 11", 12" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

2-3/4" projection

RM4005 - straight push pull, square ends

1" diameter

Pull: 8" CTC / Push: Specify

2-3/4" projection

RM4006 - push bar, round ends

1" diameter

Specify CTC length

2-3/4" projection

RM4007 - straight push pull, round ends

1" diameter

Pull: 8" CTC / Push: Specify

2-3/4" projection

RM4010 - straight pull, square end

1-1/4" diameter

8", 11", 16" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

3" projection

RM4012 - push bar, square ends

1-1/4" diameter

Specify CTC length

3" projection

RM4014 - straight pull, round ends

1-1/4" diameter

8", 11", 16" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

3" projection

RM4015 - straight push pull, square ends

1-1/4" diameter

Pull: 8" CTC / Push: Specify

3" projection

RM4016 - push bar, round ends

1-1/4" diameter

Specify CTC length

3" projection

RM4017 - straight push pull, round ends

1-1/4" diameter

Pull: 8" CTC / Push: Specify

3" projection

RM4020 - straight pull, square end

1-1/2" diameter

11", 16", 20" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

3-1/4" projection

RM4022 - push bar, square ends

1-1/2" diameter

Specify CTC length

3-1/4" projection

RM4024 - straight pull, round ends

1-1/2" diameter

11", 16", 20" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

3-1/4" projection

RM4025 - straight push pull, square ends

1-1/2" diameter

Pull: 11" CTC / Push: Specify

3-1/4" projection

RM4026 - push bar, round ends

1-1/2" diameter

Specify CTC length

3-1/4" projection

RM4027 - straight push pull, round ends

1-1/2" diameter

Pull: 11" CTC / Push: Specify

3-1/4" projection

RM4030 - offset pull, square ends

1" diameter

8", 10", 12" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

2-1/2" projection

RM4034 - offset pull, round ends

1" diameter

Specify up to 96" CTC
Over 96" on select finishes

2-1/2" projection

RM4035 - offset push pull, square ends

1" diameter

Pull: 8" CTC / Push: Specify

2-3/4" projection

RM4037 - offset push pull, round ends

1" diameter

Pull: 8" CTC / Push: Specify

2-3/4" projection

RM4040 - offset pull, square ends

1-1/4" diameter

8", 11", 16" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

2-3/4" projection

RM4044 - offset pull, round ends

1-1/4" diameter

Specify up to 96" CTC
Over 96" on select finishes

2-3/4" projection

RM4045 - offset push pull, square ends

1-1/4" diameter

Pull: 8" CTC / Push: Specify

3" projection

RM4047 - offset push pull, round ends

1-1/4" diameter

Pull: 8" CTC / Push: Specify

3" projection

RM4050 - offset pull, square ends

1-1/2" diameter

11", 16", 20" CTC in stock
Specify up to 96" CTC
Over 96" on select finishes

3" projection

RM4054 - offset pull, round ends

1-1/2" diameter

Specify up to 96" CTC
Over 96" on select finishes

3" projection

RM4055 - offset push pull, square ends

1-1/2" diameter

Pull: 11" CTC / Push: Specify

3-1/4" projection

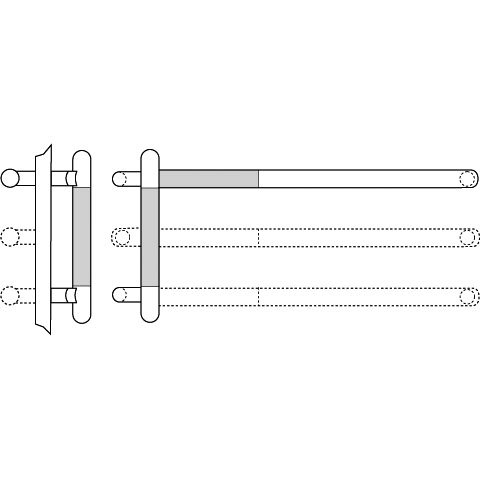

RM4057 - offset push pull, round ends

1-1/2" diameter

Pull: 11" CTC / Push: Specify

3-1/4" projection

RM4060 - straight pull, square grip

Stainless steel only
3/4" x 3/4" wood grip

10", 12" CTC in stock

2-1/4" projection

RM4062 - offset pull, square grip

Stainless steel only
3/4" x 3/4" wood grip

10", 12" CTC in stock

2-1/4" projection

RM4064 - straight pull, rectangular grip

Stainless steel only
3/4" x 1-1/4" wood grip

11", 16" CTC in stock

3-1/4" projection

RM4066 - offset pull, rectangular grip

Stainless steel only
3/4" x 1-1/4" wood grip

10", 12" CTC in stock

2-1/4" projection

RM4068 - straight pull, square grip

Stainless steel only
1-1/4" x 1-1/4" wood grip

11", 16", 20" CTC in stock

3" projection

ArborMet Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the ArborMet Collection are stainless steel, brass or bronze.

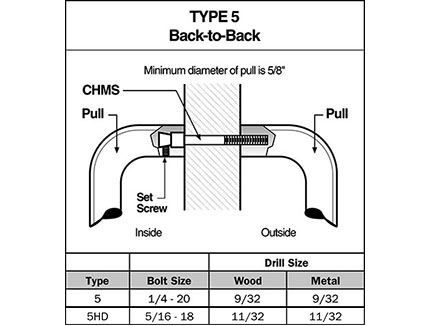

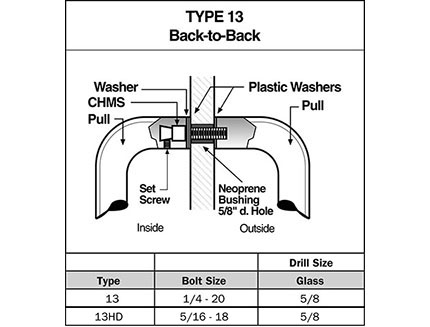

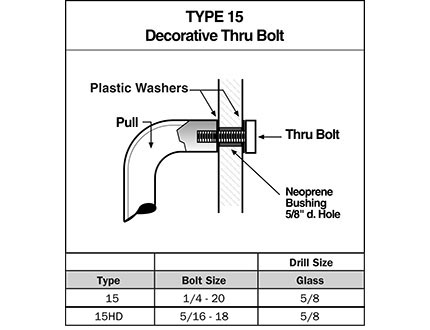

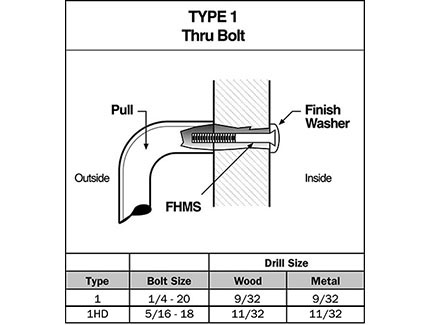

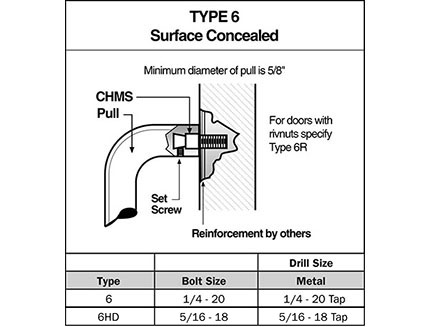

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Note: Post location on push bars can be located 1/8” from end for narrow and medium stile doors, and 1" from end for flush and wide stile doors.

To specify multi-bar sets suffix -2 or -3 to pull number (example: RM4012-3).

Options:

For optional mid-post with metal section, suffix the product number with "MP" (example: RM4024MP).
Mid-post recommended for maximum rigidity on pulls over 80".
Over 96" CTC available on select finishes.

Application Suggestions

Straight Pull - Square Ends

RM4000 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4010 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4020 Specifications (Standard & HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM4002 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4012 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4022 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM4004 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 11", 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4014 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4024 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Round Ends

RM4005 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4015 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4025 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM4006 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4016 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4026 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Round Ends

RM4007 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4017 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4027 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM4030 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 11", 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4040 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4050 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM4034 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4044 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify up to 96" CTC (center-to-center measurement between mounts)
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4054 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Square Ends

RM4035 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4045 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4055 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Round Ends

RM4037 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4047 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4057 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" push CTC; specify pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

GeoMetek Style Straight Pull - Square Grip

RM4060 Specifications:

Base Metal: Stainless Steel only
Grip: 3/4" x 3/4"
Lengths: 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/4"

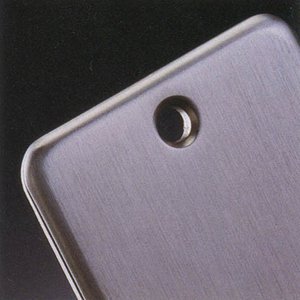

Finishes: US32D / BHMA 630 - Satin Stainless Steel, and US32 / BHMA 629 - Bright Stainless Steel

GeoMetek Style Offset Pull - Square Grip

RM4062 Specifications:

Base Metal: Stainless Steel only
Grip: 3/4" x 3/4"
Lengths: 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/4"
Finishes: US32D / BHMA 630 - Satin Stainless Steel, and US32 / BHMA 629 - Bright Stainless Steel

GeoMetek Style Straight Pull - Rectangular Grip

RM4064 Specifications:

Base Metal: Stainless Steel only
Grip: 3/4" x 1-1/4"
Lengths: 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630 - Satin Stainless Steel, and US32 / BHMA 629 - Bright Stainless Steel

GeoMetek Style Offset Pull - Rectangular Grip

RM4066 Specifications:

Base Metal: Stainless Steel only
Grip: 3/4" x 1-1/4"
Lengths: 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630 - Satin Stainless Steel, and US32 / BHMA 629 - Bright Stainless Steel

GeoMetek Style Straight Pull - Square Grip

RM4068 Specifications:

Base Metal: Stainless Steel only
Grip: 1-1/4" x 1-1/4"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630 - Satin Stainless Steel, and US32 / BHMA 629 - Bright Stainless Steel

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
