ArborTek Collection

ArborTek pulls and push bars are made
from select dyed hardwood veneers that
are impregnated with resin and laminated,
producing a strong durable solid wood element.

Just as in nature, each has its unique markings and tone.

Solid brass, bronze or stainless steel mounting
posts provide attachment strength and a simple contrast.

A variety of natural wood species is available on special order; please contact Penner with your requirement.

Designs
Specifications
Finishes
Options
Downloads

RM4100 - straight pull, square ends

1" diameter

8", 10", 12", up to 48" CTC in stock

2-3/4" projection

RM4104 - straight pull, round ends

1" diameter

8", 10", 12", up to 48" CTC in stock

2-3/4" projection

RM4110 - straight pull, square ends

1-1/4" diameter

8", 11", 16", up to 48" CTC in stock

3" projection

RM4112 - push bar, square ends

1-1/4" diameter

Specify CTC length

3" projection

RM4114 - straight pull, round ends

1-1/4" diameter

8", 11", 16", up to 48" CTC in stock

3" projection

RM4116 - push bar, round ends

1-1/4" diameter

Specify CTC length

3" projection

RM4120 - straight pull, square ends

1-1/2" diameter

11", 16", 20", up to 48" CTC in stock

3-1/4" projection

RM4122 - push bar, square ends

1-1/2" diameter

Specify CTC length

3-1/4" projection

RM4124 - straight pull, round ends

1-1/2" diameter

11", 16", 20", up to 48" CTC in stock

3-1/4" projection

RM4126 - push bar, round ends

1-1/2" diameter

Specify CTC length

3-1/4" projection

RM4130 - offset pull, square ends

1" diameter

8", 10", 12", up to 48" CTC in stock

2-1/2" projection

RM4134 - offset pull, round ends

1" diameter

8", 10", 12", up to 48" CTC in stock

2-1/2" projection

RM4140 - offset pull, square ends

1-1/4" diameter

8", 11", 16", up to 48" CTC in stock

2-3/4" projection

RM4144 - offset pull, round ends

1-1/4" diameter

8", 11", 16", up to 48" CTC in stock

2-3/4" projection

RM4150 - offset pull, square ends

1-1/2" diameter

11", 16", 20", up to 48" CTC in stock

3" projection

RM4154 - offset pull, round ends

1-1/2" diameter

11", 16", 20", up to 48" CTC in stock

3" projection

ArborTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the ArborMet Collection are stainless steel, brass or bronze.

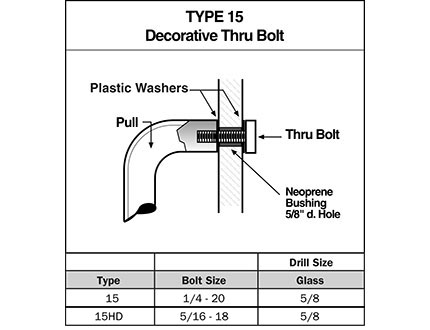

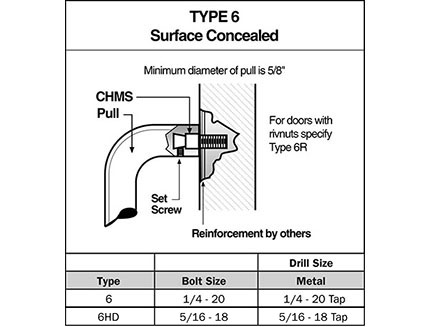

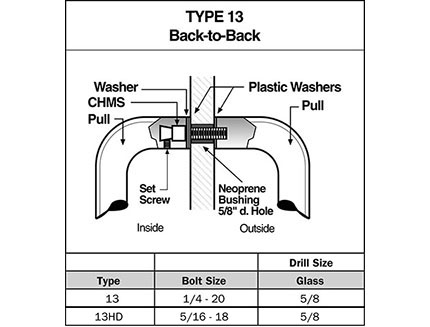

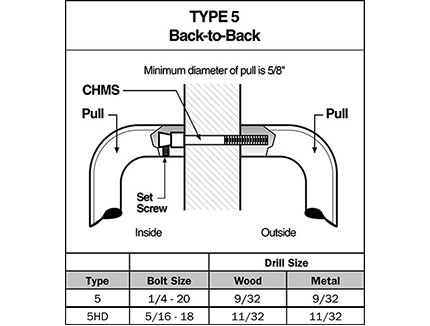

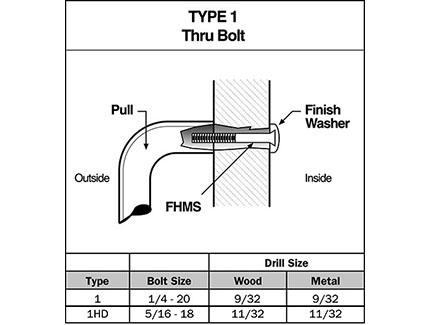

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM4122-2).

Straight Pull - Square Ends

RM4100 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1"
Lengths: 8", 10", 12", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

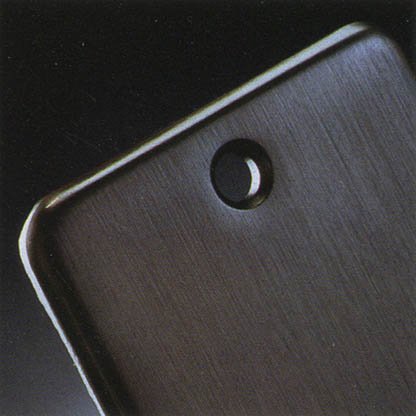

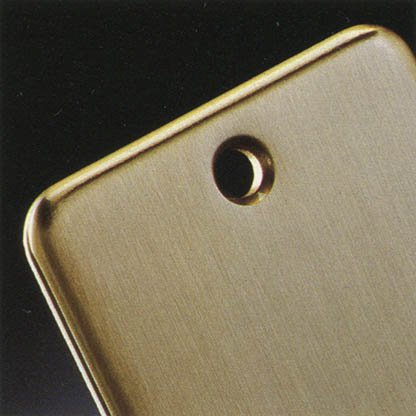

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4010 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 48" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4020 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 48" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM4104 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1"
Lengths: 8", 10", 12", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4114 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 48" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4124 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 48" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM4130 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1"
Lengths: 8", 10", 12", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4040 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4050 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 96" CTC (mid-post available)
Over 96" CTC available on select finishes (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM4134 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1"
Lengths: 8", 10", 12", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4144 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 48" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4154 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 48" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM4112 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4122 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM4116 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4126 Specifications (HD Mounting):

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
