BronzeAge Collection

The BronzeAge Collection of pulls are composed of a 90% copper alloy uncoated grip section, with stainless steel ends and mounting posts.

This combination provides the beautiful effects of copper with the low maintenance
of stainless steel.

Repeated contact with the grip section will prevent extreme tarnishing and allow a
soft patina to develop, while the ends and mounting posts stay bright and shiny with little maintenance.

Clear coating is available if a natural patina
is not desired.

Designs
Specifications
Finishes
Downloads

RM2810 - straight pull, square ends

1-1/4" diameter

8", 11", 16"; specify up to 36" CTC

3" projection

RM2812 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM2814 - straight pull, round ends

1-1/4" diameter

8", 11", 16"; specify up to 36" CTC

3" projection

RM2815 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2816 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM2817 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2820 - straight pull, square ends

1-1/2" diameter

11", 16", 20"; specify up to 36" CTC

3-1/4" projection

RM2822 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM2824 - straight pull, round ends

1-1/2" diameter

11", 16", 20"; specify up to 36" CTC

3-1/4" projection

RM2825 - straight push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM2826 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM2827 - straight push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM2840 - offset pull, square ends

1-1/4" diameter

8", 11", 16"; specify up to 36" CTC

2-3/4" projection

RM2844 - offset pull, round ends

1-1/4" diameter

8", 11", 16"; specify up to 36" CTC

2-3/4" projection

RM2845 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2847 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2850 - offset pull, square ends

1-1/2" diameter

11", 16", 20"; specify up to 36" CTC

3" projection

RM2854 - offset pull, round ends

1-1/2" diameter

11", 16", 20"; specify up to 36" CTC

3" projection

RM2855 - offset push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM2857 - offset push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

BronzeAge Collection Specifications

Most of Rockwood's products are available in a wide variety of
architectural finishes. The photographs generally show only one finish
for aesthetic reasons, but all traditional architectural finishes are available.
The base metal options for the BronzeAge Collection are stainless steel,
brass or bronze.

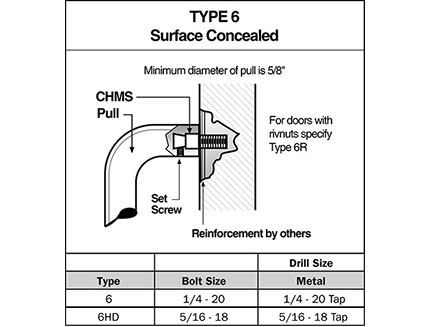

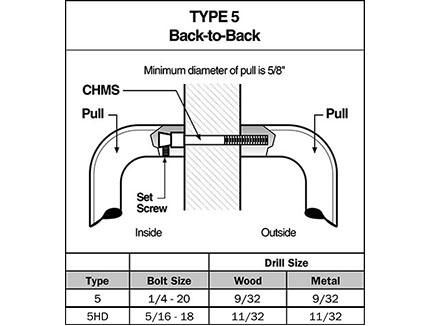

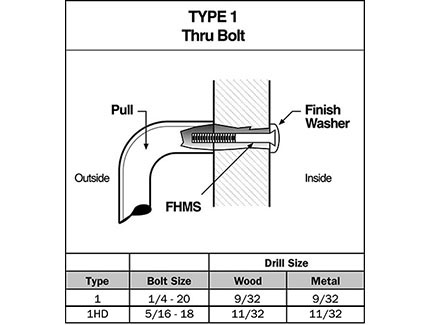

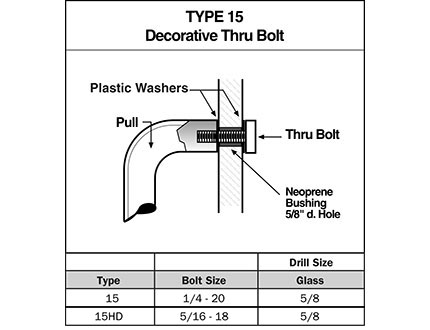

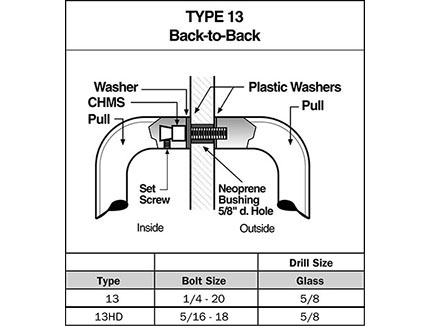

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
NOTE: Post location on push bars can be located 1/8" from end for narrow or medium stile doors, and 1" from end for flush or wide stile doors.

Options:

For optional clear coated grip, suffix the product number with "L" (example: RM2847L).
To specify multi-bar sets, suffix -2 or-3 to pull number (example: RM2847-2).

Straight Pull - Square Ends

RM2810 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2820 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Straight Pull - Round Ends

RM2814 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2824 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Offset Pull - Square Ends

RM2840 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2850 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Offset Pull - Round Ends

RM2844 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2854 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Straight Push Pull Set - Square Ends

RM2815 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2825 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Straight Push Pull Set - Round Ends

RM2817 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2827 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Offset Push Pull Set - Square Ends

RM2845 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2855 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Offset Push Pull Set - Round Ends

RM2847 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2857 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Push Bar - Square Ends

RM2812 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2822 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

Push Bar - Round Ends

RM2816 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

RM2826 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629
Option: Clear coated grip (L)

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
