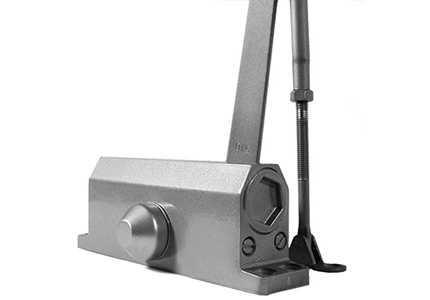

Dorex 300 Series

The 300 Series Closer is perfect for low traffic suite entry doors. This dependable unit's compact body design is ideal for use in light commercial, multi-family and residential applications.

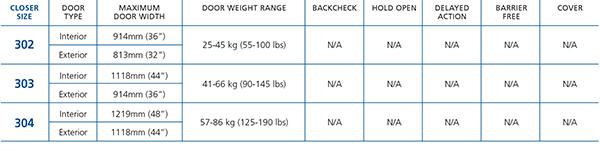

Three sizes accommodate interior and exterior doors, for widths ranging from 32" to 48". It is unobtrusive and does not compromise performance for size.

Designs
Specifications
Finishes
Options
Downloads

Dorex 300 Series

The 300 Series Closer is perfect for low traffic suite entry doors. This dependable unit's compact body design is ideal for use in light commercial, multi-family and residential applications.

Three sizes accommodate interior and exterior doors, for widths ranging from 32" to 48". It is unobtrusive and does not compromise performance for size.

Non handed
Fixed power sizes 2, 3 and 4
Universal retrofit hole spacing
Power adjustable arm bracket
Maximum 180° opening angle
Precision cast aluminum alloy housing
High quality non-gumming and non-freezing hydraulic fluid
Rack and pinion mechanism
Non critical thermostatic values

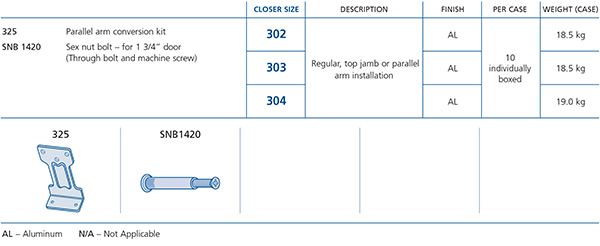

Tri-pack for regular, parallel arm, and top jamb installation
Separate adjustable sweep and latching speed valves
Metallic aluminum finish
cUL and UL listed
5 year limited warranty

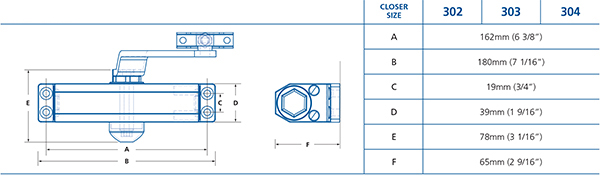

Dorex 300 Series Door Closer Specifications

Sized closers for interior and exterior doors shall be 300 series rack and pinion type with cast aluminum alloy shell.

Closer shall be non-handed, surface mounted by 3/4” hole spacing
and shall project no more than 3” from the door surface.
Closer shall have two non-critical thermostatic valves to separately control sweep and latch speeds and provide constant closing speeds under extreme temperatures.
Closer shall contain non-gumming and non-freezing hydraulic fluid. Brackets shall be supplied to permit regular, top jamb or parallel
arm installation and standard arm bracket shall allow 15% power adjustment.
Closer shall be supplied with all necessary mounting fastners.
