Commercial > Hardware > Designer Hardware > Architectural Pulls

Groove Collection

The Groove Collection showcases Rockwood's contemporary postmount style door pull with machined bands at both ends.

This subtle detail gives the postmount pull an added level of sophistication.

Designs
Specifications
Finishes
Options
Downloads

RM1211 - small square pull, square end

5/8" diameter with grooved ends

RM3101 - straight pull, square end

1" diameter with grooved ends

8", 10", 12" CTC

2-1/2" projection

RM3131 - offset pull, square end

1" diameter with grooved ends

8", 10", 12" CTC

2-1/2" projection

Groove Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the Groove Collection are aluminum, brass, bronze, or stainless steel.

Rockwood Door Pulls – Mounting Types

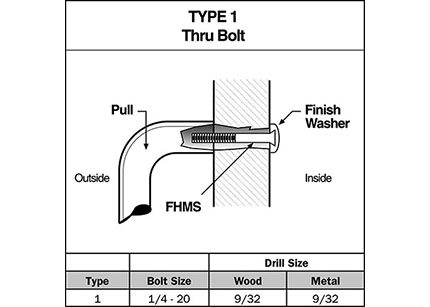

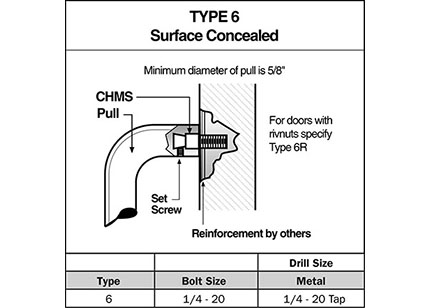

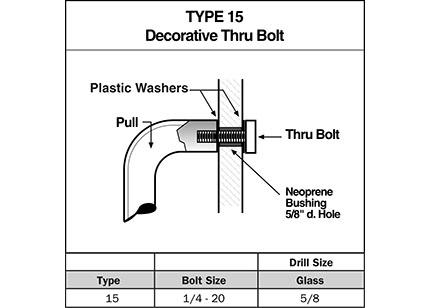

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Straight Pull - Square Ends

RM3101 Specifications:

Base Metal: Aluminum, Brass, Bronze, or Stainless Steel
Diameter: 1"
Lengths: 8",10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"

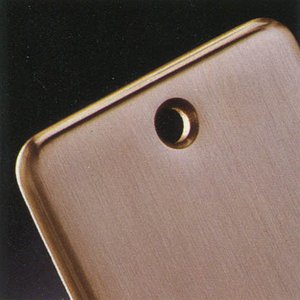

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM3131 Specifications:

Base Metal: Aluminum, Brass, Bronze, or Stainless Steel
Diameter: 1"
Lengths: 8",10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Small Straight Pull - Square Ends

RM1211 Specifications:

Base Metal: Aluminum, Brass, Bronze, or Stainless Steel
Diameter: 5/8"
Length: __" CTC (center-to-center measurement between mounts)
Projection: __"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
