Heavy Duty C-415

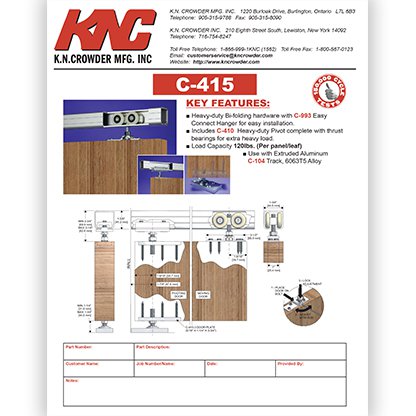

Crowderframe C Pivot Bi-Folding Door Kit Specifications

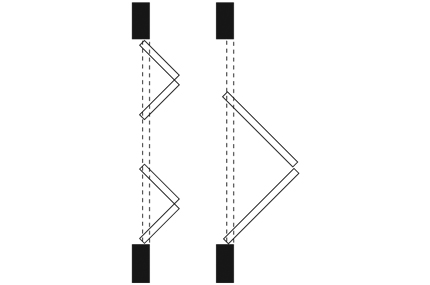

BI-FOLDING KITS AVAILABLE FROM 48" TO 144" TRACK WIDTH,
AND UP TO 4 DOORS.


C-415 Complete Kit for 2 Doors Bi-folding

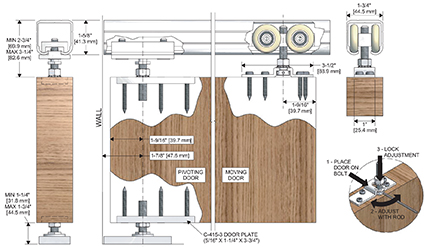

This kit includes a C-410 heavy-duty pivot complete with thrust bearings for extra heavy load. The top pivot clamps onto the track and new top plates reduce costs of prepping doors. The C-993 Quick Release Hanger (supplied) has a quick disconnect stud which allows hanger body and stud to be inserted into the track while mounting. The top plate is mounted to the top of door and then clips into the quick disconnect stud, thus reducing installation time. Hinges by others.

• Use with Extruded Aluminum C-104 Track, 6063T5 Alloy
• Load Capacity: 120 lbs. per panel/leaf
• All kits come complete with screws

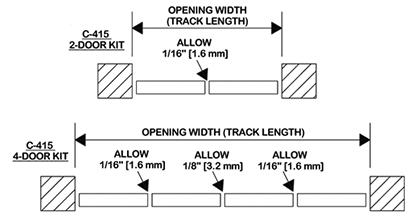

1 - C-104 TRACK X LENGTH
(OPENING WIDTH)

1 - C-993 HANGER

1 - C-415-1 TOP PLATE

1 - C-410-2 TRACK CLAMP

1 - C-410-4 BOTTOM PIVOT PLATE WITH THRUST BEARING

1 - C-415-2 QUICK DISCONNECT STUD

1 - C-415-4 TOP PIVOT STUD

1 - C-410-3 BOTTOM PIVOT STUD

1 - C-415 ADJUSTMENT ROD

1 - 3/8" HEX NUT

2 - C-415-5 LOCK NUT

2 - 5/16 X 1" HEX SOC CAP SCREW

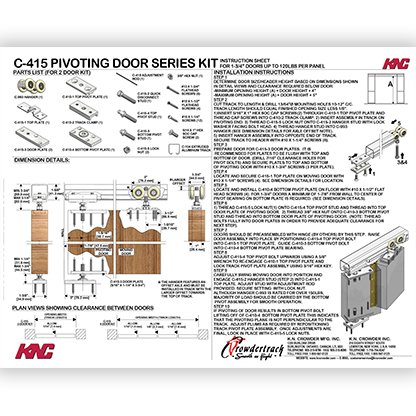

See Downloads tab for additional information and installation instructions.
