High Pressure Laminate

Standard-Size Components

Stiles: For compartments – 3'', 4'', 5'', 6'', 8'' [minimum 8" (20cm) wide stile recommended for ceiling-hung and flooranchored compartments], 10'', 12'', 16'', 18", 20'', or 24'' (8, 10, 13, 15, 20, 25, 30, 41, 46, 51, or 61cm) wide; for screens – 6" (15cm) wide. Floor-anchored – 69" (175cm) high; overhead-braced – 82-5/16" (209cm) high; ceiling-hung – 83" (211cm) high for 8' (244cm) ceilings or as required up to 10' (305cm) ceilings.

Doors: 58'' (147cm) high. Inswing doors are standard for 22'' to 37'' (56–94cm) widths in whole-inch increments. Outswing doors are standard for 25'' to 37'' (64–94cm) widths in whole-inch increments. (Use outswing doors to comply with local codes requiring access for physically disabled persons.)

Wall Posts: 1-1/2'' wide, 58'' high (4 x 147cm).

Panels: For compartments – Up to 84'' (213cm) wide; 58'' (147cm) high. For wall-hung screens – 42" or 48" (107 or 122cm) high; 18" or 24" wide (46 or 61cm). For ceiling-hung and floor-anchored screens – 58" (147 cm) high; 24", 36", 48", or 60" (61, 91, 122, or 152cm) wide.

Materials

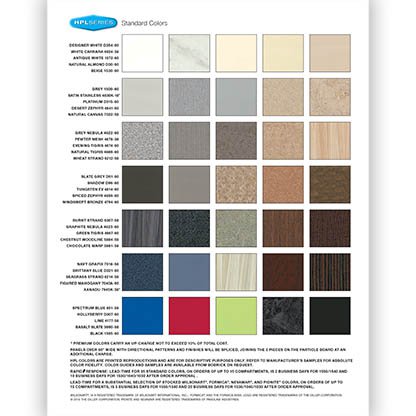

Stiles: 1'' (25mm) finished thickness: 3-ply, 45-lb (20.4-kg) density, resin-impregnated particle board; surfaces and edges are .050'' (1.3mm) thick, high-pressure plastic laminate with colored face sheets and matte finish. 1 Edges are routed to allow flush fit of edge trim. Edge trim is 18-8, type-304 stainless steel channel with satin finish.

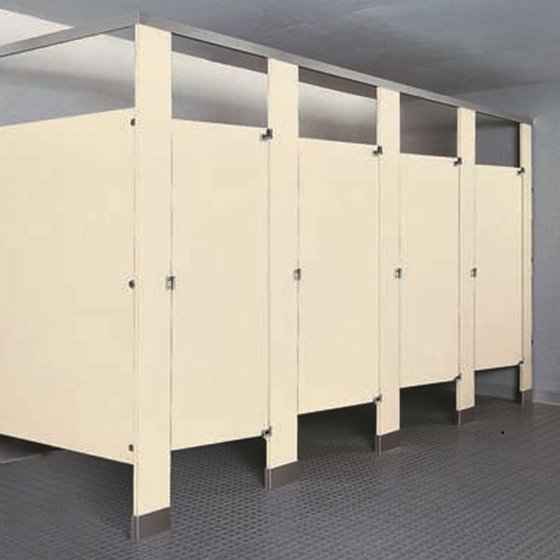

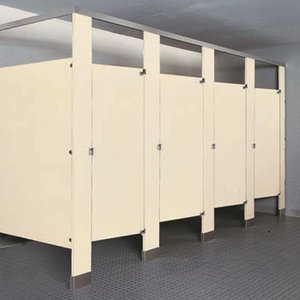

Leveling Device: Overhead-Braced Series – 12-gauge (2.8mm), 3" x 1-1/4" (75 x 32mm) plated steel stile bracket factory installed to bottom of stile. Furnished with leveling bolt, shoe retainer, floor L-bracket, plastic anchor #14-16, #14 x 5/8" (M6.3 x 16mm) stainless steel sheet-metal screws and #14 x 1-3/4" (M6.3 x 45mm) stainless steel sheet-metal floor screws.

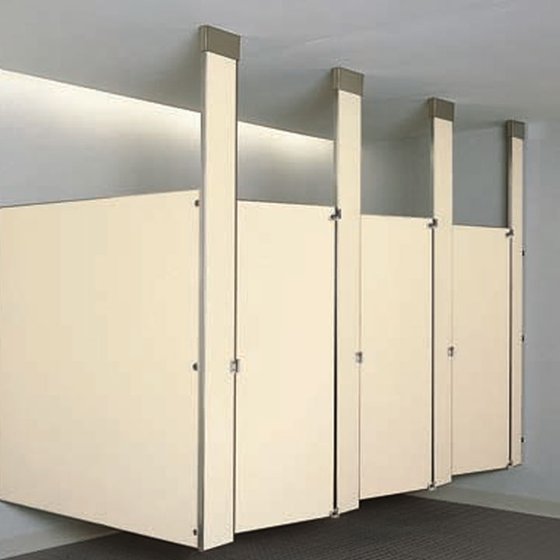

Floor-Anchored or Ceiling-Hung – 3/8" x 1" (10 x 25mm) steel bar, zinc-chromate plated, bolted to stile using 6" x 3/8" (152 x 10mm) diameter carbon steel lag bolt. Furnished with 3/8" (10mm) diameter threaded rods, hex nuts, washers, spacer sleeve (ceiling-hung only), expansion shield and shoe retainer.

Shoe: 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish; 4'' (102mm) high. One-piece shoe is open-ended, and may be mounted blind against wall using shoe clip fastener on wall side.

Panels and Doors: 1'' (25mm) finished thickness: 3-ply, 45-lb (20.4-kg) density, resin-impregnated particle board; surfaces and edges are .050'' (1.3mm) thick, high-pressure plastic laminate with colored face sheets and matte finish. .1 Edges are routed to allow flush fit of edge trim. Edge trim is 18-8, type-304 stainless steel channel with satin finish.

Headrail (1532 Series Only): Extruded anodized aluminum with satin finish. Enclosed construction with vandal-resistant sloping top.

Wallpost: 1-1/2" (38mm) x 1" (25mm) x 58" (147cm), 16 gauge (1.6mm) thick, 18-8, type-304 stainless steel. Pre-drilled for door mounting hardware.

Door and Mounting Hardware: Hinges, slide latches, door keepers, and coat hooks are constructed of stainless steel with satin finish. Theft-resistant, stainless steel pinhead torx screws are furnished for all inswing and outswing doors. Mounting brackets are constructed of 18-8, type-304, heavy-gauge stainless steel with satin finish. Stainless steel pin-head torx screws are furnished for mounting brackets. Toilet compartment door is locked from inside by sliding door latch into keeper. A locked compartment may be opened from outside by lifting door to disengage latch from keeper.

Installation

Bobrick installation instructions are packed with each shipment and are available also in advance on request. Notes:

1. Where water from showers or hose-down cleaning comes in contact with partitions, Bobrick 1080 Series water-resistant, solid phenolic partitions are recommended.
2. Ceiling-hung partitions require structural members (not furnished by Bobrick) in ceiling. For suggested types of ceiling support systems, see Mounting Systems, Ceiling-Hung in Downloads tab.
3. Wall backing is required to secure the mounting brackets of panels, stiles, and wall posts. For suggested wall backing, see Mounting Systems, Floor-Anchored & Overhead-Braced in Downloads tab.
4. Floor-anchored stiles are furnished with expansion anchors and threaded rods. The expansion anchors require minimum 2" (50mm) penetration into minimum 3" (75mm) thick structural concrete.
5. Bobrick stainless steel partition-mounted washroom accessories are available for mounting in panels between two compartments. See current Bobrick Catalog in Downloads tab, for description of accessories. Cutouts in panels can be pre-cut for Bobrick models at factory if location and size of all cutouts and Bobrick model numbers are furnished at time of order.

5-Year Warranty

Bobrick toilet partition panels, doors and stiles are warranted for a period of 5 years against breakage, corrosion, delaminating and defects in workmanship from the date of purchase for the periods set forth (this limited warranty is conditioned on the toilet partitions being properly installed, used and serviced). Spraying down or hosing HPL partitions voids warranty. Any products returned to Bobrick under this guarantee will be repaired or replaced at no charge.
