IberMet Collection

Cork is a renewable resource harvested on farms in the Iberian Peninsula.

Its unique qualities arise from a structure of air-filled, watertight flexible cells, which make it a superior insulating medium.

Therefore, IberMet pulls are ideal for use in high and low temperature locations.

Natural cork is aesthetically attractive, preserved with a sealer to maintain its surface finish.

Rockwood also offers a rubber cork compound, featuring an attractive and
very durable composite cork grip.

Designs
Specifications
Finishes
Downloads

RM1610N - small postmount pull

Natural cork, 5/8" diameter

5", 6" CTC

1-1/2" projection

RM1610R - small postmount pull

Rubber cork compound, 5/8" diameter

5", 6" CTC

1-1/2" projection

RM1630N - small postmount pull

Natural cork, 5/8" diameter

5", 6" CTC

1-7/8" projection

RM1630R - small postmount pull

Rubber cork compound, 5/8" diameter

5", 6" CTC

1-7/8" projection

RM1650N - small postmount pull

Natural cork, 5/8" diameter

5", 6" CTC

1-1/2" projection

RM1650R - small postmount pull

Rubber cork compound, 5/8" diameter

5", 6" CTC

1-1/2" projection

RM1670N - small postmount pull

Natural cork, 5/8" diameter

5", 6" CTC

1-7/8" projection

RM1670R - small postmount pull

Rubber cork compound, 5/8" diameter

5", 6" CTC

1-7/8" projection

RM2710N - straight pull, square ends

Natural cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

RM2710R - straight pull, square ends

Rubber compound cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

RM2714N - straight pull, round ends

Natural cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

RM2714R - straight pull, round ends

Rubber compound cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

RM2740N - offset pull, square ends

Natural cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

2-3/4" projection

RM2740R - offset pull, square ends

Rubber compound cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

2-3/4" projection

RM2744N - straight pull, round ends

Natural cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

RM2744R - straight pull, round ends

Rubber compound cork, 1-1/4" diameter

8", 11", 16", up to 22" CTC

3" projection

IberMet Collection Specifications

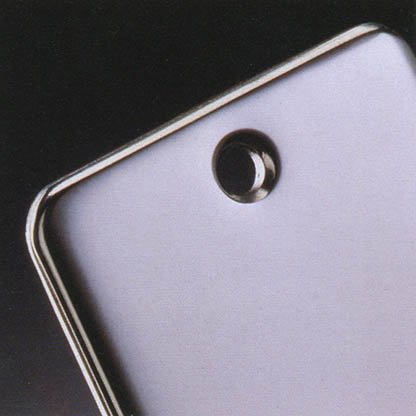

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the IberMet Collection are stainless steel, brass or bronze.

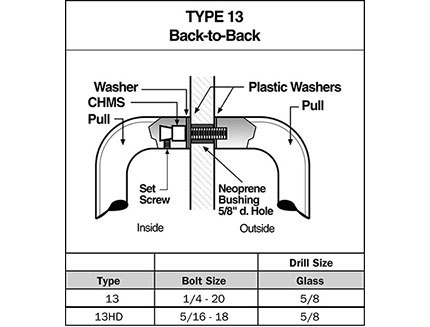

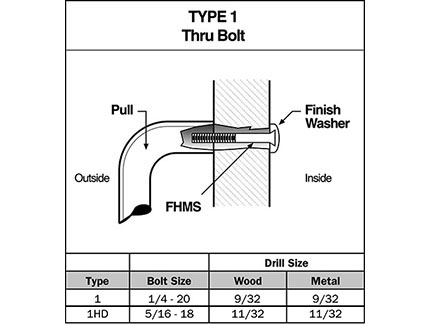

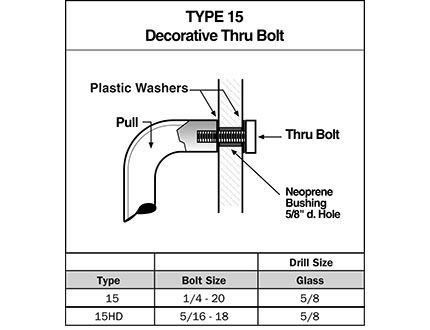

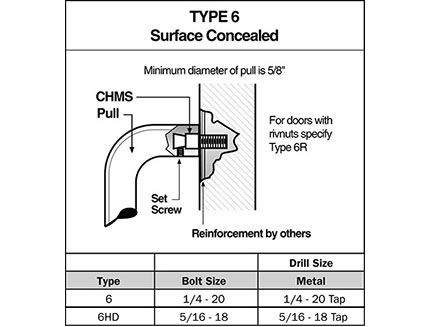

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Straight Pull - Square Ends

RM1610N Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Natural Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM1610R Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Rubber Compound Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM2710N Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Natural Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2710R Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Rubber Compound Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM1650N Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Natural Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM1650R Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Rubber Compound Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM2714N Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Natural Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2714R Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Rubber Compound Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM1630N Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Natural Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM1630R Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Rubber Compound Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM2740N Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Natural Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2740R Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Rubber Compound Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM1670N Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Natural Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-17/8"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM1670R Specifications:

Base Metal: Stainless Steel or Brass only
Grip: Rubber Compound Cork
Diameter: 5/8"
Lengths: 5", 6" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US4 / BHMA 606; US3 / BHMA 605

RM2744N Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Natural Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2744R Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Grip: Rubber Compound Cork
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 22" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
