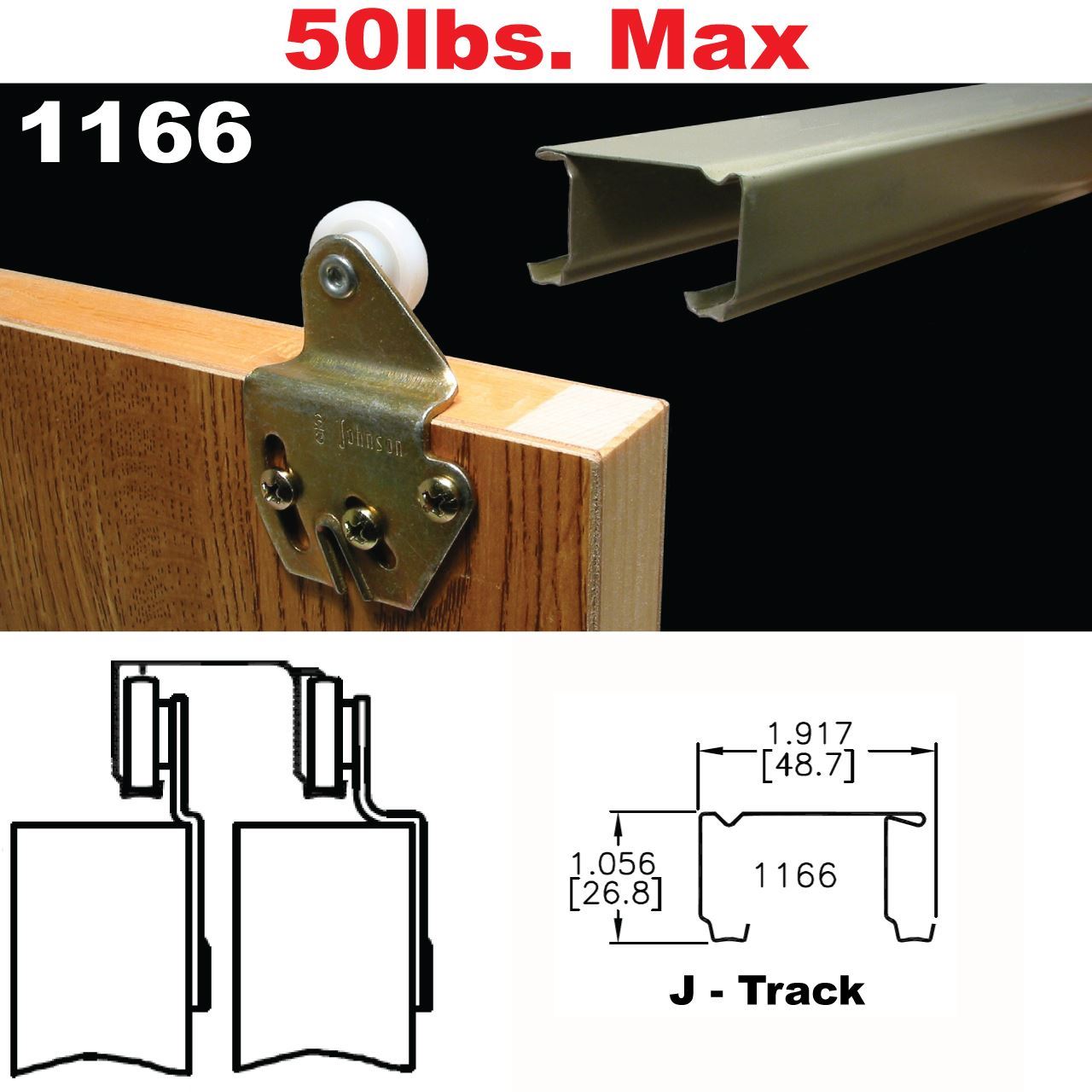

Johnson 1166 Bypass Kit
A general purpose residential grade sliding by-pass hardware system featuring a rolled steel track.
Convex track rails provide one point contact between wheel and track. Reversible hangers will accept either 3/4" [19mm] or 1-3/8" 35mm] doors. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.
- Designs
- Specifications
- Downloads
1166 Bypass Kit
Close
1166 Bypass Kit
For Single & Bi-Parting, By-Passing, Pocket or Wall Mounted Doors.
- Can be mounted side by side for by-pass applications
- Load capacity: 100 lbs. (two hangers)
Johnson 1166 Bypass Kit
- Max. Weight Per Door: 50lbs. [23kg]
- Application: Interior Residential
- Door Thickness: 3/4" [19mm] or 1-3/8" [35mm]
- Series Track: 1166
- Track Finish: Gold Tone
- Track Material: Rolled Steel
- Track Profile: Double Leg J-Track
- Hanger Type: Side Mount
- Wheel Dia.: 7/8"
- Wheel Type: Machine Turned and Balanced Nylon, Factory Greased
- Steel Component Finish: Zinc Trivalent Plated
- Steel Components: 12-14 Gauge
- Product Grade: Residential
1166 Display
1166 Display Back
Johnson 1166 Reference Drawings
1166 Opening Width
1166 Opening Height
1166 Track Dimensions
