Johnson Pocket Door Kits

Save valuable space in your home by installing a pocket door. They are a great space saving solution in smaller areas that can’t properly account for the natural swing of a hinged door.

Pocket doors can be used to close off a closet or laundry room in areas where space is at a minimum. But they also work in larger spaces, like dividing a kitchen and dining room.

Johnson’s 1060SOFT Soft-Close hardware works like a cabinet door closer to prevent slamming & pinched fingers. Combine with the 1500 Pocket Door Frame to close doors smoothly & easily.

Designs
Specifications
Downloads

1500 - single door kit

Commercial grade knocked-down frame kit

Height 6/8 (80"), 7/0 (84"), 8/0 (96")

1555 - converging doors kit

The 1555 Converging Door Kit links 2 kits together for bi-parting applications.

Johnson Adaptor Kit 1575

For use with standard 1500 frames
Use this adapter kit when installing 1-3/4 in. doors
Steel and nylon parts
1-3/4 in. adapter plate
Includes 2 adapter plates, spacers and wider floor bracket

Johnson Hanger Kit 1125

For use with Johnson 100 Series Aluminum track also featured in the 1500 Series Pocket Door Kits (not included).
Heavy-duty hangers with 2 ball bearing equipped wheels for long, trouble free service.
For installation of one bypassing or pocket door weighing up to 200lbs.
1 in. x 3 in. plate size.
Unique three wheel design ensures all wheels carry door weight equally.
Smooth rolling balanced wheels offer minimum friction riding on convex track rails.
"Flip-of-a-clip" separates wheels from hanger plate for easy door installation/removal.
Height adjustable.

Johnson Hardware Bag 1031 1502

For use with 1500 Series Pocket Door.
Accommodates doors up to 200 lbs.

Johnson 1060 Soft Close Kit

Converts existing non soft-close pocket doors to soft-close operation.
Single Direction Soft-Close Operation Only
200lbs. [91kg] Max. Door Weight
100, 134F, 138F, 2610F Series Track Compatibility
1500, 1560, 1562, 2710 Series Pocket Door Frame Compatibility

1500 Commercial Grade Pocket Door Frame Kits for 2x4 Stud Walls

Where a "traditional" swinging door takes up valuable floor and wall space, Johnson Hardware's® Pocket Door Hardware literally "fits right in" to solve room planning problems.

Johnson Hardware's® Pocket Door Hardware is designed to offer maximum space saving characteristics for a multitude of applications.

Pocket Doors are particularly well suited for dining rooms, master bathrooms, wardrobes, kitchens or anywhere floor space is at a premium.

The use of a pocket door will free up previously unusable wall and floor space with a clean and modern appearance.

Installation Video (YouTube): http://www.youtube.com/watch?v=iy1vuz1_hgo

Johnson 1500 Series Pocket Door Kit

1500 Commercial Grade 'Knocked Down' Pocket Door Frame Kit

The 1500 Series Pocket Door Frame is designed to carry heavy solid core doors (up to 200 lbs. each) in standard 2x4 timber or steel framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. It is a versatile frame and can be adapted for non-standard wall thicknesses, block masonry walls, or cut down to accept any smaller size door size.

MAXIMUM DOOR SIZE: 60" x 108" x 1-3/4" (5' x 9')
MINIMUM WALL STRUCTURE THICKNESS: 3-1/2"
MAXIMUM DOOR WEIGHT: 125lbs. EACH or
200 lbs. EACH w/ 1125 hangers

Complete frame kit, commercial grade, lifetime guarantee
Ideal for standard 2 x 4 interior wall construction
Accommodates all door sizes up to 5' x 9' x 1-3/4", 200 lbs.
Bolt 2 frames together for converging 2-door installations
Pre-installed 100 series box-track
Steel reinforced split studs for rigid pocket walls
Adjustable, detachable and jump-proof door hangers

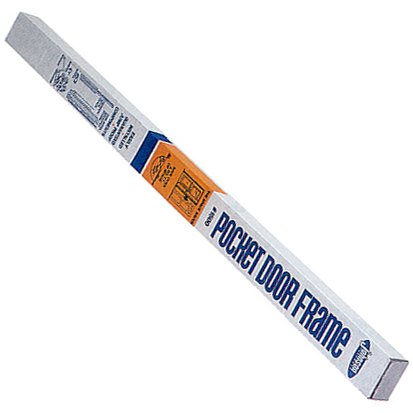

Delivered knocked down, easy transport, quick assembly
Frames can be cut down to fit any smaller door size
Manufactured in Elkhart, Indiana USA

Johnson 1500 Pocket Door Frame Technical Specifications

Dimensions:

MAX DOOR WEIGHT: 200 lbs. per door (w/ 1125 Door Hanger)
MAX DOOR WIDTH: 5/0 (60") per door
MAX DOOR HEIGHT: 9/0 (108")
MAX DOOR THICKNESS: 1-3/4"
MIN WALL STRUCTURE THICKNESS: 3-1/2" (2 x 4 walls)

Technical Ratings:

Grade: Commercial Grade ANSI Certified
Application: Interior Commercial / Residential
Max Door Thickness: 1-3/4" [44mm]
Max Door Width: 60" [1524mm]
Max Door Height: 108" [2743mm]
Min. Wall Structure Thickness: 3-1/2" [90mm]

Weight Capacity:

1120 Hanger - 125lbs. [57kg] Per Door
1125 Hanger - 200lbs. [91kg] Per Door

Manufacturing Specifications:

Frame Header: Select solid spruce
Split Studs: Select solid spruce, galvanized steel wrapped
Track: Aluminum extrusion, mill grade finish
Steel Components: 12-14 gauge, zinc trivalent plated
Wheels: Nylon encapsulated sealed ball bearing
Packaging: Rigid cardboard box, reinforced ends
Country of Origin: USA

Johnson Hardware continually strives to improve its products and manufacturing techniques in order to produce the best products possible. Therefore, improvements and physical design changes may be made over time to listed specifications without prior notice.

Johnson Hardware Exceeds ANSI Standards

Johnson Hardware® is tested to ANSI (American National Standard Institute) quality standards. All Johnson Hardware® systems are installed in a simulated opening to specified maximum door weight then cycle tested. One cycle equals one complete opening and one complete closing sequence. Commercial grade hardware must exceed 100,000 cycles and residential grade hardware must exceed 35,000 cycles to meet ANSI minimum requirements. Johnson Hardware® exceeds ANSI standards.

See Downloads tab for additional information and installation instructions.
