KN Crowder Sliding Door Tracks

K.N. Crowder has produced precision high quality track for over 65 years.

Prominent and exposed hardware for surface mounted barn door style applications, featuring large 3-1/2” [88.9mm] diameter delrin wheels with polished stainless steel side plates. Delrin has excellent strength and wear resistance while providing minimal friction.

Combined with precision ball bearings, these wheels provide extremely smooth and silent door operation. Precision machined and polished Solid 304 Satin Stainless Steel round bar track and hardware components combined for state-of-the-art appearance.

Designs
Specifications
Downloads

Top Mount

CRT-101

Top Mount

Industrial strength, extra heavy duty track system for 1-3/8" door applications
Solid 1" diameter round bar, varying lengths
Polished #304 solid stainless steel components for strength and durability
Available in 2 finishes: #304 Satin Stainless Steel, or Matte Black
Precision ball bearings and shock-absorbing compression stops for smooth, quiet door operation
Up to 350 lbs capacity per door
Capacity: 2 hangers - 350lbs; 3 hangers - 450lbs; 4 hangers - 600lbs

Strap Mount

CRT-102

Strap Mount

Industrial strength, extra heavy duty track system for 1-3/4" door applications
Solid 1" diameter round bar, varying lengths
Polished #304 solid stainless steel components for strength and durability
Available in 2 finishes: #304 Satin Stainless Steel, or Matte Black
Precision ball bearings and shock-absorbing compression stops for smooth, quiet door operation
Up to 350 lbs capacity per door
Capacity: 2 hangers - 350lbs; 3 hangers - 450lbs; 4 hangers - 600lbs

Product Features

Industrial strength, extra heavy duty track system for 1-3/8" (Top Mount CRT-101) or 1-3/4" (Strap Mount CRT-102) wood doors and tempered glass door applications
Polished #304 solid stainless steel components for strength and durability
Precision ball bearings and shock-absorbing compression stops for smooth, quiet door operation
Capacity: 2 hangers - 350 lbs; 3 hangers - 450 lbs; 4 hangers - 600 lbs (maximum capacity)
Alternate heavy duty and wall mount guides available
Optional wall mount bracket for glass door

CRT-101 Top Mount - Complete Kit:

For one 1-3/8" wood door:

CRT-101 top mount hangers with CRT-100 track (specify length)
CRT-111-WB wall mount brackets for round bar track (quantity is based on kit size)
Complete with 5/16”–18 socket cap screws with expansion shields
2 - CRT-101 top mount hangers complete with anti-lift and screws
1 - C-914 aluminum guide channel x length based on kit size (eg. 72” [1829mm] kit = 36” [914mm] long guide channel)
2 - CRT-110 shock absorbing stops (clamps around 1” [25.4mm] bar)
1 - CRT-100 1” round bar track x length based on kit size. (eg. 72” [1829mm] Kit for 36” [914mm] wide door)
1 - C-913 aluminum with screws

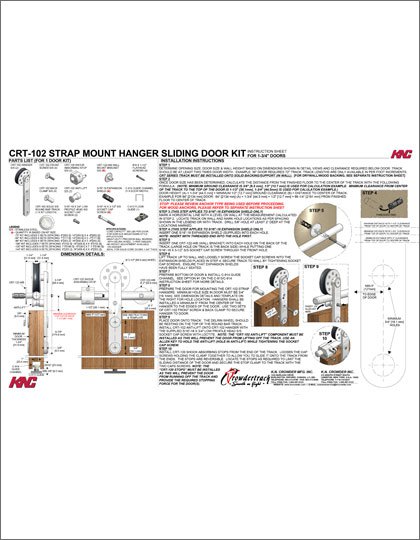

CRT-102 Strap Mount - Complete Kit:

For one 1-3/4" wood door:
Note: CRT-102 system requires two 3/4” [19.1mm] holes per hanger in order to clamp the wood door to the hanger.

CRT-102 strap mount hangers with CRT-100 track (specify length)
CRT-122-WB wall mount brackets for round bar track (quantity is based on kit size)
Complete with 5/16”-18 Socket Cap Screws and Expansion Shields
1 - C-914 aluminum guide channel x length based on kit size (eg. 72” [1829mm] Kit for 36” [914mm] wide door)
2 - CRT-120 shock absorbing stops (clamps around 1” [25.4mm] bar)
1 - C-913 floor guide complete with screws
2 - CRT-102 Face mount hangers complete with anti-lift and custom mounting screws
