LCN 2310-4310-4410 ME Series

Sentronic® ME Series Specifications

Multi-Point Hold-Open (ME)

ME series offers infinitely adjustable, multi-point hold-open function controlled by solenoid on the cylinder assembly.

Applications

• For fire and smoke barrier doors
• Integrated into larger system
• Surface and concealed mountings
• Remote control hold-open function of executive and conference area doors
• Adapter plates and other installation accessories available for unusual conditions

Features Common to Fire/Life Safety Closers

• 24V AC/DC or 120V AC input
• When current is interrupted, hold-open releases and door closes
• Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
• Separate regulation of general closing speed and latching speed
• Available in wide range of powder coated finishes to blend with door and frame
• Circuit automatically handles AC or DC input
• Can be pushed safely and easily out of hold-open
• Functions as a full rack and pinion door closer when hold-open is not engaged or current is interrupted
• Works with ionization, photoelectric and heat sensing detectors (by others)

Materials

• High strength cast iron cylinder
• Forged steel main arm
• One piece forged steel piston
• All weather fluid eliminates seasonal adjustments
• High efficiency, full complement, low friction bearings
• Tamper resistant regularing screws
• Quiet, low friction track and roller combination for all single lever arm closers

2310ME Series

The 2310ME Sentronic® is a concealed heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements. The 2310ME Series is UL & cUL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101.

Specifications

• Standard 2310ME series closer shipped with either 24V or 120V cylinder (please specify); two piece metal finish plate; standard arm, track; and wood and machine screw pack
• Sized cylinders for interior doors to 4’0”
• Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted
• Handed for right or left swinging door
• Built-in “On/Off” switch controls hold-open function
• Interfaces with fire alarm systems (consult Penner for details)
• Standard or optional custom powder coated finish
• Optional plated finish on arm, fasteners and finish plate

Mounting Details

CONCEALED MOUNTING – MAXIMUM OPENING: Templating allows 180°. Infinite hold-open points up to 160°. For interior smoke barrier and labeled fire doors.

• Butt Hinges should not exceed 5” (127 mm) in width
• Top Rail 1 3/8” (35 mm) mortise required
• 5/16” (8 mm) cutout required at top of door, stop face only
• Door Thickness 1 3/4” (44 mm) minimum
• Door Width 2’4” (711 mm) minimum
• Hollow Metal Frame requires minimum 4” (102 mm) x 4” frame
• Bypass (suffix “B80” or “B140”) eliminates hold-open function
• up to a specified point of the doors swing
• B80 cylinder from 0° to 80°
• B140 cylinder from 0° to 140°

4310ME Series

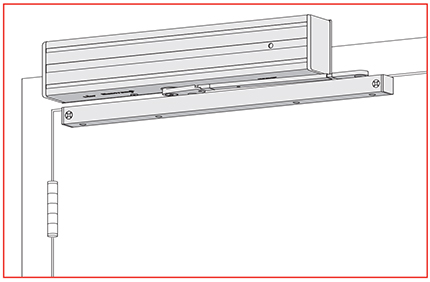

The 4310ME Sentronic® is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements. The 4310ME is UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101. An ME provides only the closer/holder function.

Specifications

• Standard 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, Swing-Free arm, track, track roller, and wood and machine screw pack
• Sized cylinders for interior doors to 4’0”
• Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged
• Handed for right or left swinging door
• Concealed or exposed electrical connections
• Built-in “On/Off” switch controls hold-open function
• Swing-Free arm allows door to be moved without door closer resistance
• Interfaces with fire alarm systems (consult Penner for details)
• Standard or optional custom powder coated finish
• Optional plated finish on cover, arm, and fasteners

Mounting Details

HINGE (PULL) SIDE MOUNTING – MAXIMUM OPENING: Templating allows 180°. Infinite hold-open points up to 160°. Optional double egress arm limited to 95°. Please note that many track style door closers are capable of allowing 180° of door swing. Be aware that the majority of track style closers are at their weakest closing force in the 180 – 130° range. Consult Penner for applications where exterior or large/heavy door must swing 180°.

• Butt Hinges should not exceed 4 1/2” (114 mm) in width
• Top Rail 1 1/16” (27 mm) minimum
• Reveal should not exceed 1/8” (3 mm) for Swing-Free arm
• Should not exceed 2 11/16” (68 mm) for double egress arm
• Head Frame requires 2” (51 mm) minimum
• Clearance of 1 1/4” (32 mm) behind door required for installation
• Bypass (suffix “B80 or B140”) eliminates hold-open function up to a specified point of the door's swing
• B80 cylinder from 0° to 80°
• B140 cylinder from 0° to 140°

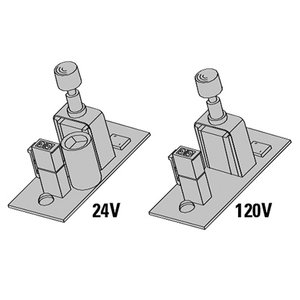

ME ELECTRICAL OPTIONS: These assemblies have a single electrical circuit with a choice of voltages. A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC. Circuitry accepts either AC or DC input. 24V holding solenoid (24) or 120V holding solenoid (120), please specify.

4410ME Series

The 4410ME Sentronic® is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Double lever arm closer is specifically designed for interior doors. Choice of finishes, cylinder functions, and installation accessories meet virtually all life safety requirements. The 4410ME Series is UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101. An ME provides only the closer/holder function.

Specifications

• Standard 4410ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, regular arm, and wood and machine screw pack
• Sized cylinders for interior doors to 4’0”
• Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted
• Handed for right or left swinging door
• Concealed or exposed electrical connections
• Built-in “On/Off” switch controls hold-open function
• Interfaces with fire alarm systems (consult Penner for details)
• Standard or optional custom powder coat finish
• Optional plated finish on cover, arm, and fasteners

TOP JAMB (PUSH SIDE) MOUNTING – MAXIMUM OPENING: Templating allows 160°, infinite hold-open points up to 150°. Optional long arm allows 180°, hold-open points up to 170°.

• Butt Hinges should not exceed 4 1/2” (114 mm) in width
• Top Rail 1 3/4” (44 mm) minimum. 3 3/4" (95mm) minimum with flush ceiling
• Reveal 3 7/8” (98 mm) maximum regular or long arm. For reveals greater than 3 7/8” consult Penner
• Head Frame requires 1 1/2" (38 mm) minimum. 2" (51 mm) minimum with flush ceiling
• Flush Ceiling requires PLATE, 4410ME-18G substituted for standard mounting plate
• Bypass (suffix “B80 or B140”) eliminates hold-open function up to a specified point of the door's swing (B80 cylinder from 0° to 80°; B140 cylinder from 0° to 140°)

ME ELECTRICAL OPTIONS: These assemblies have a single electrical circuit with a choice of voltages. A separate TRANSFORMER, 4040SE-3210, can be used to reduce line voltage to 24V AC. Circuitry accepts either AC or DC input. 24V holding solenoid (24) or 120V holding solenoid (120), please specify.

For additional information, see Downloads tab.
