LCN 4110 Series

Specifications

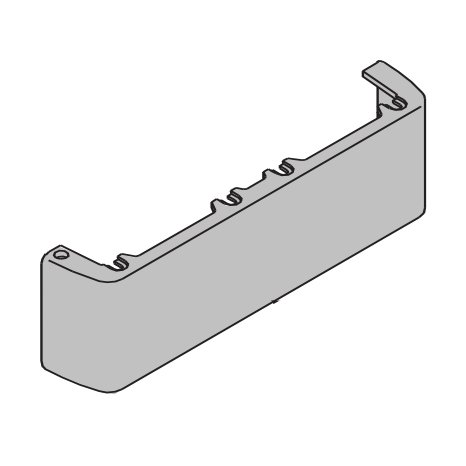

• Standard 4110 series closer is shipped with EXTRA DUTY arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws.

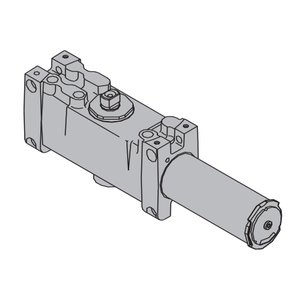

• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts parallel arm, specify right or left swinging door.
• 4111 cylinder meets ADA requirements – closer available with less than 5 lbs opening force on 36" door.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4110 Series is UL and cUL listed for self-closing doors without hold-open.
• Tested and certified under ANSI Standard A156.4, grade 1.

Mounting Details

PARALLEL ARM (PUSH SIDE):  Maximum opening EDA or Fusible Link arm can be templated for 100°: A = 5 15/16” (151 mm); B = 7-1/4” (184 mm). Maximum opening to 140°: A = 4-7/16” (113 mm); B = 5 3/4” (146 mm). Maximum opening to 180°: A = 2-15/16” (75 mm); B = 4-1/4” (108 mm).

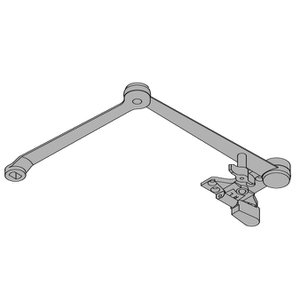

Hold-open points up to maximum opening with HEDA or Fusible Link arm. CUSH arm can be templated for maximum opening at 85°: A = 8-5/16” (211 mm) B = 9-5/8” (244 mm). Maximum opening to 90°: A = 7-11/16” (195 mm); B = 9” (229 mm). Maximum opening to 100°: A = 6-7/16” (164 mm);
B = 7-3/4” (197 mm). Maximum opening to 110°: A = 5-9/16” (141 mm);
B = 6-7/8” (175 mm). Hold-open point at maximum opening with HCUSH arm. Spring Cush hold-open points are approximately 5° less than templated stop point.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used.
• Clearance for EDA, or CUSH shoe is 5-1/2” (140 mm) from door face.
• Top Rail less than 5-1/8” (130 mm) measured from stop requires PLATE, 4110-18.
• Plate requires 2” (51 mm) minimum measured from the stop.
• Stop Width minimum 1” (25 mm).
• Head Frame flush or rabetted requires 4110-145 arm or PA SHOE ADAPTER, 4110-418, Use CUSH FLUSH PANEL ADAPTER, 4110-419 with CUSH arms.
• Reveal less than 2-3/4” (70 mm), use CUSH SHOE SUPPORT, 4110-30 with CUSH arms.
• Blade Stop Spacer, 4110-61 required to clear 1/2” (13 mm) blade stop.
• Cush Arm requires CUSH SHOE SUPPORT, 4110-30 for fifth screw anchorage with CUSH arms.
• Delayed Action Add suffix “DEL” to selected cylinder (eg. 4114 DEL). Not available with 4115 or 4116 cylinder. Delays closing from maximum opening to approximately 70°. Delay time adjustable up to approximately one minute.
• Advanced Variable Backcheck cylinder starts backcheck at approximately 45° instead of the normal 75°. Add suffix “AVB” to selected cylinder. When combined with Delayed Action consult factory for special template.

LCN FInishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
