Medium Duty C-400

Medium Duty Single Track

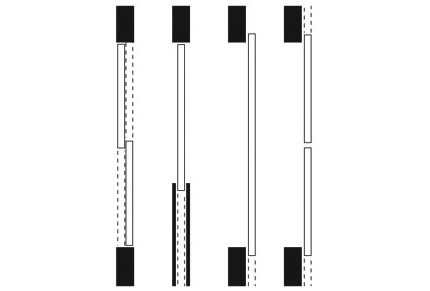

For Single & Bi-Parting, By-Passing,
Pocket or Wall Mounted Doors

C-400 Series (Medium to Light Duty):
3/4" to 1-3/4" Door Thickness

This series provides the ultimate in smooth sliding door track performance. Eight ball bearing, nylon tire wheels per door.

Features vertical adjustment by threaded door top plate and locknut. Ideal for mirror covered and solid core doors.

Designs
Specifications
Finishes
Options
Downloads

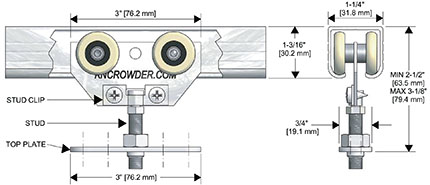

C-400 hanger kit

Top mounting for medium loads

8 wheels per hanger

125 lbs. load capacity

Crowder C-Series Single Track Systems Specifications

COMPLETE KITS AVAILABLE FOR 24” TO 72” WIDE DOORS. FOR BY-PASSING DOOR APPLICATIONS, USE TWO COMPLETE KITS.

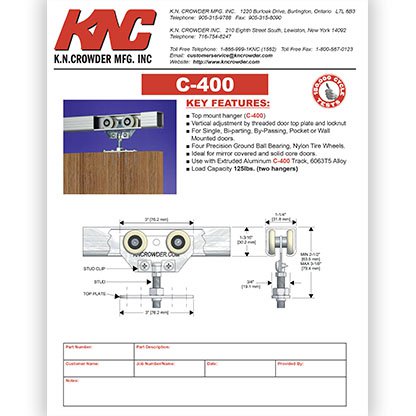

C-400 Top Mount Hanger with C-400 Sliding Track

This series provides the ultimate in smooth sliding door track performance. Eight ball bearing, nylon tire wheels per door. Features vertical adjustment by threaded door top plate and locknut. Ideal for mirror covered and solid core doors. Can be mounted side by side for by-pass applications. Other special hangers available for C-400 track – contact Penner for details.

Residential, Office, Institutional, Hotel Applications
Light and Medium Duty
3.4" to 1-3/4" Door Thickness
125 LBS (2 Hangers)
Adjustable Nylon Wheel Hanger

1 - C-400 TRACK LENGTH: 2 X DOOR WIDTH
(EXAMPLE: 36” DOOR = 72” TRACK)

2 - C-400 HANGERS COMPLETE WITH SCREWS

2 - C-1202 FLOOR GUIDES COMPLETE WITH SCREWS

2 - CDC-400 IN-TRACK STOP & CATCH COMPLETE WITH SCREWS

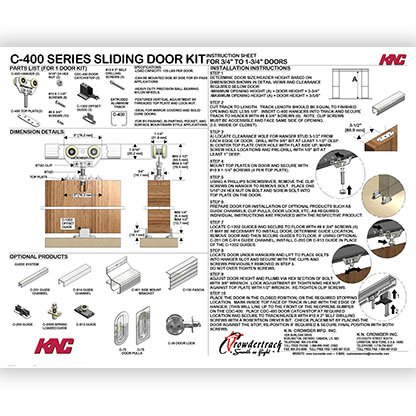

See Downloads tab for additional information and installation instructions.
