Medium Duty C-538
Medium to Light Duty Bypass Track
For Plywood, Special Material,
Solid Core & Mirror Covered Doors
C-538 Series (Medium to Light Duty):
1-3/8" Door Thickness
This series provides the ultimate in smooth performance. Eight precision ball bearing, nylon tire wheels per door. Features vertical adjustment by threaded door top plate and locknut. Ideal for mirror covered and solid core doors.
- Designs

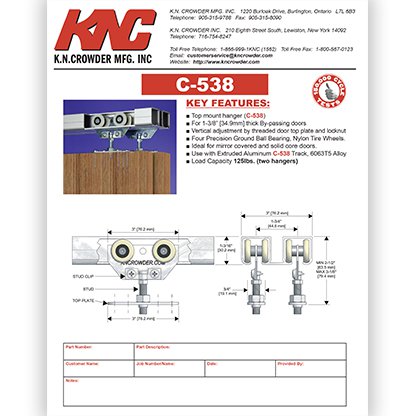

- Specifications
- Finishes
- Options

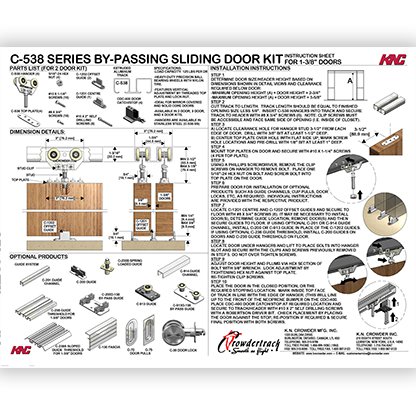

- Downloads

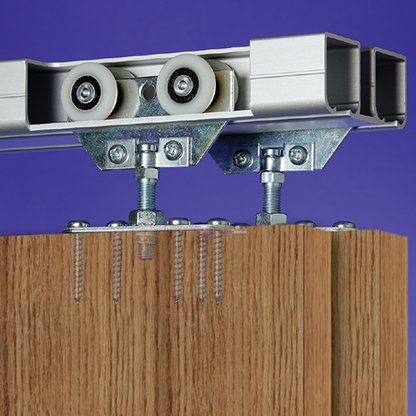

C-538 hanger kit
Close
C-538 hanger kit
Top mounting for medium to light loads
1-3/8" door thickness
4 wheels per hanger
125 lbs. load capacity
1-3/8" door thickness
4 wheels per hanger
125 lbs. load capacity
Crowder C-Series Dual Track Bypass Systems

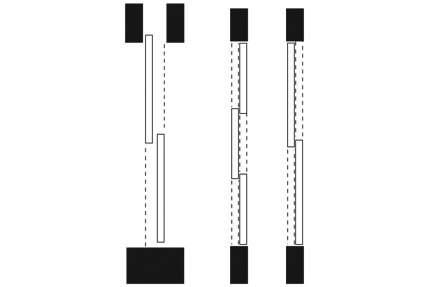

Dual Bypass Door Configuration Options

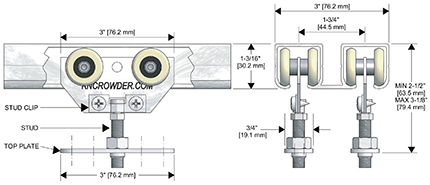

C-538 Top Mount Hanger
(Medium to Light Duty)

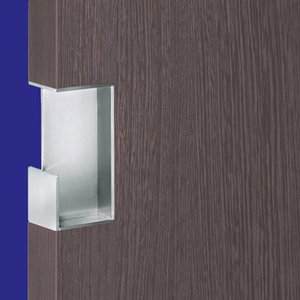

C-23 - door pull
Close
C-23 - door pull
Wood door pull for 1-3/8” thick doors
2" wide x 4" high x door thickness
Satin stainless steel finish only
2" wide x 4" high x door thickness
Satin stainless steel finish only
C-25 - door pull
Close
C-25 - door pull
Wood door pull for 1-3/4” thick doors
2" wide x 4" high x door thickness
Satin stainless steel finish only
2" wide x 4" high x door thickness
Satin stainless steel finish only
C-70 - flush pull
Close
C-70 - flush pull
Flush door pull, oval face
2" wide x 4-1/8" high x 1/2" depth
Specify finish: Bright Brass, Bright Chrome, Dull Chrome
2" wide x 4-1/8" high x 1/2" depth
Specify finish: Bright Brass, Bright Chrome, Dull Chrome
C-75 - flush pull
Close
C-75 - flush pull
Flush door pull, rectangular face
2" wide x 4-1/8" high x 1/2" depth
Specify finish: Bright Brass, Bright Chrome, Dull Chrome
2" wide x 4-1/8" high x 1/2" depth
Specify finish: Bright Brass, Bright Chrome, Dull Chrome

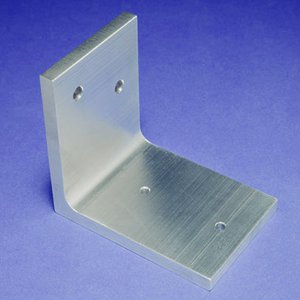

CDSM-1 - bracket
Close
CDSM-1 - bracket
Custom side mount bracket
3/8" or 1/2" aluminum angle
For single, double & triple track systems
3/8" or 1/2" aluminum angle
For single, double & triple track systems

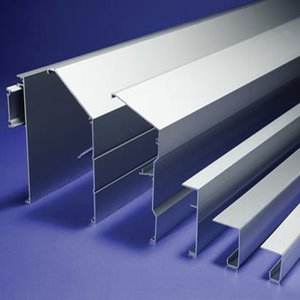

Custom plain fascia
Close
Custom plain fascia
C-130, C-140 - 1" extruded aluminum
C-150, C-160 - 1-3/8" formed aluminum
Max. length 8/0 (96")
C-150, C-160 - 1-3/8" formed aluminum
Max. length 8/0 (96")

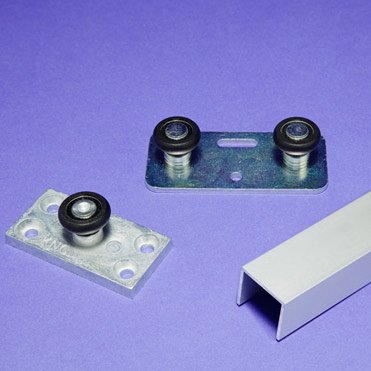

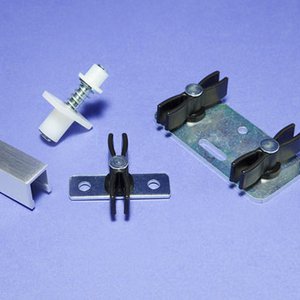

C-200 Series - guides
Close
C-200 Series - guides
C-200 Guide
C-200D-138 Double Roller Guide
C-200B Spring Loaded Guide & C-201 Guide Channel
C-200D-138 Double Roller Guide
C-200B Spring Loaded Guide & C-201 Guide Channel

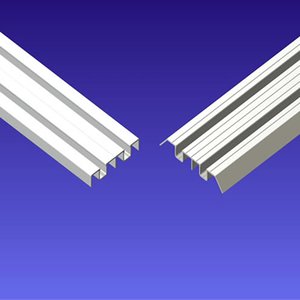

C-238 or C-238S - guide
Close
C-238 or C-238S - guide
Guide threshold or sloping guide threshold
For 1-3/8" 2-door bypass
3-door or 4-door applications available
For 1-3/8" 2-door bypass
3-door or 4-door applications available
