NeoMitre Collection

Rockwood mitre pulls are fabricated by a precise process that accomplishes the joint without any sign of welding residue.

The optional "GripZone" feature of the NeoMitre Collection adds appeal to the design.

Beyond providing an attractive contrast,
the satin finish contact area conceals
small scratches caused by routine use.

Available in three diameters and
custom lengths.

Designs
Specifications
Finishes
Options
Downloads

RM7300 - straight pull

1" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

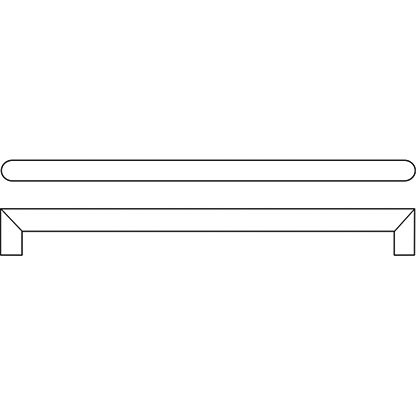

RM7302 - push bar

1" diameter

Specify CTC

2-1/2" projection

RM7310 - straight pull

1-1/4" diameter

11", 16", 20", up to 36" CTC

3" projection

RM7312 - push bar

1-1/4" diameter

Specify CTC

2-3/4" projection

RM7320 - straight pull

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

RM7322 - push bar

1-1/2" diameter

Specify CTC

3" projection

RM7330 - offset pull

1" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM7340 - offset pull

1-1/4" diameter

11", 16", 20", up to 36" CTC

3" projection

RM7350 - offset pull

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

RM7400 - straight pull, GripZone

1" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM7402 - push bar, GripZone

1" diameter

Specify CTC

2-1/2" projection

RM7410 - straight pull, GripZone

1-1/4" diameter

11", 16", 20", up to 36" CTC

3" projection

RM7412 - push bar, GripZone

1-1/4" diameter

Specify CTC

2-3/4" projection

RM7420 - straight pull, GripZone

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

RM7422 - push bar, GripZone

1-1/2" diameter

Specify CTC

3" projection

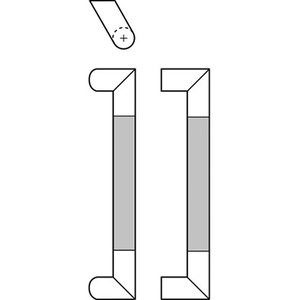

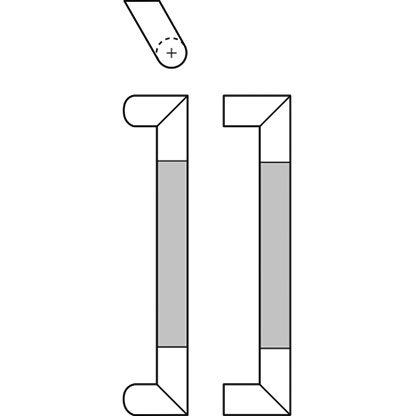

RM7430 - offset pull, GripZone

1" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM7440 - offset pull, GripZone

1-1/4" diameter

11", 16", 20", up to 36" CTC

3" projection

RM7450 - offset pull, GripZone

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

NeoMitre Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the NeoMitre Collection is stainless steel.

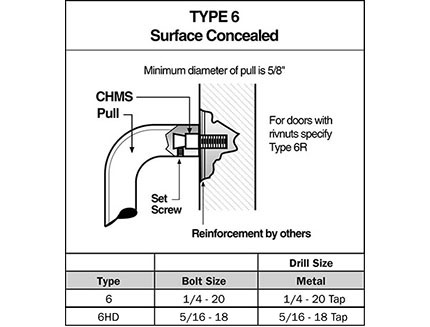

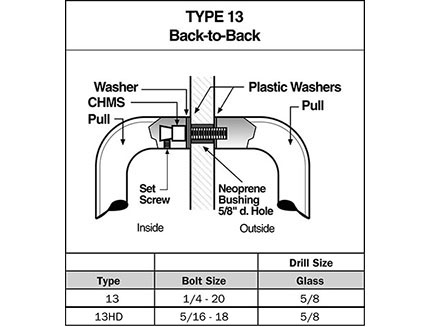

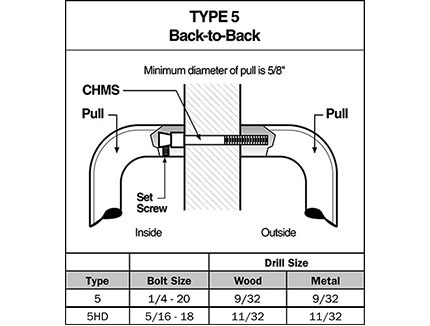

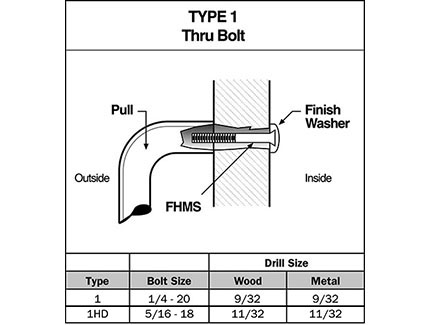

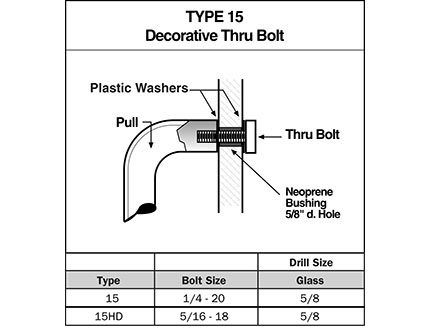

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM7302-2).

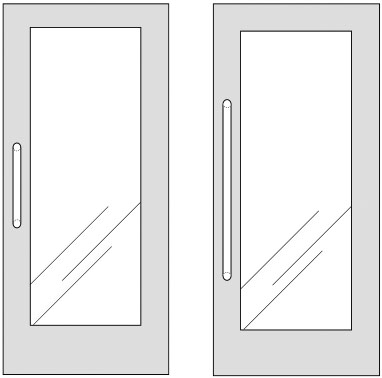

Application Suggestion

Straight Pull (without GripZone)

RM7300 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7310 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7320 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

Straight Pull (with GripZone)

RM7400 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7410 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7420 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

Offset Pull (without GripZone)

RM7330 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7340 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7350 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

Offset Pull (with GripZone)

RM7430 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7440 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7450 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

Push Bar (without GripZone)

RM7302 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7312 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7322 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

Push Bar (with GripZone)

RM7402 Specifications:

Base Metal: Stainless Steel
Diameter: 1"
Lengths: 8", 11", 16"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

RM7412 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finish: US32 / BHMA 629

RM7422 Specifications:

Base Metal: Stainless Steel
Diameter: 1-1/2"
Lengths: 11", 16", 20"; specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finish: US32 / BHMA 629

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
