PlanTek Collection

The PlanTek Collection features architectural door pulls in brass, bronze, and stainless steel. This classic style pull showcases clean lines and a compact profile.

It coordinates with round or square trim, and suites with the Corbin Russwin 102 lever and the Sargent MD lever.

PlanTek door pulls offer a range of sizes in flat and rectangular bar stock or castings:

Pulls made from bar stock are available in any length to order
Cast pulls feature a contour area underneath the grip for a comfortable ergonomic feel

A large variety of bar, rod, and tubing sizes are stocked so alternative designs may be readily made.

Designs
Specifications
Finishes
Downloads

RM5200 - straight cast pull

1" grip

7", 12" CTC in stock

2" projection

RM5202 - straight cast pull

1-1/4" grip

12" CTC in stock

2" projection

RM5204 - offset cast pull

1" grip

8", 12" CTC in stock

2" projection

RM5210 - radius end pull

1/2" x 1-1/4" grip

10", 12" CTC in stock

2-1/2" projection

RM5212 - push bar, radius end

1/2" x 1-1/4" grip

Specify CTC length

2" projection

RM5220 - radius end pull

3/4" x 1-1/2" grip

12", 18" CTC in stock

2-1/2" projection

RM5222 - push bar, radius end

3/4" x 1-1/2" grip

Specify CTC length

2" projection

RM5230 - square end pull

1/2" x 1-1/4" grip

10", 12" CTC in stock

2-1/2" projection

RM5232 - push bar, square end

1/2" x 1-1/4" grip

Specify CTC length

2" projection

RM5240 - square end pull

3/4" x 1-1/2" grip

12", 18" CTC in stock

2-1/2" projection

RM5242 - push bar, square end

3/4" x 1-1/2" grip

Specify CTC length

2" projection

RM5250 - bent end pull

1/2" x 1-1/4" grip

10", 12" CTC in stock

2-1/4" projection

RM5260 - bent end pull

3/4" x 1-1/2" grip

12", 18" CTC in stock

2-1/4" projection

RM5270 - straight cast pull

1/2" x 3/4" grip

12", up to 48" CTC in stock

RM5280 - straight cast pull

1/2" x 1/2" grip

9" CTC in stock

1-1/2" projection

PlanTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the PlanTek Collection are brass, bronze, or stainless steel.

Rockwood Door Pulls – Mounting Types

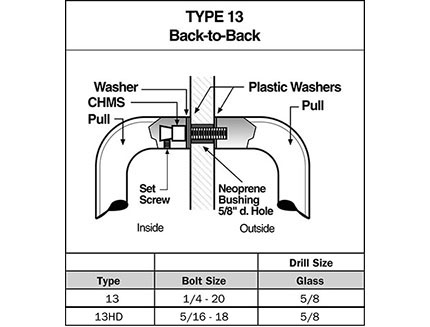

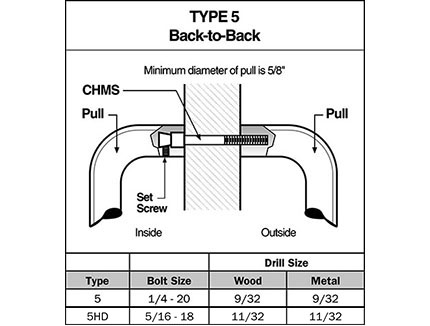

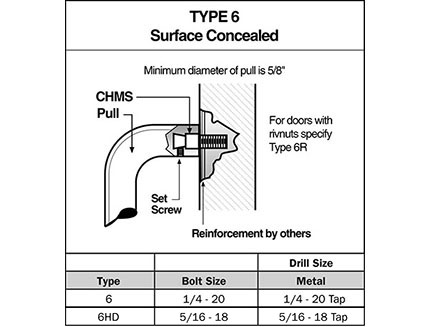

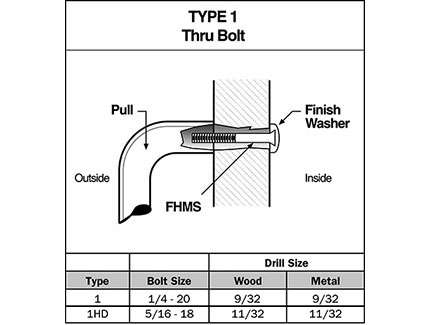

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Straight Cast Pulls

RM5200 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Width: 1"
Lengths: 7", 12" CTC available (center-to-center measurement between mounts)
Projection: 2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5202 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Width: 1-1/4"
Length: 12" CTC available (center-to-center measurement between mounts)
Projection: 2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

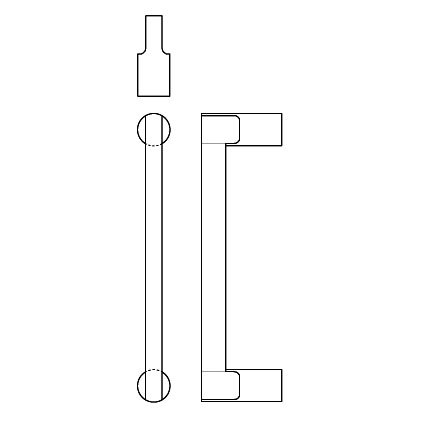

RM5270 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 3/4"
Length: 12", up to 48" CTC available (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM5280 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1/2"
Length: 9" CTC available (center-to-center measurement between mounts)
Projection: 1-1/2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Offset Cast Pulls

RM5204 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Width: 1"
Length: 8", 12" CTC available (center-to-center measurement between mounts)
Projection: 2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Radius End Pulls

RM5210 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: 10", 12" CTC available (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5220 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 3/4" x 1-1/2"
Length: 12", 18" CTC available (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US26D / BHMA 626, US26 / BHMA 625, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Square End Pulls

RM5230 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: 10", 12" CTC available (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5240 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 3/4" x 1-1/2"
Length: 12", 18" CTC available (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Bent End Pulls

RM5250 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: 10", 12" CTC available (center-to-center measurement between mounts)
Projection: 2-1/4"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5260 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 3/4" x 1-1/2"
Length: 12", 18" CTC available (center-to-center measurement between mounts)
Projection: 2-1/4"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Push Bars – Radius Ends

RM5212 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5222 Specifications (HD Mounting):

Base Metals: Brass, Bronze, or Stainless Steel
Material: 3/4" x 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

Push Bars – Square Ends

RM5232 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605

RM5242 Specifications:

Base Metals: Brass, Bronze, or Stainless Steel
Material: 1/2" x 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2"
Finishes: US32D / BHMA 630, US32 / BHMA 629, US10B / BHMA 613, US10 / BHMA 612, US4 / BHMA 606, US3 / BHMA 605
