Round Bar Extra HD

K.N. Crowder has produced precision high quality track for over 65 years.

Extensive cycle testing (one cycle = one opening and closing of door) ensures long lasting product performance. Crowder track hardware has been quality tested for 150,000 cycles.

These extra heavy duty barn track systems are engineered for maximum glide and minimum noise, for luxury design applications.

Designs
Specifications
Options
Downloads

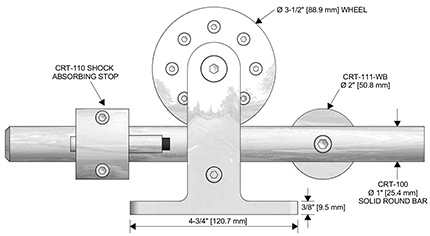

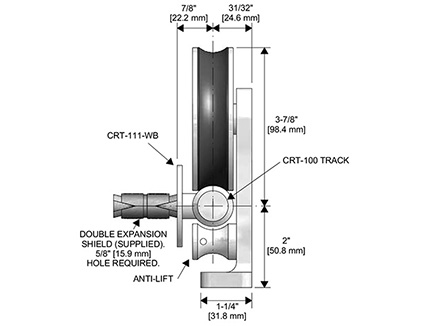

CRT-101 - top mount

Complete kit for 1-3/8" wood door

Specify CRT-100 track length

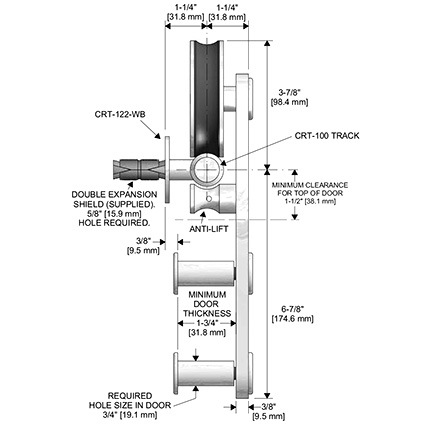

CRT-102 - strap mount

Complete kit for 1-3/4" wood door

Specify CRT-100 track length

Door slab requires two 3/4” holes per hanger

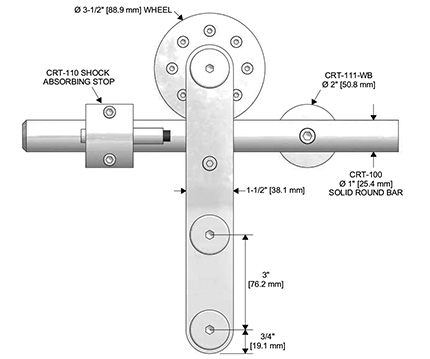

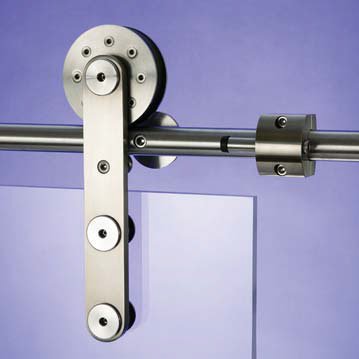

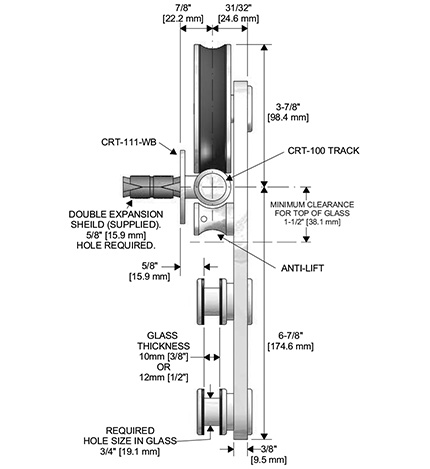

CRT-103 - glass mount

Complete kit for 3/8" to 1/2" glass door

Specify CRT-100 track length

Glass door requires two 3/4” holes per hanger

K.N. Crowder Round Barn Track Specifications

CRT-100 Series with Solid Round Bar Track

For wood and tempered glass doors

Prominent and exposed hardware for surface mounted barn door style applications, featuring large 3-1/2” [88.9mm] diameter delrin wheels with polished stainless steel side plates. Delrin has excellent strength and wear resistance while providing minimal friction. Combined with precision ball bearings, these wheels provide extremely smooth and silent door operation. Precision machined and polished Solid 304 Satin Stainless Steel round bar track and hardware components combined for state-of-the-art appearance.

Round Bar Track Load Capacity:

350 lbs. (two hangers)
450 lbs. (three hangers)
600 lbs. (four hangers)
Alternate heavy-duty and wall mount guides

CRT-100 Track: Polished 304 Satin Stainless Steel 1” [25.4mm] Solid Round Bar, weighing 2.7 pounds per foot.

CRT-101 Top Mount - Complete Kit: (for one 1-3/8" wood door)

CRT-101 top mount hangers with CRT-100 track (specify length)
CRT-111-WB wall mount brackets for round bar track (quantity is based on kit size)
Complete with 5/16”–18 socket cap screws with expansion shields
2 - CRT-101 top mount hangers complete with anti-lift and screws
1 - C-914 aluminum guide channel x length based on kit size (eg. 72” [1829mm] kit = 36” [914mm] long guide channel)
2 - CRT-110 shock absorbing stops (clamps around 1” [25.4mm] bar)
1 - CRT-100 1” round bar track x length based on kit size. (eg. 72” [1829mm] Kit for 36” [914mm] wide door)
1 - C-913 aluminum with screws

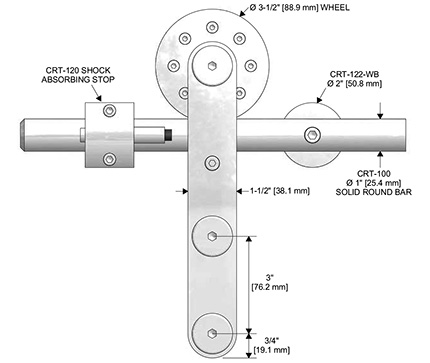

CRT-102 Strap Mount - Complete Kit: (for one 1-3/4" wood door)

Note: CRT-102 system requires two 3/4” [19.1mm] holes per hanger in order to clamp the wood door to the hanger.

CRT-102 strap mount hangers with CRT-100 track (specify length)
CRT-122-WB wall mount brackets for round bar track (quantity is based on kit size)
Complete with 5/16”-18 Socket Cap Screws and Expansion Shields
1 - C-914 aluminum guide channel x length based on kit size (eg. 72” [1829mm] Kit for 36” [914mm] wide door)
2 - CRT-120 shock absorbing stops (clamps around 1” [25.4mm] bar)
1 - C-913 floor guide complete with screws
2 - CRT-102 Face mount hangers complete with anti-lift and custom mounting screws

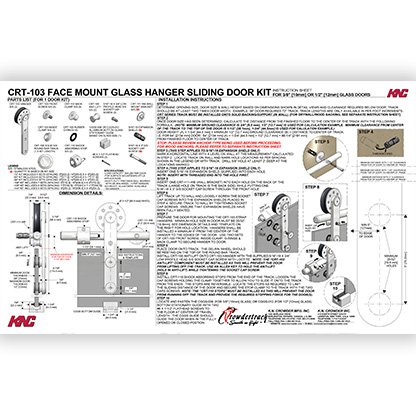

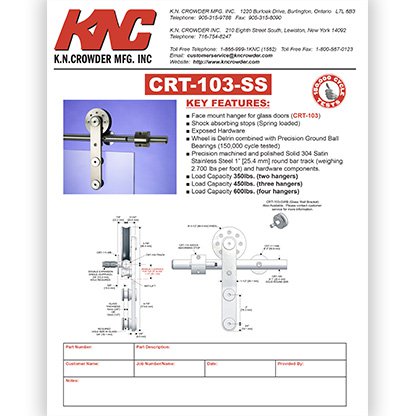

CRT-103 Glass Mount - Complete Kit: (for one 3/8" or 1/2" glass door)

Note: CRT-103 system requires two 3/4” [19.1mm] holes per hanger in order to clamp the glass door to the hanger.

CRT-111-WB wall mount brackets for round bar track (quantity is based on kit size)
Complete with 5/16”-18 Socket Cap Screws and Expansion Shields
1 - CGGS-038 (for 3/8” [10mm]) or CGGS-012 (for 1/2” [12mm]) Aluminum Bottom Glass Stationary Guide
2 - CRT-110 shock absorbing stops (clamps around 1” [25.4mm] bar)
2 - CRT-103 Face mount glass hangers (specify glass thickness) complete with anti-lift and custom mounting screws
1 - CRT-100 1” round bar track x length based on kit size (eg. 72” [1829mm] Kit for 36” [914mm] wide door)
