Sargent 80 Series

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation.

Maintenance-free design
Easy installation, quick retrofit
Made of the finest component materials

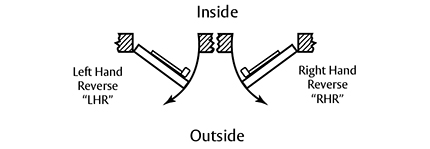

Non-handed available
Multiple through-bolt options
Keying accomplished without removing device from door

Functions
Trim
Designs
Specifications
Finishes
Options

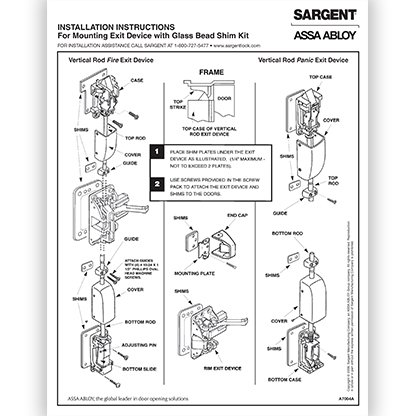

Downloads

04 - night latch

Key retracts latchbolt

#41 cylinder supplied

06 - locked trim

Key unlocks trim;
trim retracts

Latch/trim relocks when key is removed

#41 cylinder supplied

10 - no cylinder

No outside operation

(No cylinder)

10 - no cylinder, pull only

No outside operation
(no cylinder)

ET Control used as Pull Only

13 - locked trim

Key outside unlocks/locks trim

#41 cylinder supplied

15 - passage only

(No cylinder)

16 - freewheeling lever

Key outside retracts latchbolt

Key inside locks or unlocks lever

28 - passage only

(No cylinder)

40 - dummy trim

Freewheeling trim

No outside operation

(No cylinder)

43 - keyed trim

Freewheeling trim

Key outside unlocks/locks trim

44 - keyed trim

Freewheeling trim

Key retracts latch

46 - keyed trim

Freewheeling trim

Key unlocks trim

Trim retracts latch; relocks when key is removed

62 - locked trim

Key unlocks trim; trim retracts latch/trim

Relocks when key is removed

63 - locked trim

Key outside unlocks/locks trim

66 - keyed latch

Key outside retracts latch

Key inside unlocks/locks O/S trim

70 - electrified lock

Electrified Mortise Lock

Power off, unlocks thumbpiece

Key retracts latch

73 - fail safe

Electrified ET Trim

Fail safe, power off, unlocks lever

(No cylinder)

74 - fail secure

Electrified ET Trim

Fail Secure, power off, locks lever

(No cylinder)

75 - fail safe

Electrified ET Trim - Fail Safe

Power off, unlocks lever, key retracts latch

76 - fail secure

Electrified ET Trim - Fail Secure

Power off, locks lever, key retracts latch

862 - pull

1" diameter; 4" x 10"

88 - lever & rose

Non-handed; through-
bolted to chassis

Specify L, B, J or P lever

Shown: LB Trim
(L Rose, B Lever)

Auxiliary Control

(306/313 shown)

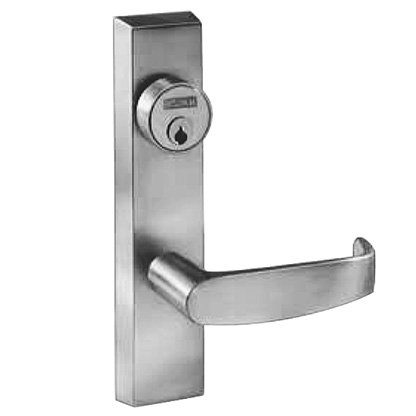

ET Lever Control

Specify lever

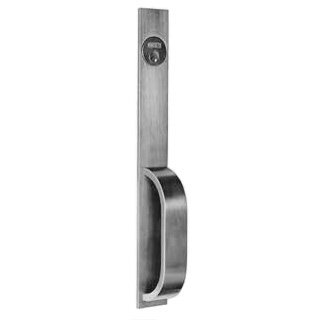

FLL - pull

(04 function shown)

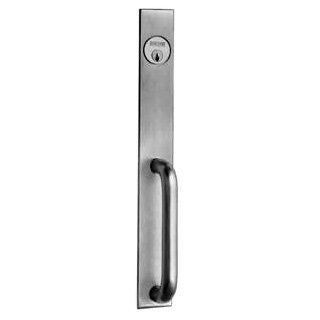

FLW - pull

(10 function shown)

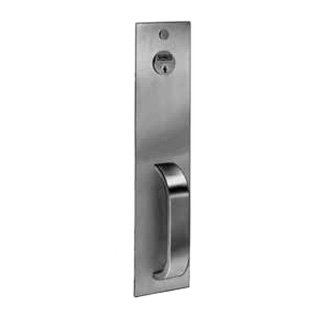

MAL/MSL - pull

(63/66 functions shown)

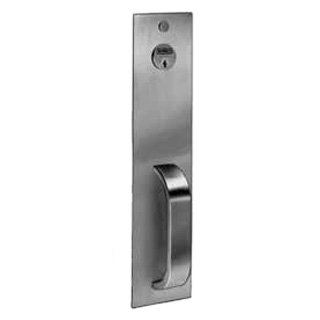

PTB/PSB - pull

(04 function shown)

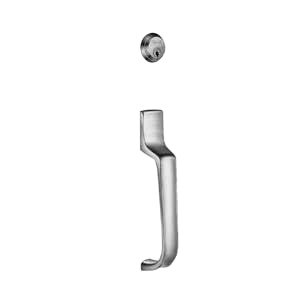

STS - pull

(04 function shown)

Studio Collection - levers

Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs

(Designer Hardware > Architectural Levers > Sargent)

Coastal Series - levers

Choose from Coronado, Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)

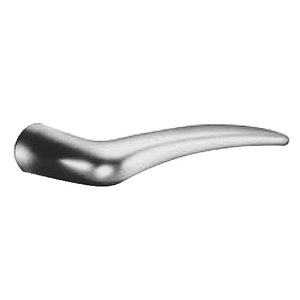

A - lever

(Handed)

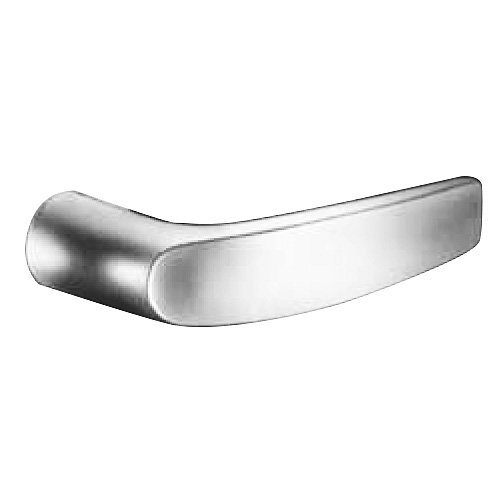

B - lever

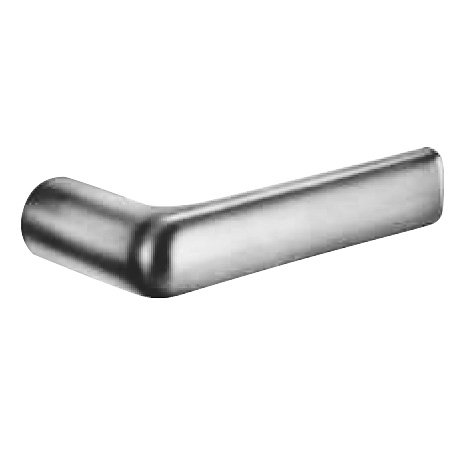

E - lever

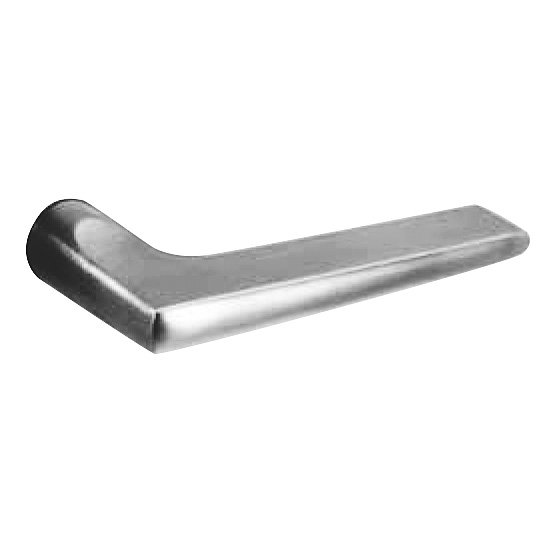

F - lever

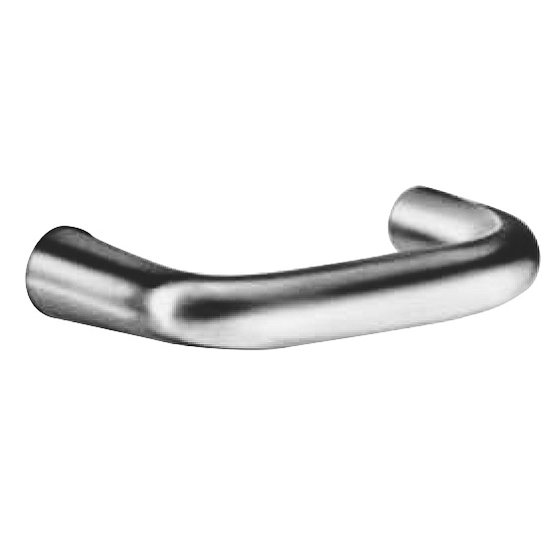

J - lever

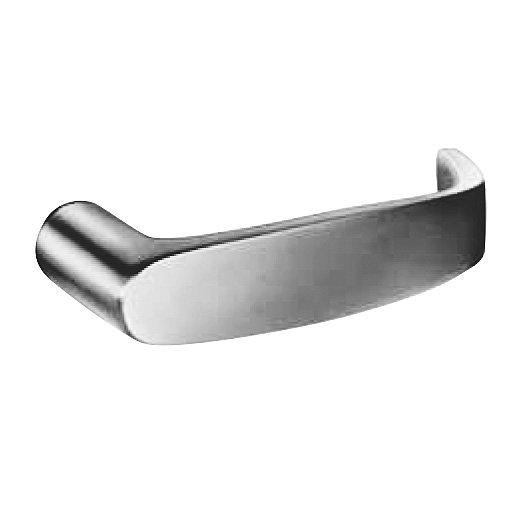

L - lever

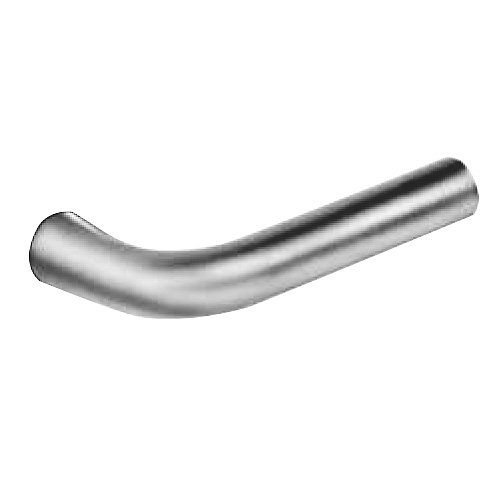

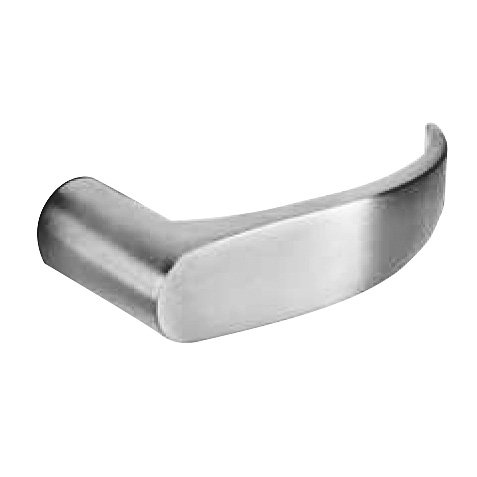

P - lever

W - lever

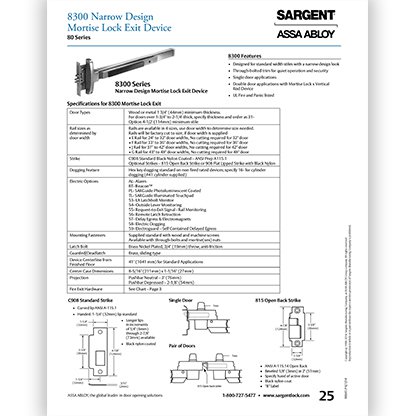

8300 Series

The SARGENT 8300 Series Exit Device is a narrow design, push rail style, mortise lock exit device.

8500 Series

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

8700 Series

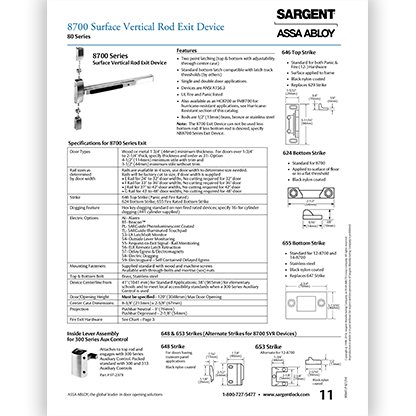

The SARGENT 8700 Surface Vertical Rod Exit Device has two point latching (top and bottom of the door) and is adjustable through the center case.

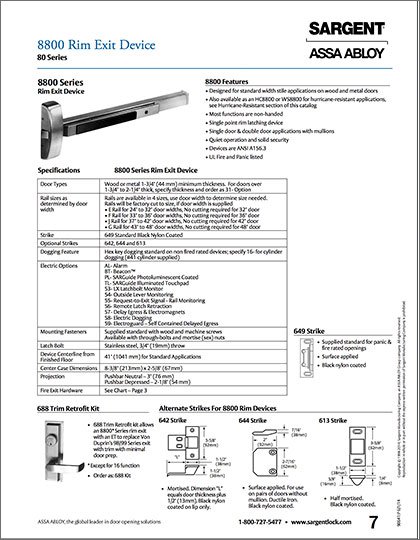

8800 Series

The 8800 series is designed for standard width stile applications on wood and metal doors. This reversible rim exit device sets the industry standard for durability and reliability.

8888 Series

The 8888 is designed for standard width stile applications on wood and metal doors, and has 7 functions determined by the trim function.

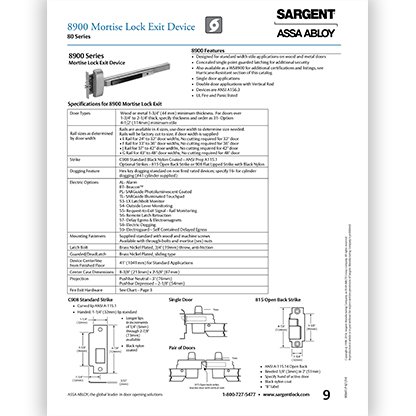

8900 Series

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

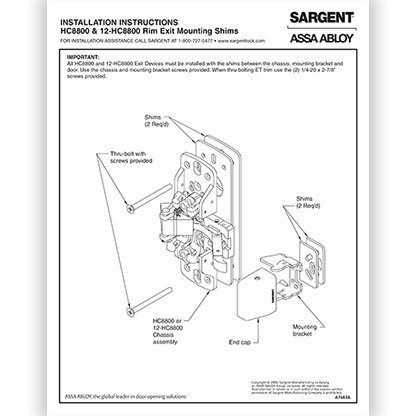

HC8800 Series

The HC8800 device is designed for standard width stile applications on metal doors

Sargent 80 Series Mortise Lock Exit Devices

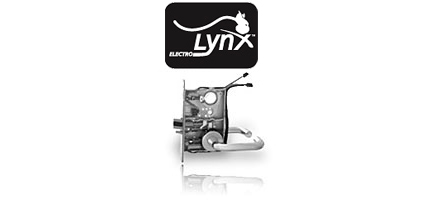

ElectroLynx™: The New Standard in Door Wiring

The plug-in connector system that allows installers to quickly and easily connect SARGENT electromechanical locks with CECO and Graham doors and frames, McKINNEY hinges and other ASSA ABLOY products.

The plug-in universal connectors and easy, color-coded wire system eliminate matching wires. Wiring is a snap and completely fool-proof. This pre-wired opening system – standard on most SARGENT electromechanical products – features Molex® connectors that snap together, attaching the door, hinge and lock to the building’s power source. Whether you use the system now, or plan to upgrade in the future, changing the components is as easy as plugging a phone into a wall jack.

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

Supresses microbes
Long lasting
Non-toxic
Available on most SARGENT product lines
Lasts for the life of the hardware
State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

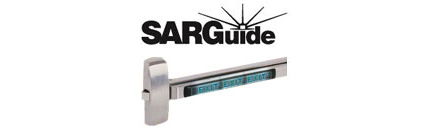

SARGuide™

The SARGuide™ exit device contains an illuminated touchpad to enhance the visibility of exit locations in dark or smoke-filled passages. As a supplement to existing codes for egress lighting, SARGuide effectively improves the safety of any public building.

Highly visible in smoke and other low visibility conditions
Three to five times greater visibility than any other light source
Can be easily spotted from considerable distances
Green/blue color conducive to night vision
No filaments to break or fail
Immune to vibration or shock
Extremely durable construction – continues to operate even if pierced
Intuitive operation – integral "EXIT" signage guides users directly to the means of egress

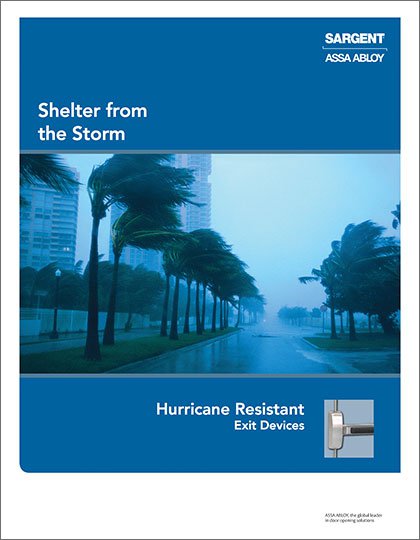

Tornado and Hurricane Resistant Products

SARGENT® leads the industry in developing products that withstand vigorous hurricane and tornado codes and standards. We have a broad selection of products designed to meet the needs in the most vulnerable locations in the country.

SARGENT products are tested to meet these codes and standards: FEMA (Federal Emergency Management Agency), NSSA (National Storm Shelter Association), IBC (International Building Code), FBC (Florida Building Code), including the Florida HVHZ (High Velocity Hurricane Zone), and ANSI A250.13.

Sargent 8300 Narrow Design Mortise Lock Exit Device

Features

Designed for standard width stiles with a narrow design look
Through-bolted trim for quiet operation and security
Single door applications
Double door application with Mortise Lock & Vertical Rod Device
UL Fire and Panic Listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
  No cutting required for 32" door;
- F Rail - 33" to 36" (84cm to 91cm)
  No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm)
  No cutting required for 42" door;
- G Rail - 43" to 48" (110cm to 122cm)
  No cutting required for 48" door
Strike: C908 Standard Black Nylon Coated - ANSI Prep A115.1
Optional Strikes: 815 Open Back Strike
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Electric Options: AL- alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated touchpad, 53-LX Latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit- signal-rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric Dogging, 59-Electroguard-self contained delayed egress
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt: Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
Guarded/Dead Latch: Brass, sliding type
Device Centerline from Finished Floor: 41” (1041 mm)
Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
23 - Flat 4-7/8" ANSI Strike
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
53 - Latchbolt Monitor Switch
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
59 - Electroguard Delayed Egress Device
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
AL - Alarmed exit
BC59 - Boco Code (NY) - Electroguard
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TL - SARGuide™ - Illuminated Touchpad

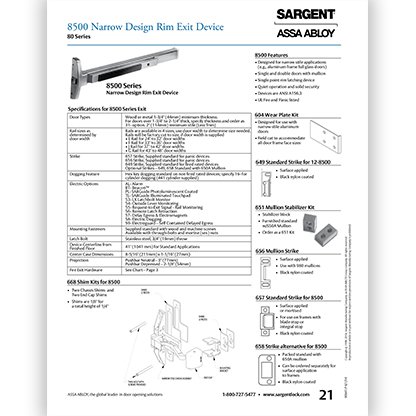

Sargent 8500 Narrow Design Rim Exit Device

Features

Designed for narrow stile applications such as aluminum frame full glass doors
Single and double doors with mullion
Single point rim latching device
Quiet operation and solid security
Devices are ANSI A156.3 - 2001 Grade 1 Panic listed
UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
  No cutting required for 32" door;
- F Rail - 33" to 36" (84cm to 91cm)
  No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm)
  No cutting required for 42" door;
- G Rail - 43" to 48" (110cm to 122cm)
  No cutting required for 48" door
Strike: 657 Standard Black Nylon Coated
Optional Strikes: 649, 658 Standard with 650A Mullion
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Electric Options: AL-alarm, PL-SARGuide Photoluminescent Coated, BT-Beacon, TL- SARGuide Illuminated Touchpad, 53-LX Latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit Signal-Rail Monitoring, 56-ELR Remote Latch Retraction, 57-Delay Egress & Electromagnets, 58-Electric Dogging, 59-Electroguard-Self Contained Delayed Egress
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt: Stainless steel, 3/4" (19mm) throw
Device Centerline from Finished Floor: 41” (1041 mm)
Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
53 - Latchbolt Monitor Switch
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
59 - Electroguard Delayed Egress Device
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
AL - Alarmed exit
BC59 - Boco Code (NY) - Electroguard
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
GL - Guarded latchbolt
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TL - SARGuide™ - Illuminated Touchpad

Sargent 8700 Surface Vertical Rod Exit Device

Features

Two point latching (top and bottom of door)
Top & bottom latchbolt projection adjustable through center case
Standard bottom latch compatible with latch track thresholds (by others)
Single and double door applications
Devices exceed ANSI A156.3 - 2001 Grade 1; tested to over 16 million cycles
UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Rods are 1/2" (13mm) brass, bronze or stainless steel

Specifications

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
  No cutting required for 32" door;
- F Rail - 33" to 36" (84cm to 91cm)
  No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm)
  No cutting required for 42" door;
- G Rail - 43" to 48" (110cm to 122cm)
  No cutting required for 48" door
Strikes: 646 Top Strike (Panic and Fire Rated), 624 Bottom Strike; 655 Fire Rated Bottom Strike
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Top and bottom bolt: Brass, Stainless Steel
Device Centerline from Finished Floor: 41” (1041 mm) for standard applications: 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 series auxiliary control is used
Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
Door opening/height: must be specified (102" max door opening)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
1170 - Small Format interchangeable disposable construction core - to accept 7 pin XC permanent core
12 - UL Fire Label
14 - Sliding Bolt Bottom Case
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
53 - Latchbolt Monitor Switch
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
59 - Electroguard Delayed Egress Device
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
77 - Milled Both Levers (Mortise) Handicap Warning on Both Levers (Cylindrical)Abrasive Strip on rail, abrasive coating on lever (Exits)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
AL - Alarmed exit
AL93 - Continuous Alarm
BC59 - Boco Code (NY) - Electroguard
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)
TL - SARGuide™ - Illuminated Touchpad

Sargent 8800 Rim Exit Device

Features

Designed for standard width stile applications on wood and metal doors
Most functions are non-handed
Single point rim latching device
Single door & double door applications with mullions
Quiet operation and solid security
Devices are ANSI A156.3 - 2001 Grade 1
UL Fire and Panic listed
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types: Wood or metal 1-3/4"(44mm) thick door; over 1-3/4": specify thickness and order as a 31- prefix
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
  - No cutting required for 32" door;
- F Rail - 33" to 36" (84cm to 91cm)
  - No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm)
  - No cutting required for 42" door;
- G Rail - 43" to 48" (110cm to 122cm)
  - No cutting required for 48" door
Strike: 649 Standard Black Nylon Coated
Optional Strikes: 642, 644 and 613
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
NEW! - Visual Status Lock/Unlock Indicator (49-) available on 8816 devices only
Electric Options: AL-Alarm, PL-SARGuide Photoluminescent, BT-Beacon, TL-SARGuide Illuminated Touchpad, 53-LX latchbolt Monitor, 54-Outside lever monitoring, 55-Request-to-exit Signal-Rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & Electromagnets, 58-Electric Dogging, 59-Electroguard-Self contained Delayed egress
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt: Stainless steel, 3/4" (19mm) throw
Device Centerline from Finished Floor: 41” (1041 mm)
Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
Projection: Pushbar Neutral – 3" (76 mm);
Pushbar Depressed – 2-1/8" (54 mm)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
49 - Visual Status Lock/Unlock Indicator (Available with 8816 only)
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
53 - Latchbolt Monitor Switch
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
59 - Electroguard Delayed Egress Device
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
75 - Handicap Warning on Inside of Lever – Embossed Plastic backing
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
AL - Alarmed exit
AL93 - Continuous Alarm
BC59 - Boco Code (NY) - Electroguard
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
GL - Guarded latchbolt
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)
TL - SARGuide™ - Illuminated Touchpad

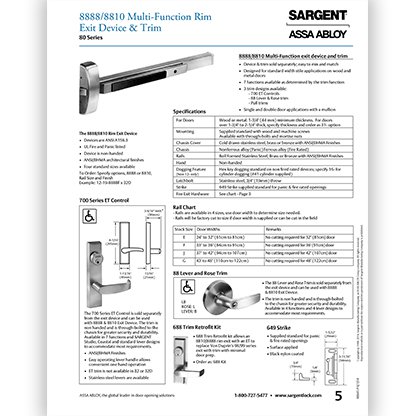

Sargent 8888 Reversible Rim Exit Device

Features

Non-handed

Single and double door applications
Devices are ANSI A156.3 - 2001 Grade 1
UL Fire and Panic Listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
7 functions determined by the trim
Device & trim sold separately; easy to mix and match
3 available trim designs; trim is field reversible

Specifications

For wood or metal doors. 1-3/4 in. (44 mm) and 2-1/4 in. (57 mm) thick
Mounting is supplied standard with wood and machine screws. Available on order with through bolts and mortise nuts
Chassis Cover: cold drawn stainless steel, bronze or bronze with ANSI/BHMA finishes
Nonferrous alloy chassis (Panic); Ferrous alloy chassis (Fire Rated)
Allen-type dogging furnished standard
Stainless steel latchbolt, 3/4 in. (19 mm) throw
649 strike standard (panic & fire rated)

Options/Prefixes:

10 - SARGENT Signature key system
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
1170 - Small Format interchangeable disposable construction core - to accept 7 pin XC permanent core
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
43 - Flush End Cap
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
BR - Bump Resistant Cylinder
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
GL - Guarded latchbolt
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)

Sargent 8900 Mortise Lock Exit Device

Features

Designed for standard width stile applications on wood and metal doors
Concealed single point guarded latching for additional security
Single door applications
Double door applications with Vertical Rod
Devices are ANSI A156.3 - 2008 Grade 1
UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
  No cutting required for 32" door;
- F Rail - 33" to 36" (84cm to 91cm)
  No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm)
  No cutting required for 42" door;
- G Rail - 43" to 48" (110cm to 122cm)
  No cutting required for 48" door
Strike: C908 Standard Black Nylon Coated - ANSI Prep A115.1
Optional Strikes: 815 Open Back Strike
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Electric Options: AL-alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated touchpad, 53-LX latchbolt monitor, 54-Outside lever monitor, 55-Request-to-exit signal- rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric Dogging, 59-Electroguard- Self contained Delayed egress
Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt: Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
Dead Latch: Brass, sliding type
Device Centerline from Finished Floor: 41” (1041 mm) for standard applications
Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
23 - Flat 4-7/8" ANSI Strike
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
53 - Latchbolt Monitor Switch
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
59 - Electroguard Delayed Egress Device
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
AL - Alarmed exit
AL93 - Continuous Alarm
BC59 - Boco Code (NY) - Electroguard
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG1-78- - Degree Level 1 Exposed Plug
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG2-78- - Degree Level 2 Exposed Plug
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
DG3-78- - Degree Level 3 Exposed Plug
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
GL - Guarded latchbolt
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TL - SARGuide™ - Illuminated Touchpad

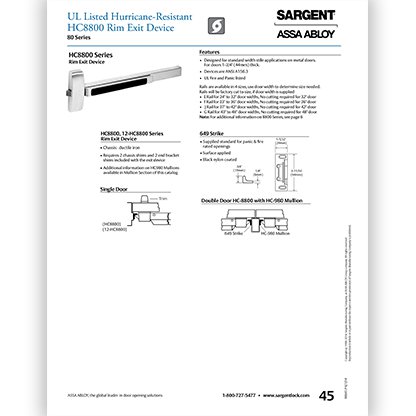

Sargent HC8800 Rim Exit Device

Features

Designed for standard width stile applications on metal doors
For doors 1-3/4" (44mm) thick
Single door applications - WS8800 Series
Single and double door applications - HC8800 Series
Solid stainless steel latchbolt. Meets UL panic test requirements without roller strikes which compromise strengh and durability
"Anti-walk" latchbolt design eliminiates the need for guarded latchbolt
Withstands over 5 times ANSI/BHMA A156.3 2008 grade 1 standards for static load test simulating forced entry
UL Fire and Panic listed
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
UL listed to ANSI 250.13 Severe Windstorm and listed on Florida Building Code Website

Specifications

Stainless steel springs throughout
Simple lever principle with push type action
Rail travels in direction of door swing
Trim is thru bolted
Electric functions available
All exit devices meet ANSI standard 156.3, Grade 1
All exit devices are UL Listed

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
19 - Pushbar without Lexan touchpad
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
43 - Flush End Cap
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
54 - Outside Lever Monitoring Option
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
56 - Remote Electric Latch Retraction (ELR)
57 - Delayed Egress Option & Electromagnets
58 - Electric dogging
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
HK56 - Latch Retraction with Hex Key Dogging
LC- - Less Cylinder
PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)
TL - SARGuide™ - Illuminated Touchpad
