Sargent 90 Series

Sargent 90 Series features wide and narrow styles, including concealed and surface vertical rods, rim and mortise.

Functions
Trim
Designs
Specifications
Finishes
Downloads

04 - night latch

Key retracts latchbolt

#41 cylinder supplied

06 - locked trim

Key unlocks trim;
trim retracts

Latch/Trim relocks when key is removed

#41 cylinder supplied

10 - no cylinder

No outside operation

(No cylinder)

10 - no cylinder, pull only

No outside operation
(no cylinder)

ET Control used as Pull Only

13 - locked trim

Key outside unlocks/locks trim

#41 Cylinder supplied

15 - passage only

Always operable (No cylinder)

28 - passage only

Always operable (No cylinder)

62 - locked trim

Key unlocks trim; trim retracts latch

Trim relocks when key is removed

63 - locked trim

Key outside unlocks/locks trim

66 - keyed both sides

Key outside retracts latch

Key inside unlocks/locks O/S trim

70 - electrified mortise

Electrified Mortise Lock

Power off, unlocks thumbpiece

Key retracts latch

71 - electrified mortise

Electrified Mortise Lock

Power off, locks thumbpiece

Key retracts latch

73 - fail safe

Electrified ET Trim

Fail safe, power off, unlocks lever

(no cylinder)

74 - fail secure

Electrified ET Trim

Fail secure, power off, locks lever

(no cylinder)

75 - fail safe

Electrified ET Trim - Fail Safe

Power off, unlocks lever, key retracts latch

76 - fail secure

Electrified ET Trim - Fail Secure

Power off, locks lever, key retracts latch

76 - fail secure

Electrified ET Trim - Fail Secure

Power off, locks lever, key retracts latch

862 - pull

1" x 10"

863 - pull

1" x 18"

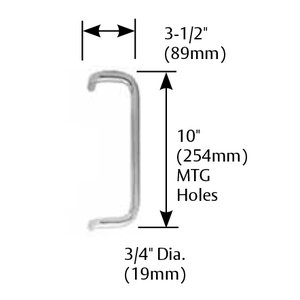

864 - pull

3/4" x 10"

ET

Specify lever

FLL - pull

(04 function shown)

FLW - pull

(10 function shown)

MAL/MSL - pull

(63/66 functions shown)

PRK

(Not available in 32, 32D)

PTB/PSB - pull

(04 function shown)

STS - pull

(04 function shown)

Studio Collection - levers

Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs

(Designer Hardware > Architectural Levers > Sargent)

Coastal Series - levers

Choose from Coronado, Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)

Auxiliary Control

100 Series (06 or 13 function)

A - lever

(Handed)

B - lever

E - lever

F - lever

J - lever

L - lever

P - lever

W - lever

9400 Series

The 9400 Series narrow stile exit device has the classic cross bar look and is supplied with the 9400 Night Latch Cylinder Retainer (04 function – the only function available with 9400 series).

9700 Series

Traditional looks while maintaining Life Safety/Fire code requirements for vertical rod applications, the 9700 Series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton. The cross bars are cut to the correct door width and vertical rods are made to order based on mounting position of the hardware and door height.

9800 Series

For single door and pairs of doors where a narrow stile application is required.

The 9800 series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton, and the cross bars are cut to the correct door width.

9898 Series

The 9898 Reversible Rim Exit Device can be used with one of four functions determined by the trim, which is sold separately.

Cross bars can easily be cut to length in the field. There are 5 available trim designs which are non-handed.

9900 Series

The 9900 series exit devices are ordered with trim, and shipped along with the strikes and key requirements in one carton.

The cross bars are cut to the correct door width.

Sargent 9400 Narrow Stile Concealed Vertical Rod Exit Device

Features

Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
See options/prefixes for keying options
All crossbar assemblies or brass, bronze or stainless steel (see specific device)
All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT products
Stainless steel springs throughout
Trim is through-bolted
All exit devices meet ANSI A156.3 Grade 1; A117.1 Accessibility Code
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal)

Specifications

For Metal Doors: 1-3/4" (44.5mm) thickness only; requires proper reinforcements
Mounting: Supplied standard machine screws; thru-bolting and no bottom rod available (special order)
Chassis Cover: Brass, bronze or stainless steel
Chassis: Nonferrous alloy
Crossbar: 13/16" x 1-3/8" oval seamless tubing; standard length for doors up to 36"; crossbar available for doors 36-1/2" to 48"

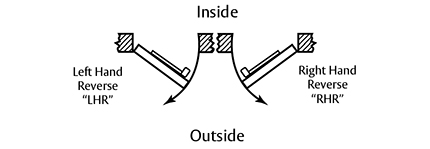

Hand: Field Reversible - order as RHRB or LHRB
Dogging: Standard Allen key dogging, Less dogging available, special order
Strikes: 94-2390 top strike pack; 94-2391 bottom strike pack
Rod: 3/8" solid steel (top); 1/2" steel tubing; Rods for doors 8'6" standard; Rods for doors 8'6" to 10'8" optional
Trim: Night Latch Cylinder Retainer with 04 function; 862, 863, 864 pulls available separately
Opening Height: 8'6" standard to 10'8" optional
Stile Width: 2-1/8" minimum with 1/2" stop, single door; 1-3/4", pair of doors
Projection: 4-7/8"; 3-1/8" depressed
Backset: 1-3/8" on single door with 3/8" stop; 1" on pair of doors without mullion
Cylinder: 41 Mortise cylinder; supplied with 9404/12-9404 only. Cylinder Kit includes: Cylinder, Night Latch Cylinder Retainer and mounting screws.

Options / Prefixes:

10 - SARGENT Signature key system
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
12 - UL Fire Label
22 - SARGENT Split Key Key System (existing systems only)
23 - Flat 4-7/8" ANSI Strike
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
54 - Outside Lever Monitoring Option
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
82 - SARGENT Keso Security Cylinder (existing systems only)
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted

Sargent 9700 Surface Vertical Rod Exit Device

Features

Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
All crossbar assemblies or brass, bronze or stainless steel (see specific device)
Stainless steel springs throughout
Trim is through-bolted
All exit devices meet ANSI A156.3 Grade 1
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal)
All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog
Two point latching (top and bottom of the door)
Top and bottom latchbolt projection adjustable through center case
Standard bottom latch compatible with latchtrack thresholds
Single and double door applications

Specifications

For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 3" (76mm) minimum stile. Maximum door height 96"
Mounting: Supplied standard with wood and machine screws. Through-bolts available on order
Chassis Cover: Brass, bronze or stainless steel
Chassis: Nonferrous alloy
Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement(42-)
Hand: Non Handed
Dogging: Standard Allen key dogging
Strike: 646 top strike for panic & fired and 624 bottom strike for panic and 655 bottom strike for fire
Rod: 1/2" brass, bronze or stainless steel
Opening Height: 84" (2134mm) standard

Options / Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
14 - Sliding Bolt Bottom Case
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
54 - Outside Lever Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
LC- - Less Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)

Sargent 9800 Rim Exit Device

Features

Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
All crossbar assemblies or brass, bronze or stainless steel (see specific device)
Stainless steel springs throughout
Trim is through-bolted
All exit devices meet ANSI A156.3 Grade 1
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal)
All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog

Specifications

For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile
Mounting: Supplied standard with wood and machine screws. Through-bolts available on order
Chassis Cover: Brass, bronze or stainless steel
Chassis: Nonferrous alloy
Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
Hand: Reversible
Dogging: Standard Allen key dogging
Strike: 649 standard strike for panic and fire
Functions 75 and 76 not available with 12- fire rated 9800 devices

Solutions

ElectroLynx™: The New Standard in Door Wiring

The plug-in connector system that allows installers to quickly and easily connect SARGENT electromechanical locks with CECO and Graham doors and frames, McKINNEY hinges and other ASSA ABLOY products.
The plug-in universal connectors and easy, color-coded wire system eliminate matching wires. Wiring is a snap and completely fool-proof. This pre-wired opening system – standard on most SARGENT electromechanical products – features Molex® connectors that snap together, attaching the door, hinge and lock to the building’s power source. Whether you use the system now, or plan to upgrade in the future, changing the components is as easy as plugging a phone into a wall jack.

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.
Supresses microbes
Long lasting
Non-toxic
Available on most SARGENT product lines
Lasts for the life of the hardware
State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
54 - Outside Lever Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
LC- - Less Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)

Sargent 9898 Reversible Rim Exit Device

Features

Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
All crossbar assemblies or brass, bronze or stainless steel (see specific device)
Stainless steel springs throughout
Trim is through-bolted and non-handed
All exit devices meet ANSI A156.3 Grade 1
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion or an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal)
All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog

Specifications

For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile
Mounting: Supplied standard with wood and machine screws. Through-bolts available on order
Chassis Cover: Brass, bronze or stainless steel
Chassis: Nonferrous alloy
Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
Hand: Non-handed
Dogging: Standard Allen key dogging
Strike: 649 standard

Options/Prefixes:

10 - SARGENT Signature key system
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
14 - Sliding Bolt Bottom Case
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
23 - Flat 4-7/8" ANSI Strike
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
54 - Outside Lever Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
BR - Bump Resistant Cylinder
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
LC- - Less Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)

Sargent 9900 Mortise Lock Exit Device

Features

Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
All crossbar assemblies or brass, bronze or stainless steel (see specific device)
Stainless steel springs throughout
Trim is through-bolted
All exit devices meet ANSI A156.3 Grade 1
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
All fire exit hardware for hollow metal door applications listed up to 3 hours
(A label) (Double Doors require astragal)
All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog

Specifications

For Doors: Wood or metal. 1-3/4" (44.5mm) thick standard. Other door thickness, consult factory. 4-1/2" (114mm) minimum stile
Mounting: Supplied standard with wood and machine screws. Through bolts available on order
Chassis Cover: Brass, bronze or stainless steel
Chassis: Nonferrous alloy
Crossbar: 1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
Hand: Handed, please specify when ordering
Mortise Lock: 900 Series Mortise Lock, non-reversible
Dogging: Standard Allen key dogging
Strike: C908 standard

Options/Prefixes:

10 - SARGENT Signature key system
10-63 - SARGENT Signature removable core cylinder
10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
23 - Flat 4-7/8" ANSI Strike
31 - Special Thickness Doors (specify door thickness)
36 - 6 lobe security head screws
37 - Spanner Head Screws
51 - Old Style Removable Core Cylinders (existing systems only)
52 - Old Style Removable Construction Core Cylinders (existing systems only)
54 - Outside Lever Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG1-78- - Degree Level 1 Exposed Plug
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG2-78- - Degree Level 2 Exposed Plug
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
DG3-78- - Degree Level 3 Exposed Plug
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
F183 - SARGENT Keso F1 Security Removable Core cylinder
LC- - Less Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
TB - Through Bolts (8700 devices only)
