Sargent ALP Trim & HP Lock

HP Bored Lock with Push/Pull
ALP Trim

The HP Series Bored Lock with ALP push/pull trim has ligature resistant features and provides an aesthetically-pleasing alternative to standard push/pull products.

Ease of operation allows its use in many environments, including healthcare and education.

The paddle shape and location create a comfortable target for door activation without using hands.

Functions
Specifications
Finishes
Downloads

HPU15 - Passage Set

• Both paddles retract latch
• Ideal for patient rooms and closets

HPU65 - Privacy Set

• I/S paddle always retracts latch
• O/S paddle retracts latch, except when locked by inside push button
• Closing door unlocks outside paddle
• Includes emergency release
• Ideal for bathrooms
• Vertical orientation required

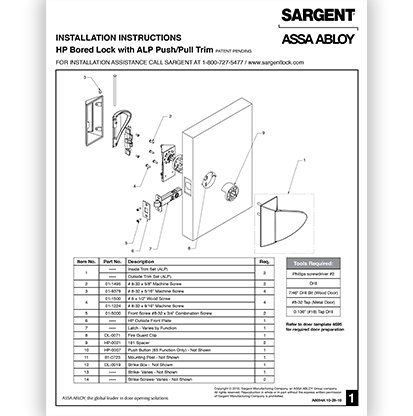

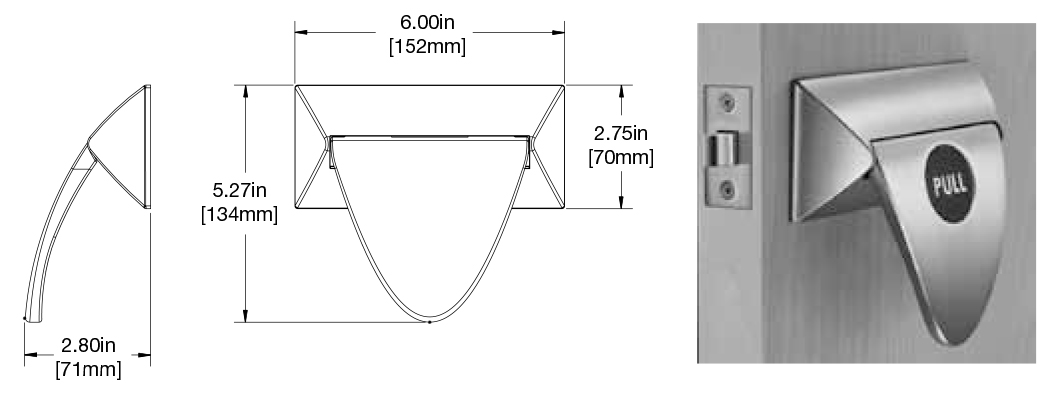

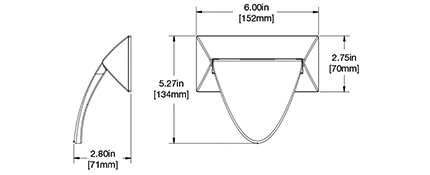

ALP Paddle Trim with HP Bored Lock

Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field
Easy installation
15 function trim is non-handed; lockbody is easily field reversible
Through-bolted trim for stability
Available in 2-3/4”, 5” or 7” backsets; 5" backset standard
ANSI/BHMA Grade 1
UL Fire Rating standard on doors up to 4' x 8'
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in a specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Torx® and spanner screws optional with ALP
Lead lining is optional: specify 74- option
Covers and paddles are cast stainless steel or brass
Patent Pending

Solutions

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

Supresses microbes
Long lasting
Non-toxic
Available on most SARGENT product lines
Lasts for the life of the hardware
State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)
