Sargent PT Trim & 7800 Lock

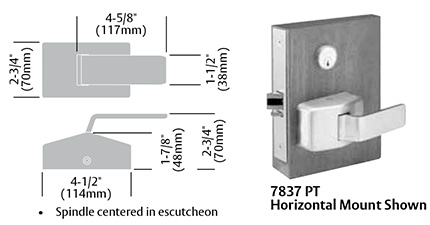

7800 Mortise Lock with Push/Pull Trim (PT)

The Push/Pull design commonly known for its ease of operation is coupled with the strength and integrity of a mortise lock to provide greater versatility.

The PT 7800 is perfect for facilities that require more durability and security features than that of a cylindrical lock.

SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability.

Functions
Turns
Specifications
Finishes
Options

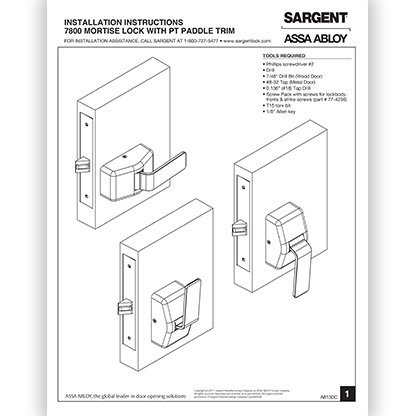

Downloads

Shaded paddle in diagrams, indicates rigid at all times. Note: All functions can be used with paddles in any orientation.

04 Storeroom or Closet (F07)

• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body

05 Office or Entry (F04)

• Key outside retracts latchbolt; also locks & unlocks outside trim
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
• Multi-Function Lock Body

37 Classroom (F05)

• Key outside retracts latchbolt, also locks & unlocks outside trim
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body

24 Storeroom Door (F21)

• Key outside or thumbturn inside retracts and projects deadbolt
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other

43 Apartment Corridor Door (F20)

• Key and thumbturn both retract & project the deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously); trim outside remains locked
• Auxiliary deadlatch

45 Dormitory or Exit (F12)

• Key and thumbturn both retract & project the deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
• Same as an 8243 without auxiliary deadlatch

50 Hotel Guest (F15)

• Hotel Cylinder (50 Function) Required (Standard & Emergency Keys)
• Standard Key retracts latchbolt only; will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Available with Conventional, LFIC (60- & 63-) and Keso (82- & F1-82-) key systems

16 Apartment, Exit or PUblic Restroom (F09)

• Key outside retracts latchbolt
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)

17 Asylum or Institutional (F30)

• Key from either side retracts latchbolt
• Trim on both sides are locked at all times
• Auxiliary deadlatch

38 Classroom Security Intruder Latchbolt (F32)

• Key from either side locks & unlocks outside trim
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch

26 Store Door (F14)

• Key from either side retracts & projects deadbolt
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other

15 Passage or Closet (F01)

• Trim from either side retracts latchbolt at all times

65 Privacy Bath/Bedroom (F22)

• Trim outside retracts latchbolt except when locked by thumbturn
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or optional emergency key
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim

126 T-Turn

Round backplate 2-3/16"

SST trim for 7892 function only

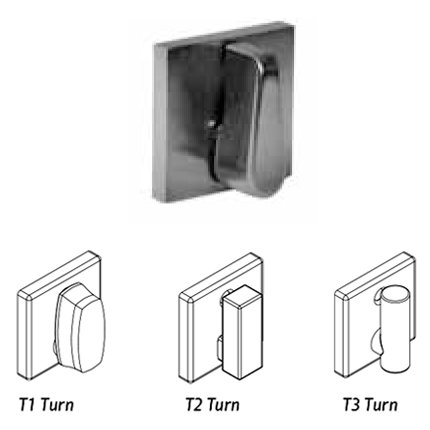

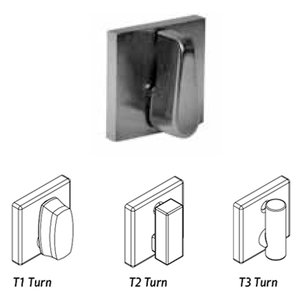

130KA

Square backplate 1-1/2"

Specify T1, T2 or T3 decorative turn

130KALP

For use with 8200 mortise ALP trim

2-3/4" x 1-13/16"

Brass or stainless steel housing

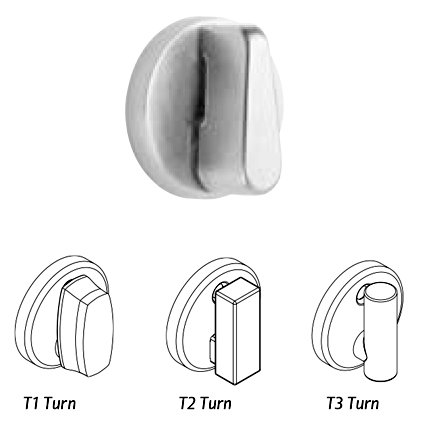

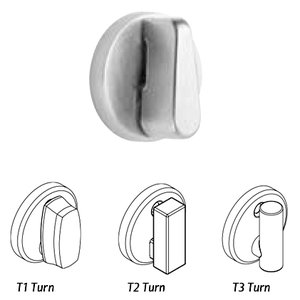

130KB

Round backplate 1-1/2"

Specify T1, T2 or T3 decorative turn

130KBH

For use with BHL trim

1-1/2" round backplate (brass or stainless steel)

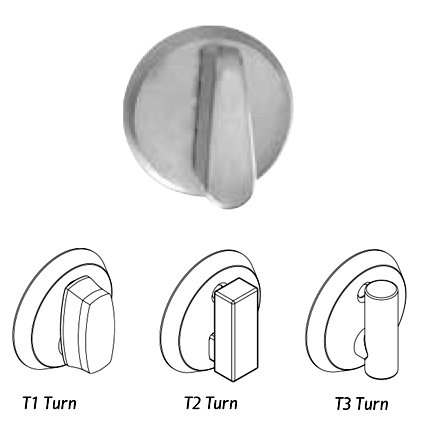

130KC

Contemporary backplate 1-3/4"

Specify T1, T2 or T3 decorative turn

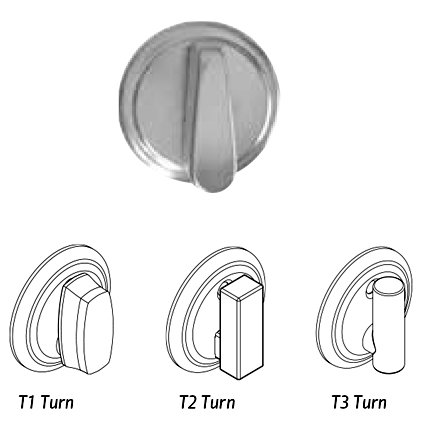

130KT

Traditional backplate 1-3/4"

Specify T1, T2 or T3 decorative turn

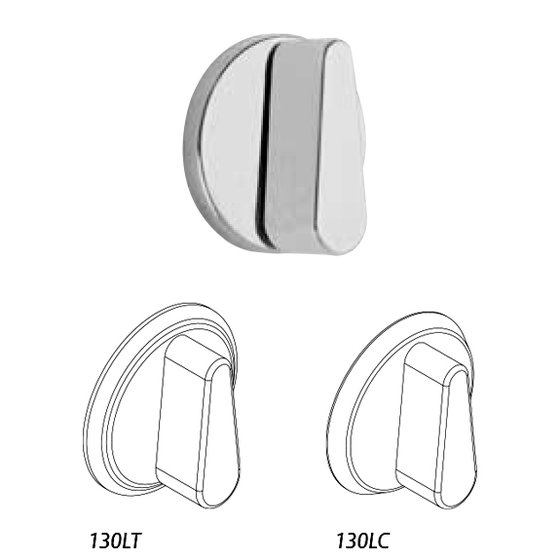

130LB

Large round backplate 2"

Specify 130LT or 130LC backplate

130W

Round backplate 1-1/2"

For use with 7800 sectional trim

Sargent 7800 & 8200 Mortise Locks with PT Trim

The patented* SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability. These locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: strong, durable, flexible, innovative and secure.

Hubs for Knobs/Levers:
– 7800: sintered iron copper infiltrated
– 8200: cold forged steel
– R8200: investment cast steel

Note: The PT trim is always supplied with an 7800PT mortise lockbody; all mortise lockbodies are labeled for ease of identification. When ordering lockbody only for PT trim, always specify 7800PT lockbody.
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications (7800/8200/R8200):

For doors 1-3⁄4" (44mm) thick standard
Backset 2-3⁄4" (70mm) only
Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1
Front adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
Auxiliary Deadlatch is stainless steel and non-handed
Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)
Keys: Two, nickel silver (control key or emergency key must be ordered when required)
Cylinder: Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 [1-3/4"] )
Can be masterkeyed or grand masterkeyed
Construction keying available; LA standard keyway
Stile: 4-1/2" (114mm) minimum stile for 7800/8200/R8200, 4-3/4" (121mm) minimum stile for electrical function locks
Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template
Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks. Warranty limited to replacement of lockbody and/or components

Maximum Strength & Durability

Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims
Meets and exceeds ASTM F1577-95b paragraph 6.2 detention impact level 1 for deadbolt functions, level 3 for latchbolt only functions
Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
1/8" (.125) cold-rolled steel inside front holds lock securely in door
Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks
Latchbolt is stainless steel with 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
Deadbolt is one-piece hardened stainless steel with 1" (25mm) projection
Optional 8200 stainless steel hubs for Institutional setting (specify 3- option)
Hurricane: SARGENT products are tested to meet Dade County Protocols and other local code requirements for high wind load and missile impact

* U.S. Patent Numbers: 5,678,870; 5,992,195; 6,178,794; 7,188,870 & 7,452,012

Maximum Flexibility

Fast and easy installation; lock is easily re-handed without removing parts or opening the lock case
Aesthetic design; many escutcheon and lever styles available to match a wide range of styles
Many standard architectural grade finishes, including Polished Nickel (14) & Satin Nickel (15) finishes
53 functions including 4 electrical functions; the most in the industry for a broad range of applications
Versatile; offered for door thicknesses ranging from 1-3/8" (35mm) to 6" (152mm)
Available with vandalism deterrent trim and/or secure fastener options, Torx® and spanner screws for high abuse conditions
Available with push/pull trim, perfect for hospital applications

Innovation

First in the industry to offer a multi-functional lockbody that embodies 8 functions in 1 lockbody
Easy operation. Only 30º of lever rotation required to retract latchbolt
Lever springs contained inside of the lock case for easier installation
SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed
Broad offering of electro-mechanical configurations offer higher security for the most demanding access/egress control applications featuring ElectroLynx® quick connectors

Security

Multiple security trim options available: free-wheeling, security escutcheon and anti-vandal pull trim (patent pending)
Security key systems available (Degree, Signature, Keso, Keso F1, & XC)
