Schlage AL-Series

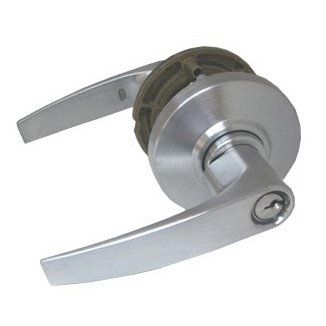

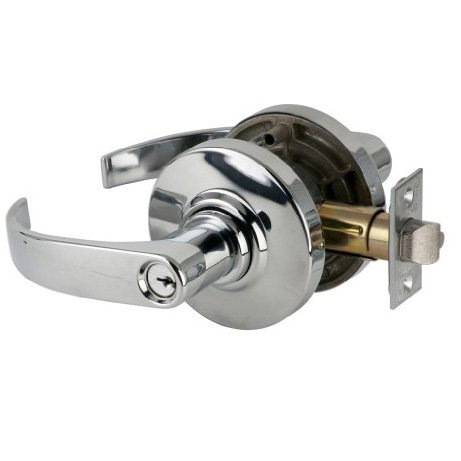

Schlage AL-Series Grade 2 Cylindrical Locks Specifications

• Cold-rolled steel, machined and threaded hubs, and locking nuts prevent loosening of the lockset by securely bolting chassis to the door.
• Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8” to 1-7/8” (35 mm to 48 mm) thick.

Handing: All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the "Door Handing" sidebar graphic, to correctly determine the hand of the door.

Door Thickness: 1-3/8” to 1-7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.

Backset: 2-3/4” (70 mm) standard. 2-3/8” (60 mm), 3-3/4” (95 mm) and 5” (127 mm) optional.

Front: Steel. 2-1/4” x 1-1/8” square corner, beveled, for 2-3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.

Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.

Strike: ANSI curved lip strike 4-7/8” x 1-1/4” x 1-1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.

Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.

Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.

Warranty: Three-year limited.

Latches

AL-Series latches are adjustable for flat or beveled edge doors. Latches and strikes are furnished in brass, bronze, or chrome finishes compatible with lock trim. When ordering separately, specify quantity, part number, and finish.

Long Backsets

Backsets 5” require extension links. AL-Series locks with long backsets are normally furnished with 1” faceplates and 7/8” housings. Links installed in 1” latch holes require one G506-815 sleeve (order separately) to join latch and link.

Door Reinforcement

Reinforcing unit is required to reinforce and help prevent the collapse of hollow metal doors when locksets are tightly mounted. This kit should be used with long backsets for AL-Series lock installations in hollow metal doors to prevent lateral movement of the latchbolt. Specify door thickness, 1-3/8” (35 mm) or 1-3/4” (44 mm), when ordering reinforcement kits.

Strikes

All Schlage strikes are furnished complete with screws. The 10-025 standard AL-Series strike has a 1 3/16” (30 mm) lip.

Certifications

• ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements. Meets A117.1 Accessibility Code.
• UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
