Schlage D-Series

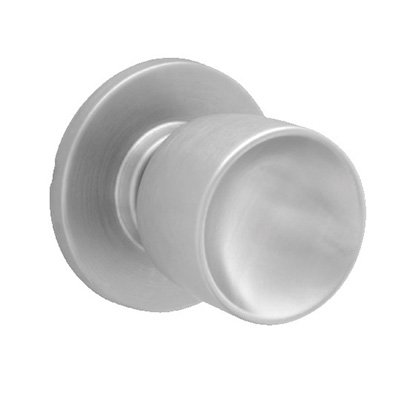

Schlage D-Series Cylindrical Locks Specifications

Heavy-duty hardware for premium performance.

• Exceeds 800,000-cycle ANSI Grade 1 requirements
• Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements
• Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions

D-Series – Features and Benefits:

• Exceeds 800,000-cycle ANSI Grade 1 requirements
• Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements
• Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions

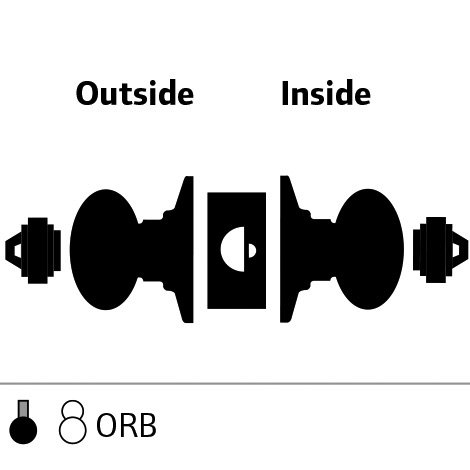

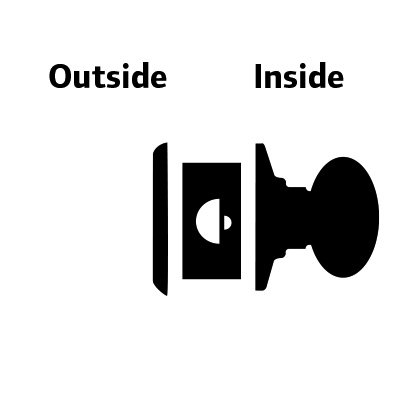

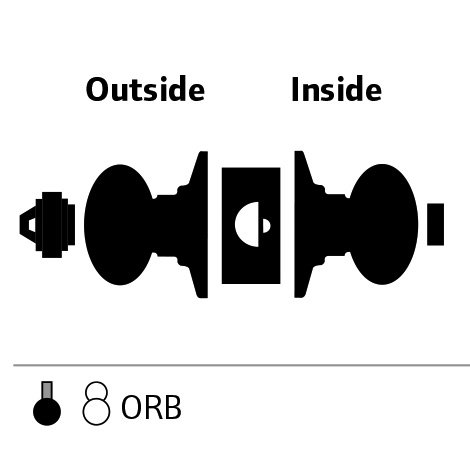

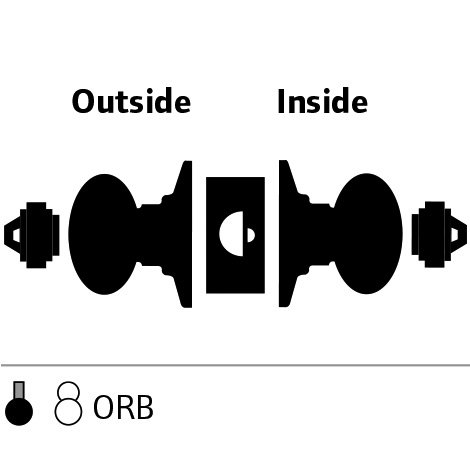

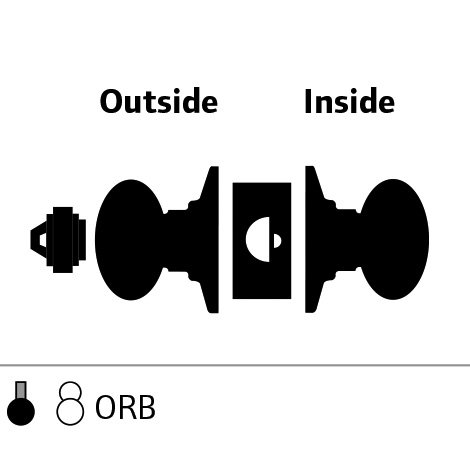

Door Handing: All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. View catalog for door handing information.

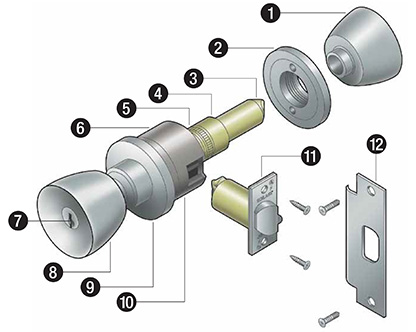

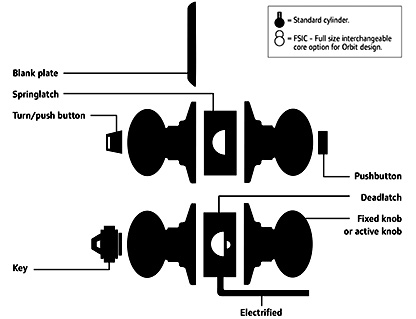

• Handing: Keyed functions of knob designs are field reversible.
• Door Thickness: 1-3/8” to 2” (35mm–51mm) standard; 2” to 2-1/2” (51mm–64mm) optional.
• Backset: 2-3/4” (70 mm) standard; 2-3/8”, 3-3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
• Faceplate: Brass, bronze or stainless steel. 11/8” x 2-1/4” (29 mm x 57mm) square corner, beveled.
• Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
• Latch Bolt: Brass, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
• Exposed Trim: Wrought brass, bronze or stainless steel.
• Strike: ANSI curved lip strike 1-1/4” x 4-7/8” x 1-3/16”lip to center standard. Optional strikes, lip lengths and ANSI strike box available.
• Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.

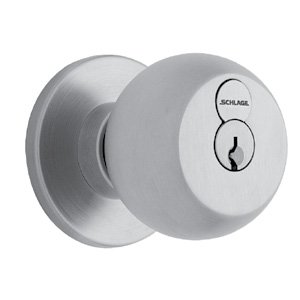

• Keying Options: Full size interchangeable core and Primus® high security cylinders. Master keying, grand master keying and construction keying.
• Warranty: Three-year limited warranty.

Latches: D-Series latches are adjustable for flat or beveled edge doors. Latches and strikes are furnished in brass, bronze, or chrome finishes to be compatible with lock trim. When ordering, specify quantity, part number, and finish. All D-Series latches have 1/2” throw and 1” housings except 2-3/8 ˝ backset latches, which includes sleeve G506-815 to fill a 1˝ edge bore.

Choose the right key system for your application

Schlage Classic and Everest key systems are designed to give you the level of security you need for every application. With optional keyway exclusivity, multi-level key hierarchy and cylinders that fit into a wide variety of locks, Schlage key systems and cylinders give you total control of your key system and building security. Unlike many other brands of high security cylinders, Schlage can easily intergrate its Primus XP and conventional cylinders into the same key system with no adverse effect on keying capacity. Primus XP keys will operate conventional cylinders, but conventional keys will not operate Primus XP cylinders. This means you can secure exterior doors and sensitive areas with Primus XP cylinders and use convential cylinders on the remaining doors. This cuts the cost of the overall job, and security can be tailored to meet the exact needs of each door without sacrificing the convenience of having a single building master key.

The Classic keyway family

Schlage Classic keyways provide security with no restrictions on duplication. Our Classic keyways can be easily upgraded or mixed with Primus XP for enhanced protection.

Primus XP High Security: The Primus XP keyway provides various levels of geographic exclusivity and requires authorization for duplication, ensuring better key control.

• Patented protection until July 2024
• Cylinders have a second set of pins for added security and pick resistance
• UL 437 versions available for additional protection against drilling and physical attacks
• Operates Primus XP and Classic (open) cylinders

The Everest patented keyway family

Everest patented keyways provide the highest levels of protection against unauthorized key duplication. Their patented design prevents non-authorized sources from manufacturing and distributing Everest key blanks. Our Everest key systems are suited for both new and existing key
systems, and give you the flexibility to expand and upgrade your key system as your needs change. The highest level of keyway security, Everest Primus XP keyways are distributed under careful protection guidelines to protect the exclusivity of the individual side bit milling patterns. Choose Everest Primus XP when the highest level of security and protection against unauthorized duplication is needed.

• Geographic exclusivity on key blanks
• Multiple patents protect against unauthorized key manufacture through July 2024
• Pick- and rake-resistant design
• Can be mixed and matched with non-Primus XP cylinders
• All key sections and master keying available at all levels of security
• Keys can be combinated using commonly available pin kits and key cutting equipment
• Keys are quick to cut and cylinders are easy to pin
• Thicker keys for added strength
• Three-year product warranty and a limited life-time warranty against key breakage
• Operates Everest Primus and Everest restricted cylinders

Choose the Right Cylinder for Each Application

Schlage cylinders are ideal for a wide range of commercial applications, including airports, hospitals, schools and universities, government and military buildings, offices and research laboratories. Choose from Classic Primus XP® or Everest® Primus XP high-security cylinders, Everest patented open and restricted cylinders, or the industry-standard Classic cylinders to fulfill your security needs and the demands of your specific installation.

Conventional Cylinders: Schlage locks are provided with cylinders precision-built to extremely close tolerances and the highest standards of accuracy. Using only solid brass bar stock plugs and shells, phosphor bronze springs, and nickel silver keys and bottom pins ensures long life and ease of operation.

Primus® High Security Cylinders: Primus high-security cylinders are available to add patented key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest or Classic keyways. In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and sidebar design, providing a “dual-locking” cylinder that is virtually pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Primus Lockout Cylinders: For doors where it is frequently desirable to disable all keys from operating the lock temporarily use lockout cylinders. The special lockout key can be removed while the plug is turned to the 11 o’clock position, preventing all normal operating keys, including master keys, from fully entering the cylinder. Suggested applications for lockout cylinders include laboratories, dark rooms, clean rooms and exterior doors to dormitories. Schlage will not master key lockout cylinders.

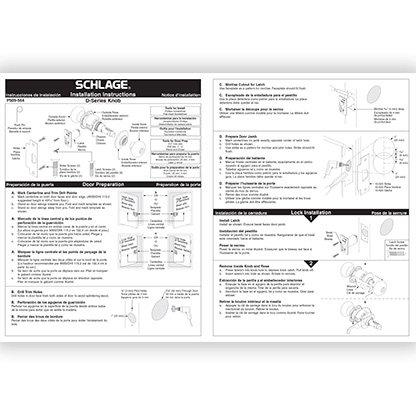

For more information, please see the D-Series Commercial Locks Catalog in the Downloads tab.

Certifications

• ANSI: Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

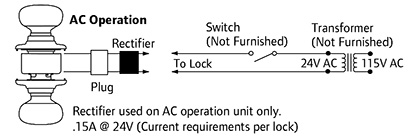

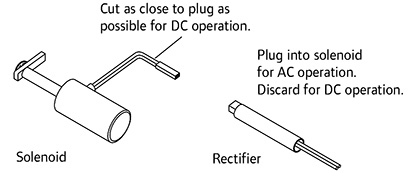

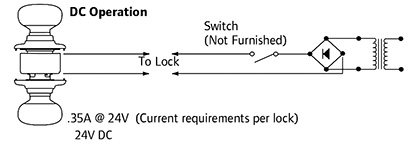

• UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
