Schlage L9000-Series
Nothing is tougher.
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.
One of the revolutionary features of the L-Series mortise lock is that handing can be done quickly and easily without opening the lock case.
Your building’s locking systems will keep people and other assets safe while delivering constant, reliable performance.
L9000 Series: Full Mortise Deadlocks
Schlage's L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
L9000 Series lock bodies are field-reversible without disassembly.






- Functions
- Designs
- Specifications
- Finishes
- Options
- Downloads

L0910 - F01

L0910 - F01
Latchbolt retracted from either side at all times
Inside lever always free for immediate egress

L9040 - F22

L9040 - F22
Latchbolt retracted from either side, unless outside is locked by inside thumbturn

L9044

L9044

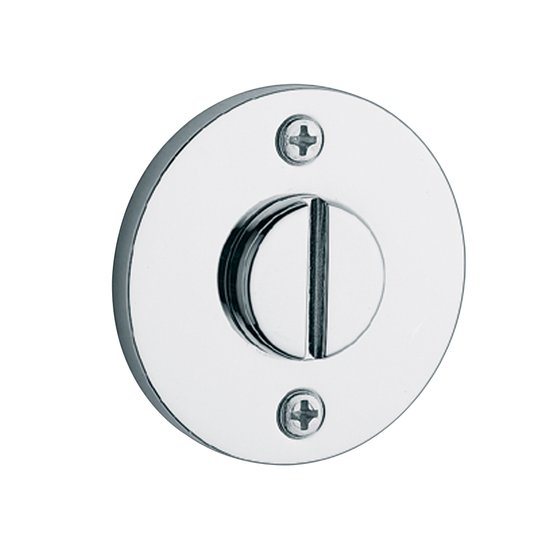

Latchbolt retracted from either side, unless outside locked by inside thumbturn or outside coin turn

L9440 - F19

L9440 - F19
Latchbolt retracted from either side
Deadbolt thrown or retracted by inside thumbturn

L9444

L9444
Latchbolt retracted from either side
Deadbolt thrown or retracted by inside thumbturn or outside coin turn

L9175

L9175
Fixed knob/lever on one side inoperable
Includes lock case and armored front

L9176

L9176
Fixed knob/lever on both sides
Includes lock case and blank armor front
*Double-door dummy strike: use 10-091

L9050 - F04

L9050 - F04
Latchbolt retracted from either side unless outside is made inoperative by key outside, or by turning inside thumbturn

L9056

L9056
Latchbolt retracted from either side unless outside is made inoperative by key outside, or by rotating inside thumbturn

L9070 - F05

L9070 - F05
Latchbolt retracted from either side unless outside is locked by key

L9076 - F06

L9076 - F06
Latchbolt retracted by key outside or knob/lever inside, unless outside is locked by key

L9080 - F07

L9080 - F07
Latchbolt retracted by key outside or by knob/lever inside
Outside knob/lever always inoperative

L9080EL

L9080EL
Outside knob/lever continuously locked by 24V AC/DC
Switch or power failure allows outside knob/lever to retract latchbolt

L9080EU

L9080EU
Outside unlocked by 24V AC/DC
Latchbolt retracted by key outside or knob/lever inside

L9080EL-RX

L9080EL-RX
Micro-switch positioned inside the lock case monitors retractor crank

L9453 - F20

L9453 - F20
Latchbolt retracted from either side, unless outside is locked by 20º rotation of thumbturn

L9456 - F13

L9456 - F13
Latchbolt retracted from either side
Deadbolt thrown or retracted by key outside or inside thumbturn

L9465

L9465
Latchbolt retracted from either side
Deadbolt thrown or retracted by key outside

L9473 - F21

L9473 - F21
Latchbolt retracted from either side
Deadbolt thrown or retracted by key outside or thumbturn inside

L9485 x XL11-557

L9485 x XL11-557
Latch retracted by key outside or knob inside
Outside knob always free spinning
Deadbolt only thrown or retracted by guard’s key

L9485

L9485
Latchbolt retracted by key outside or by knob/lever inside
Outside knob/lever always fixed

L9486 - F15

L9486 - F15
Latchbolt retracted by key outside or by knob/lever inside
Outside knob/lever always fixed

L9486 x L583-375

L9486 x L583-375
Latchbolt retracted by key outside or by knob/lever inside
Outside knob/lever always fixed

L9496

L9496
Knob/lever retracts latchbolt from either side
Deadbolt thrown or retracted by key outside or inside thumbturn (emergency retraction by key)

L9060 - F09

L9060 - F09
Latchbolt retracted from either side, unless outside is locked by key from inside

L9071

L9071
Latchbolt retracted from either side, unless outside is locked by key from either side

L9077

L9077
Latchbolt retracted from either side, unless outside is locked by key from either side

L9082

L9082
Latchbolt retracted by key from either side
Knob/lever on both sides always inoperative

L9082EL, L9082EU, L9082

L9082EL, L9082EU, L9082
Latchbolt retracted by key either side
EL: Outside and inside continually locked electrically
EU: Outside and inside knob/lever unlocked electrically
*Life safety hazard: not recommended for egress

L9457

L9457
Latchbolt retracted from either side
Deadbolt thrown or retracted by key from either side

L9466 - F14

L9466 - F14
Latchbolt retracted from either side
Deadbolt thrown or retracted by key from either side
*Life safety hazard: not recommended for egress

L9482 x XL11-943

L9482 x XL11-943
Latchbolt retracted by key from either side
Knob/lever on both sides always inoperative
*Life safety hazard: not recommended for egress

L9460 - F17

L9460 - F17
Deadbolt thrown or retracted by key outside or thumbturn inside

L9462 - F16

L9462 - F16
Deadbolt operated by key from either side
*Life safety hazard: not recommended for egress

L9463

L9463
Deadbolt thrown or retracted by key from outside
Inside thumbturn cylinder retracts deadbolt, but can't project it

L9464 - F18

L9464 - F18
Deadbolt thrown or retracted by key from one side
No trim on opposite side

L9460 x XL11-635

L9460 x XL11-635
Knob/lever both sides fixed
Deadbolt thrown or retracted by key outside or thumbturn inside

L9460 x XL11-886

L9460 x XL11-886
Deadbolt thrown or retracted by key outside or thumbturn inside
No latch; inside knob/lever is springloaded

L9462 x XL11-886

L9462 x XL11-886
Deadbolt thrown or retracted by key from either side
No latch; inside knob/lever is spring-loaded
*Life safety hazard: not recommended for egress

L9464 x XL11-886

L9464 x XL11-886
Deadbolt thrown or retracted by key from one side
No latch; inside knob/lever is spring-loaded

Electrified Lock

Electrified Lock
1 Amp, 24 AC/DC
Operating Temp: +151º F to -31º F

L Concealed - escutcheon


L Full Face - escutcheon


N - escutcheon


10-078 - no lip for L400

10-078 - no lip for L400
1-1/4” x 4-7/8”, with box
Screws included

37-015 - wood frame reinforcer


Armored front

Armored front
1-1/4" width for 1-3/4" doors
1-1/16" width for 1-3/8" doors
Screws included

Armored front strike

Armored front strike
1-3/4” x 8” x 1-3/16” lip
Specify hand of inactive leaf

Standard cylinder

Standard cylinder
Materials: solid brass, phosphor bronze, nickel silver

Primus® high security cylinder

Primus® high security cylinder
6-pin cylinder; Everest/Classic keyway
Drilling/attack resistance: 20-500 Series UL437

Primus® lockout cylinder

Primus® lockout cylinder
Special lockout key prevents even master keys from fully entering cylinder

Cylinder ring

Cylinder ring
Sloped surface minimizes ligature attachment opportunity

09-611 - thumbturn

09-611 - thumbturn
Requires 1-3/8” cylinder for 1-3/4” doors
Specify finish

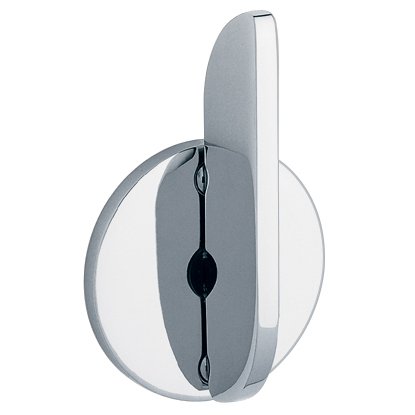

Thumbturn

Thumbturn
Positive stop prevents overextension & presentation of horizontal surface (hazard)

Tactile warning - knurling inside

Tactile warning - knurling inside
(L-Series standard knurling on outside lever only)

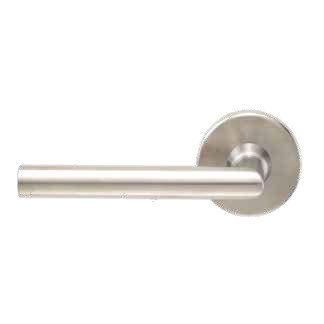

SL1 - lever

SL1 - lever
Allows lever to rotate in the event of excessive force
New or retrofit

SK1 - knob

SK1 - knob
Recessed trim, sloped surface, concealed fastening hardware
New or retrofit
