Schlage ND-Series
Continuous improvements make
the ND-Series a simpler, smarter, stronger lock.
The ND-Series has long been one of Schlage’s best selling mechanical locks for good reason – it’s tough, durable, and fits a wide variety of applications.
ND-Series locks feature a 10 year warranty and meet ANSI Grade 1 standards for safety. Get premium durability and performance in a lock that’s also easy to service and maintain.
Schlage's toughest cylindrical lock is ideal for use in schools, hospitals, offices, retail spaces, colleges, universities and other applications.






- Functions
- Designs
- Specifications
- Finishes
- Options

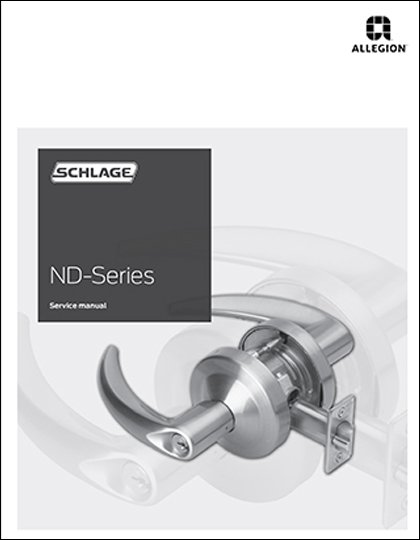

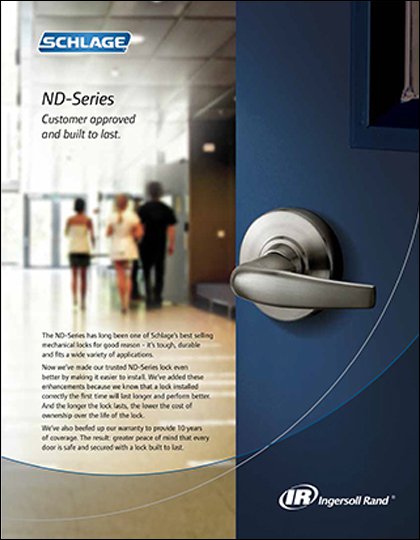

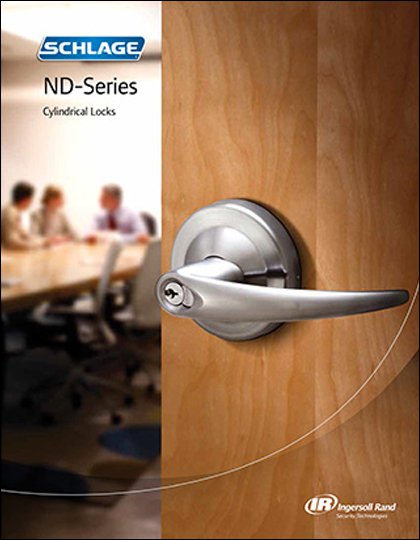

- Downloads

ND12DEL --

ND12DEL --
(Fail Safe)
Outside lever continuously locked electrically
Inside lever always free for immediate exit
Unlocked by switch or power failure; auxiliary latch deadlocks latchbolt when door is closed

ND12DEU --

ND12DEU --
(Fail Secure)
Outside lever continuously locked until unlocked by electric current
Inside lever always free for immediate exit
Auxiliary latch deadlocks latchbolt when door is closed

ND40S - F76

ND40S - F76
Push button locking
Turn inside lever or close door to release
Open from outside with small screwdriver

ND44S --

ND44S --
Push button locking
Turn inside lever or close door to release
Unlocked from outside by turning emergency turn-button

ND170 --

ND170 --
Dummy trim for one side of door
Used for door pull or as matching inactive trim

ND50PD - F82

ND50PD - F82
Push button locks outside lever, until it's unlocked with key or by turning inside lever

ND53PD - F109

ND53PD - F109
Turn/push button locks outside lever, until unlocked by key or by turning inside lever

ND60PD - F88

ND60PD - F88
Latch retracted by key from outside when outside lever is locked by key in inside lever
Inside lever always unlocked for immediate egress

ND70PD - F84

ND70PD - F84
Outside lever locked and unlocked by key
Inside lever always unlocked

ND73PD - F90

ND73PD - F90
Locked or unlocked by key from outside
Inside lever is always unlocked
Push button locking from inside:
- Turn inside lever or close door to release button
- When outside lever is locked by key, it can only be unlocked by key

ND75PD --

ND75PD --
Key in either lever, locks or unlocks outside lever
Inside lever is always unlocked

ND80PD - F86

ND80PD - F86
Outside lever is fixed
Inside lever always unlocked
Entrance by key only

ND80PDEL --

ND80PDEL --
Outside lever continuously locked electrically
Inside lever always free for immediate exit
- Unlocked by key outside or by switch or power failure
- Auxiliary latch deadlocks latchbolt when door is closed

ND80PDEU --

ND80PDEU --
Outside lever continuously locked, until unlocked by key or electric current
Inside lever always free for immediate exit
Auxiliary latch deadlocks latchbolt when door is closed

ND82PD - F87


ND85PD --

ND85PD --
Outside lever is fixed; enter by key only
Turn inside lever or close door, to release visual occupancy indicator
Rotation of inside spinner-button provides lock-out feature

ND92PD x F109 VandlGard

ND92PD x F109 VandlGard
Turn/push button disengages outside lever, until unlocked with key or by turning inside lever
(VandlGard disengages outside spindle from latch when locked)

ND93PD x F88 VandlGard

ND93PD x F88 VandlGard
Latch retracted by key from outside, when outside lever is disengaged by key in inside lever
Inside lever is always unlocked
(VandlGard disengages outside spindle from latch when locked)

ND94PD x F84 VandlGard

ND94PD x F84 VandlGard
Outside lever disengaged and unlocked by key
Inside lever is always unlocked
(VandlGard disengages outside spindle from latch when locked)

ND95PD -- VandlGard

ND95PD -- VandlGard
Key in either lever locks or unlocks outside lever
Inside lever is always unlocked
(VandlGard disengages outside spindle from latch when locked)

ND96PD x F86 VandlGard

ND96PD x F86 VandlGard
Outside lever always disengaged; entrance by key only
Inside lever is always unlocked
(VandlGard disengages outside spindle from latch when locked)

ND96PDEL -- VandlGard

ND96PDEL -- VandlGard
Outside lever continuously disengaged electrically
Inside lever always free for immediate exit
(VandlGard disengages outside spindle from latch when locked)

ND96PDEU -- VandlGard

ND96PDEU -- VandlGard
Outside lever continuously disengaged until unlocked by key or electric current
Inside lever always free for immediate exit
(VandlGard disengages outside spindle from latch when locked)

ND97PD x F90 VandlGard

ND97PD x F90 VandlGard
Locked or unlocked by key from outside
Inside lever is always unlocked
Turning inside lever or closing door releases button
(VandlGard disengages outside spindle from latch when locked)

ND30D - special

ND30D - special
Push button locking
Inside lever always free for immediate egress
Turning inside lever or closing door releases button, preventing a lock-out

ND25 x 80PD - special

ND25 x 80PD - special

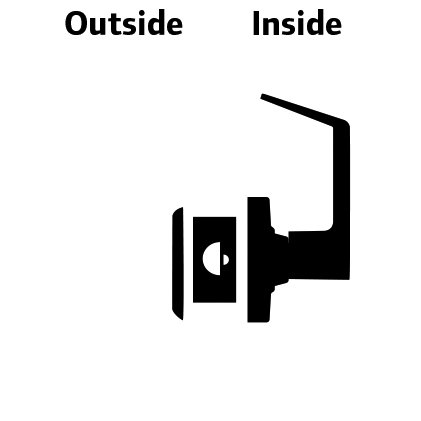

Blank plate outside
Key in fixed inside lever retracts latch

ND25 x 70PD - special

ND25 x 70PD - special
Blank plate outside
Key locks or unlocks inside lever

ND60PD - special

ND60PD - special
Same as ND60, except outside lever is closed
Inside lever always free for immediate egress

ND72PD - special


ND72PD - special/VandlGard

ND72PD - special/VandlGard
Key in either lever, locks and unlocks own lever
Both inside and outside levers are clutching

8AT - milled

8AT - milled
Only available on outside lever, unless otherwise specified
Extended factory lead time

8RO - milled

8RO - milled
Only available on outside lever, unless otherwise specified
Extended factory lead time

8SP - milled

8SP - milled
Only available on outside lever, unless otherwise specified
Extended factory lead time

8TR - knurled

8TR - knurled
Only available on outside lever, unless otherwise specified
Extended factory lead time

Electrified lock

Electrified lock
Special prep required for RX feature
Operating temp: +151F to -31F (+66C to -33C)

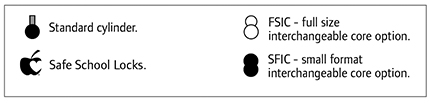

Full size interchangeable core

Full size interchangeable core
5-pin or 6-pin
Specify Everest 29 or Classic keyway
Finishes: 606 and 626 only
Primus XP high security, FSIC driver, conventional core options

Small format interchangeable core

Small format interchangeable core
6-pin or 7-pin
Specify Everest 29 R or Falcon/Best keyway
Finishes: 606, 613, 626
Family Restricted, SFIC driver, conventional core options

Standard cylinder

Standard cylinder
Specify Everest 29 or Classic keyway
Finishes: 606 and 626 only
Primus XP high security, hotel cylinder, temporary construction plug options
