Series 22
Touch bar exit devices are mounted on the egress side of the door. They can be mounted for rim, mortise, surface vertical, or concealed vertical applications. Touch bar exit devices feature an enclosed mechanism case with a push bar area to allow egress.
They are a critical part of the Fire and Life Safety egress system, and will provide safe and reliable service when properly applied and maintained.
Von Duprin designs and manufactures exit devices in accordance to ISO 9001 Quality Management System and meets or exceeds accepted U.S. domestic and International standards.
All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and
are certified to ANSI A156.3, 2001, Grade 1. Consult with Penner for current listings.
![](https://www.madero.ca/content/product-logos/VonDuprin_logo-variants/extra_large/VonDuprin_logo.jpg)
![](https://www.madero.ca/content/product-logos/UL-listed_logo_Transp-variants/extra_large/UL-listed_logo_Transp.png)
![](https://www.madero.ca/content/product-logos/VonDuprin_FireRated_logo_Transp-variants/extra_large/VonDuprin_FireRated_logo_Transp.png)
![](https://www.madero.ca/content/product-logos/wheelchair_icon_MkI8fZ9-variants/extra_large/wheelchair_icon_MkI8fZ9.png)
- Devices
- Trim
- Designs
- Specifications
- Finishes
- Options
- Downloads
![](https://www.madero.ca/content/variant-hero-image/Series%2022-F_fire%20exit%20device-variants/madero_thumb_square/Series%2022-F_fire%20exit%20device.jpg)
22-F Rim - fire touch bar
![](https://www.madero.ca/content/variant-hero-image/Series%2022-F_fire%20exit%20device-variants/madero_full_square/Series%2022-F_fire%20exit%20device.jpg)
22-F Rim - fire touch bar
up to 4’ x 8’, or 8’ x 8’ double
doors with 9954 or 9854 mullion
![](https://www.madero.ca/content/variant-hero-image/Series%202227_exit%20device-variants/madero_thumb_square/Series%202227_exit%20device.jpg)
2227 - vertical rod touch bar
![](https://www.madero.ca/content/variant-hero-image/Series%202227_exit%20device-variants/madero_full_square/Series%202227_exit%20device.jpg)
![](https://www.madero.ca/content/variant-hero-image/Series%202227-F_fire%20exit%20device-variants/madero_thumb_square/Series%202227-F_fire%20exit%20device.jpg)
2227-F - vertical rod fire touch bar
![](https://www.madero.ca/content/variant-hero-image/Series%202227-F_fire%20exit%20device-variants/madero_full_square/Series%202227-F_fire%20exit%20device.jpg)
![](https://www.madero.ca/content/variant-hero-image/22NL-OP%20Night%20latch%20deadbolt_trim-variants/madero_thumb_square/22NL-OP%20Night%20latch%20deadbolt_trim.jpg)

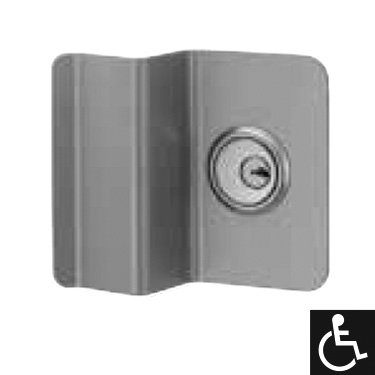

22NL-OP - night latch deadbolt
![](https://www.madero.ca/content/variant-hero-image/22NL-OP%20Night%20latch%20deadbolt_trim-variants/madero_full_square/22NL-OP%20Night%20latch%20deadbolt_trim.jpg)
![](https://www.madero.ca/content/variant-hero-image/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim-variants/madero_thumb_square/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim.jpg)

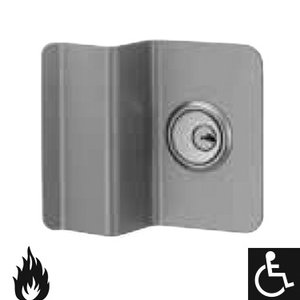

22NL-OP-F - night latch deadbolt fire rated
![](https://www.madero.ca/content/variant-hero-image/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim-variants/madero_full_square/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim.jpg)
![](https://www.madero.ca/content/variant-hero-image/22NL-OP%20Night%20latch%20deadbolt_trim_-variants/madero_thumb_square/22NL-OP%20Night%20latch%20deadbolt_trim_.jpg)
2227NL-OP - night latch deadbolt
![](https://www.madero.ca/content/variant-hero-image/22NL-OP%20Night%20latch%20deadbolt_trim_-variants/madero_full_square/22NL-OP%20Night%20latch%20deadbolt_trim_.jpg)
![](https://www.madero.ca/content/variant-hero-image/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim_-variants/madero_thumb_square/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim_.jpg)
2227NL-OP-F - night latch deadbolt fire rated
![](https://www.madero.ca/content/variant-hero-image/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim_-variants/madero_full_square/22NL-OP-F%20Night%20latch%20deadbolt%20fire_trim_.jpg)
![](https://www.madero.ca/content/variant-hero-image/Series%2022_hero_cAMoxWk-variants/madero_thumb_square/Series%2022_hero_cAMoxWk.jpg)

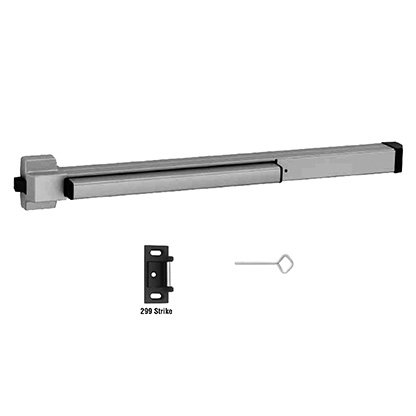

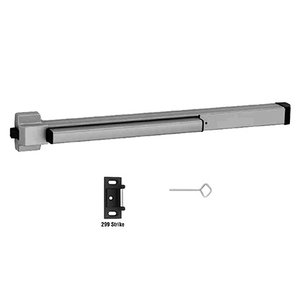

Series 22
![](https://www.madero.ca/content/variant-hero-image/Series%2022_hero_cAMoxWk-variants/madero_full_square/Series%2022_hero_cAMoxWk.jpg)
Series 22
-
Exit or fire exit device, with standard trim
-

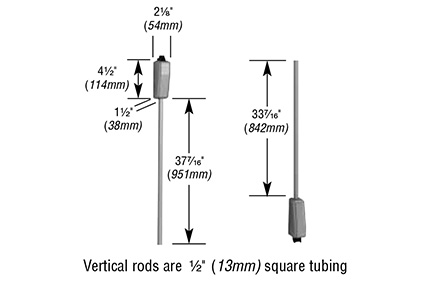

Surface mounted vertical rod exit device or fire exit device, with trim
-
UL listed for Panic Hardware or Fire Hardware
-
ANSI A156.3, 2001, Grade1
-

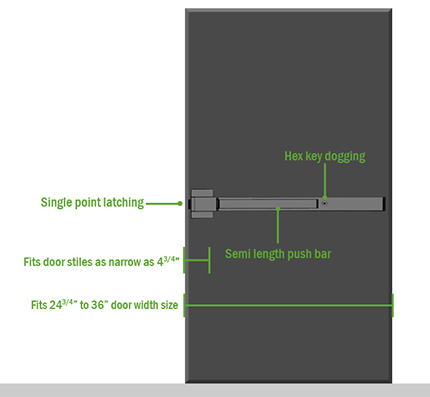

Fits door stiles as narrow as 4-3/4"
-
Two device widths fit doors 24-3/4" to 36" wide
-
Includes strike and standard Hex key dogging
-
Deadlocking latch bolt, 3/4" throw
-
Exit Only function; outside trim not included
-
Non-handed
![](https://www.madero.ca/content/variant-hero-image/Copy%20Placeholder_No%20Image________-variants/madero_thumb_square/Copy%20Placeholder_No%20Image________.jpg)
BHMA 695
![](https://www.madero.ca/content/variant-hero-image/Copy%20Placeholder_No%20Image________-variants/madero_full_square/Copy%20Placeholder_No%20Image________.jpg)
![](https://www.madero.ca/content/variant-hero-image/Von%20Duprin%20custom%20colors_thumb-variants/madero_thumb_square/Von%20Duprin%20custom%20colors_thumb.jpg)
Von Duprin Custom Colours
![](https://www.madero.ca/content/variant-hero-image/Von%20Duprin%20custom%20colors_thumb-variants/madero_full_square/Von%20Duprin%20custom%20colors_thumb.jpg)
Von Duprin Custom Colours
RAL Colour Chart #1000-9018
High quality, corrosion and chip-resistant finish
![](https://www.madero.ca/content/variant-hero-image/Copy%20Placeholder_No%20Image_________-variants/madero_thumb_square/Copy%20Placeholder_No%20Image_________.jpg)
110NL - cylinder kit
![](https://www.madero.ca/content/variant-hero-image/Copy%20Placeholder_No%20Image_________-variants/madero_full_square/Copy%20Placeholder_No%20Image_________.jpg)
110NL - cylinder kit
WD for wood doors
Specify function NL-OP
Order cylinder separately
![](https://www.madero.ca/content/variant-hero-image/3215%20Mortise%20cylinder%20option-variants/madero_thumb_square/3215%20Mortise%20cylinder%20option.jpg)

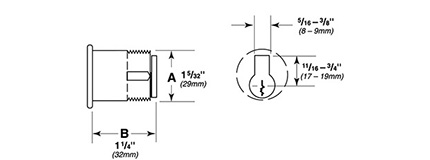

3215 - mortise cylinder
![](https://www.madero.ca/content/variant-hero-image/3215%20Mortise%20cylinder%20option-variants/madero_full_square/3215%20Mortise%20cylinder%20option.jpg)
![](https://www.madero.ca/content/variant-hero-image/3216%20Rim%20cylinder%20option-variants/madero_thumb_square/3216%20Rim%20cylinder%20option.jpg)

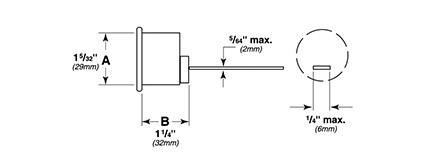

3216 - rim cylinder
![](https://www.madero.ca/content/variant-hero-image/3216%20Rim%20cylinder%20option-variants/madero_full_square/3216%20Rim%20cylinder%20option.jpg)
![](https://www.madero.ca/content/variant-hero-image/210-230%20Series_heavy%2010%20gauge%20option-variants/madero_thumb_square/210-230%20Series_heavy%2010%20gauge%20option.jpg)
210 Series - heavy duty trim
![](https://www.madero.ca/content/variant-hero-image/210-230%20Series_heavy%2010%20gauge%20option-variants/madero_full_square/210-230%20Series_heavy%2010%20gauge%20option.jpg)
![](https://www.madero.ca/content/variant-hero-image/210-230%20Series_heavy%2010%20gauge%20option_-variants/madero_thumb_square/210-230%20Series_heavy%2010%20gauge%20option_.jpg)
230 Series - heavy duty trim
![](https://www.madero.ca/content/variant-hero-image/210-230%20Series_heavy%2010%20gauge%20option_-variants/madero_full_square/210-230%20Series_heavy%2010%20gauge%20option_.jpg)
![](https://www.madero.ca/content/variant-hero-image/VonDuprin_FireRated_logo-variants/madero_thumb_square/VonDuprin_FireRated_logo.jpg)
LBR - less bottom rod
![](https://www.madero.ca/content/variant-hero-image/VonDuprin_FireRated_logo-variants/madero_full_square/VonDuprin_FireRated_logo.jpg)
![](https://www.madero.ca/content/variant-hero-image/GBK_Glass%20Bead%20Kit_option-variants/madero_thumb_square/GBK_Glass%20Bead%20Kit_option.jpg)
GBK - glass bead kit
![](https://www.madero.ca/content/variant-hero-image/GBK_Glass%20Bead%20Kit_option-variants/madero_full_square/GBK_Glass%20Bead%20Kit_option.jpg)
![](https://www.madero.ca/content/variant-hero-image/229%20Cover%20Plate%20Kit_option-variants/madero_thumb_square/229%20Cover%20Plate%20Kit_option.jpg)
229 - cover plate kit
![](https://www.madero.ca/content/variant-hero-image/229%20Cover%20Plate%20Kit_option-variants/madero_full_square/229%20Cover%20Plate%20Kit_option.jpg)
229 - cover plate kit
Inside plate for lock stiles
Necessary screws included
![](https://www.madero.ca/content/variant-hero-image/RG-27_Vertical%20Rod%20%26%20Latch%20Guard_option-variants/madero_thumb_square/RG-27_Vertical%20Rod%20%26%20Latch%20Guard_option.jpg)

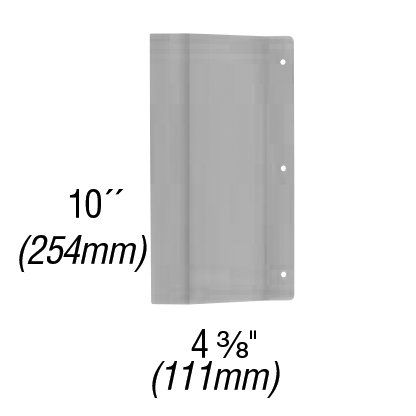

RG-27 vertical rod & latch guard
![](https://www.madero.ca/content/variant-hero-image/RG-27_Vertical%20Rod%20%26%20Latch%20Guard_option-variants/madero_full_square/RG-27_Vertical%20Rod%20%26%20Latch%20Guard_option.jpg)
RG-27 vertical rod & latch guard
Stainless steel construction, US32D finish
Covers latches up to
1-1/4"W x 10"H x 1-7/8"
![](https://www.madero.ca/content/variant-hero-image/ALK%20Alarm%20Kit_option-variants/madero_thumb_square/ALK%20Alarm%20Kit_option.jpg)

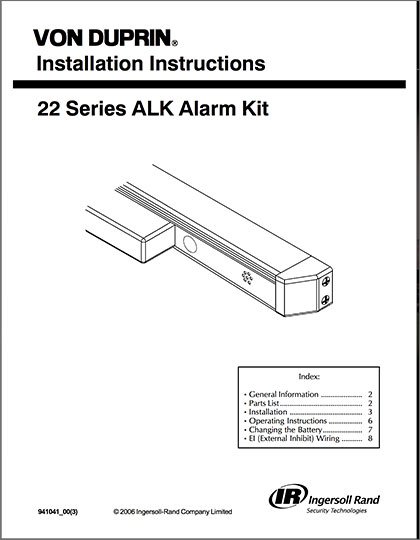

ALK - alarm kit
![](https://www.madero.ca/content/variant-hero-image/ALK%20Alarm%20Kit_option-variants/madero_full_square/ALK%20Alarm%20Kit_option.jpg)
ALK - alarm kit
Includes standard RX-request to exit switch
Uses 9V alkaline battery
![](https://www.madero.ca/content/variant-hero-image/PS9%20Power%20Supply_option-variants/madero_thumb_square/PS9%20Power%20Supply_option.jpg)
PS9 - power supply
![](https://www.madero.ca/content/variant-hero-image/PS9%20Power%20Supply_option-variants/madero_full_square/PS9%20Power%20Supply_option.jpg)
![](https://www.madero.ca/content/variant-hero-image/EPT%20Electrical%20Power%20Transfer_option-variants/madero_thumb_square/EPT%20Electrical%20Power%20Transfer_option.jpg)
EPT - electrical power transfer
![](https://www.madero.ca/content/variant-hero-image/EPT%20Electrical%20Power%20Transfer_option-variants/madero_full_square/EPT%20Electrical%20Power%20Transfer_option.jpg)
EPT - electrical power transfer
EPT-2 (two 18 gauge wires)
EPT-10 (ten 24 gauge wires)

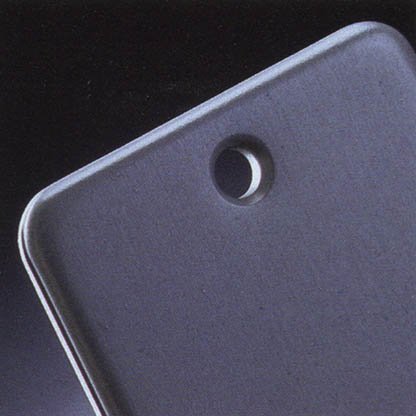

Finishes: SP28 (sprayed aluminum) or SP313
(sprayed duranodic)
![](https://www.madero.ca/content/variant-hero-image/RX%20Request%20Exit%20switch_option-variants/madero_thumb_square/RX%20Request%20Exit%20switch_option.jpg)
RX - request to exit
![](https://www.madero.ca/content/variant-hero-image/RX%20Request%20Exit%20switch_option-variants/madero_full_square/RX%20Request%20Exit%20switch_option.jpg)
RX - request to exit
Low current (LC) switch available
Can be factory or field installed
![](https://www.madero.ca/content/variant-hero-image/LX%20Latch%20Bolt%20Monitor%20switch_option-variants/madero_thumb_square/LX%20Latch%20Bolt%20Monitor%20switch_option.jpg)
LX - latch bolt monitoring
![](https://www.madero.ca/content/variant-hero-image/LX%20Latch%20Bolt%20Monitor%20switch_option-variants/madero_full_square/LX%20Latch%20Bolt%20Monitor%20switch_option.jpg)
LX - latch bolt monitoring
Low current (LC) switch available
Can be factory or field installed
