Series 88

Series 88 Exit Device Specifications

Exit devices are a critical part of a door opening or access system. The
cross bar style of exit device is primarily used in architectural applications. It is available in both wide and narrow stile, and is ideal for environments that demand a traditional looking device with the durability to withstand rugged applications.

Von Duprin offers a wide range of exit devices and outside trim operations to meet the needs of any application. The Series 88 exit devices offer:

• 88 Rim Exit Device

• 88-F Fire Exit Rim Device

• 8875 Mortise Lock Exit Device

• 8875-F Fire Exit Mortise Lock Device

• 8827 Surface Mounted Vertical Rod Device

• 8827-F Fire Exit Surface Mounted Vertical Rod

• 8847-F Fire Exit Concealed Vertical Rod Device

Cross bar exit devices are mounted on the egress side of the door. They can be mounted for rim, mortise, or concealed vertical applications.

Double Door Application Suggestions

88 Rim Cross Bar Exit Device

For all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161* cutouts.

* Not applicable with all strike and mullion combinations – consult Penner.

Features and Benefits:

• Fully reversible
• Field sizeable

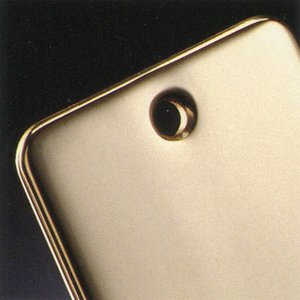

• Five popular finishes
• 3/4" (19mm) throw latch bolt
• Hex key dogging
• Optional E88 electric rim device

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Crossbar projection – neutral 4-3/4" (121mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)

88 rim device is furnished with standard 299 strike in dull black finish and all necessary mounting fasteners.


88-F Rim Fire Exit Device

For all types of 4' x 8' single and 8 x 8' double doors with 9954 mullion, UL listed, 3 hours.

Features and Benefits:

• Field sizeable
• Five popular finishes
• 3/4" (19mm) throw latch bolt
• Latch bolt deadlocking
• Optional E88-F electric rim device

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Crossbar projection – neutral 4-3/4" (121mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)

88-F rim device is furnished with standard 268 strike in dull black finish and all necessary mounting fasteners.


8875 Mortise Lock Exit Device

For all types of single and double doors with mullion, UL listed for accident hazard installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).

Features and Benefits:

• Field sizeable
• Five popular finishes
• 3/4" (19mm) throw latch bolt
• Hex key dogging
• Latch bolt deadlocking
• Optional E8875 electric mortise lock device

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Latch bolt height to finished floor 40-3/32" (1018mm) at center
• Crossbar projection – neutral 4-7/8" (124mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)
• Lock case 4-5/8" x 5-3/4" x 1-3/16" (117mm x 146mm x 46mm)
• Face plate 1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm)
• Cylinder backset 2-3/4" (70mm)

8875 mortise lock device is furnished with standard 575 strike in dull black finish and all necessary mounting fasteners.


8875-F Fire Exit Mortise Lock Device

For all types of 4' x 10' single and 8' x 8' double doors, UL listed, 3 hours. Fits door stiles as narrow as 4-3/4" (121mm).

Features and Benefits:

• Field sizeable
• Five popular finishes
• 3/4" (19mm) throw latch bolt
• Latch bolt deadlocking
• Optional E8875-F electric mortise lock device

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Latch bolt height to finished floor 40-3/32" (1018mm) at center
• Crossbar projection – neutral 4-7/8" (124mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)
• Lock case 4-5/8" x 5-3/4" x 1-3/16" (117mm x 146mm x 46mm)
• Face plate 1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm)
• Cylinder backset 2-3/4" (70mm)

8875-F mortise lock device is furnished with standard 575 strike in dull black finish and all necessary mounting fasteners.


8827 Surface Mounted Vertical Rod Device

For all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts and fits door stiles as narrow as 3-1/2" (90mm).

Features and Benefits:

• Fully reversable
• Field sizeable
• Five popular finishes
• 5/8" (16mm) throw latch bolt
• Hex key dogging

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Crossbar projection – neutral 4-7/8" (124mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2" x 15/16" (210mm x 51mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)
• Top and bottom latch case 4" x 2" x 1-7/8" (102mm x 51mm x 48mm)
• Vertical rod 1/2" (13mm) tubing
• Note: maximum door undercut, 1/4" (6mm)

8827 surface mounted vertical rod device is furnished with standard 299 strike in dull black finish, 248L-4 and 304L strikes; and all necessary mounting fasteners. Rod and latch guards available.


8827-F Fire Exit Surface Mounted Vertical Rod Device

For all types of 8' x 8' double doors, UL listed, 3 hours. Fits door stiles as narrow as 3-3/4" (95mm).

Features and Benefits:

• Fully reversable
• Field sizeable
• Five popular finishes
• 5/8" (16mm) throw latch bolt

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Crossbar projection – neutral 4-7/8" (124mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2" x 15/16" (210mm x 51mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)
• Top and bottom latch case 4" x 2" x 1-7/8" (102mm x 51mm x 48mm)
• Vertical rod 1/2" (13mm) tubing
• Note: maximum door undercut, 1/4" (6mm)

8827-F surface mounted vertical rod device is furnished with standard 304L strike and all necessary mounting fasteners. Rod and latch guards available.


8847-F Fire Exit Concealed Vertical Rod Device

For all types of 8' x 8' double doors, UL listed, 3 hours. Fits door stiles as narrow as 4-3/4" (121mm).

Features and Benefits:

• Field sizeable
• Five popular finishes
• 5/8" (16mm) throw latch bolt

Dimensions:

• Crossbar height to finished floor 36-13/16" (935mm) at center
• Crossbar projection – neutral 4-7/8" (124mm); depressed 4" (102mm)
• Crossbar length 42" (1067mm) – field sizeable
• Lock stile case 8-1/4" x 2" x 15/16" (210mm x 51mm x 24mm)
• Hinge stile case 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing 1" (25mm)
• Vertical rod 3/8" (10mm) tubing
• Note: maximum door undercut, 1/4" (6mm)

8847-F concealed vertical rod device is furnished with standard 301L strike and all necessary mounting fasteners. Rod and latch guards available.


For additional specifications, see catalogue under Downloads tab.

Von Duprin created the first panic exit bar in response to the Iriqouis Theatre Fire of 1903 in Chicago. The fire caused the highest loss of life in history for a single building fire, taking a total of 602 lives in 20 minutes.
