Series 94/95 INPACT Exit Device Specifications

INPACT recessed exit devices are available in two external surface styles, designated 94 Series and 95 Series. The two styles are mechanically and dimensionally identical and provide a wide selection of appearance options.

• 94 Series features grooved mechanism case
• 95 Series features smooth mechanism case

INPACT exit devices are fully integrated within a door to combine a clean, tasteful appearance with Von Duprin’s unrivaled standards of durability
and performance.

They maintain a low profile with sloped end caps that deflect objects away from the door and are close to being totally flush with the door when depressed, eliminating pinch points. Applications include: hospitals, healthcare facilities, universities, and other high profile buildings.

A wide pushpad makes operation easy, even for people with disabilities. INPACT’s design meets the strictest building codes, to withstand heavy use and abuse.

The design is compatible with hollow metal doors, including doors manufactured by Steelcraft®, part of the Ingersoll Rand Security & Safety product line.

Features and Benefits

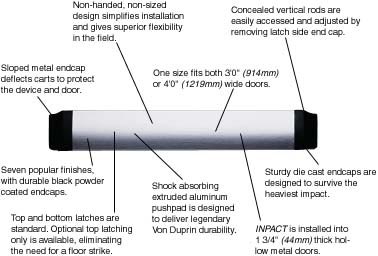

Design: The streamlined, extruded aluminum pushpad is uniquely designed to exhibit grace under pressure. Built to absorb shock, it takes the wear and tear of even the most demanding high-traffic areas. The sloped, die-cast metal endcaps provide added support, protecting the device and the door against the heaviest impact. The nonhanded configuration simplifies installation and gives superior flexibility in the field.

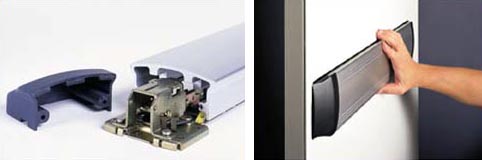

Construction: Compression springs are used throughout, and all internal components are coated with zinc dichromate to prevent corrosion. Latchbolts have a self-lubricating coating to reduce friction and wear. Concealed studs and through-bolts, from the inside, fasten the heavy-duty outside trim. Factory steel door prep makes installation simple and fast.

Not available for wood doors: Consult Penner for additional information about fire rated, wood textured steel doors.

Durability and Reliable Operation: Devices are tested in accordance to ANSI/BHMA A156.3 Grade 1 by a BHMA certified testing laboratory. INPACT has exceeded one million cycles.

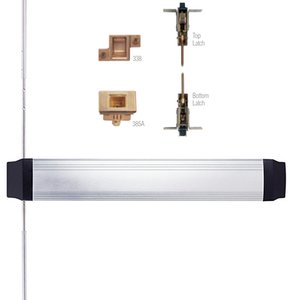

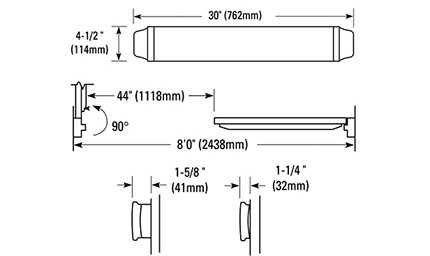

94/95 INPACT Concealed Vertical Rod Devices:

• Models: 9447 and 9547

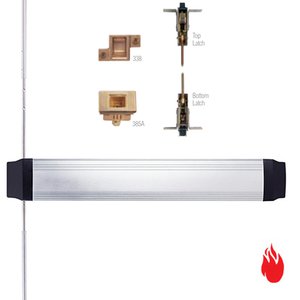

• Fire-Rated Models: 9447-F and 9547-F
• Device Handing: Non-handed
• Styles: Smooth 94 Series and Grooved 95 Series
• Pushpad: Extruded anodized aluminum
• Endcaps: Die-cast aluminum, sloped design
• Strikes: Standard 338 and 385A provided.
• Latchbolt: 5/8" (16mm) throw. Top and bottom latching are standard. (Optional LBR is available, with no need for floor strike.)
• Deadlocking Latchbolt: Standard
• Dogging Feature: Hex key dogging
• Door Sizes: 2'10" (864mm) to 4'0" (1219mm) width; 10'0" (3048mm) maximum height; 1-3/4" (44mm) thickness
• Device Height: 4-1/2" (114mm)
• Device Length: 30" (762mm)
• Device Center Line to Finished Floor: 39-5/8" (1006mm)
• Projection: 1-5/8" (41mm) neutral; 1-1/4" (32mm) depressed
• Fasteners: Included for surface mounting to recessed door prep and through bolting to trim.
• ANSI Grade: Certified to ANSI/BHMA A156.3 Grade 1. Tested at one million cycles.
• Concealed Vertical Rods: Two-piece adjustable rods, door 6'8" (2032mm) to 8'4" (2540mm). Can be adjusted by removing the latchside endcap.
• Optional Extension Rod: Adjustable for doors 8'4" (2540mm) to 10'0" (3048mm).

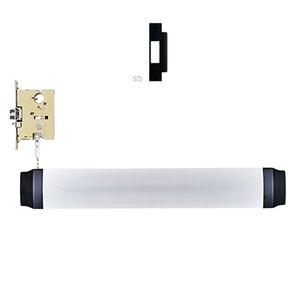

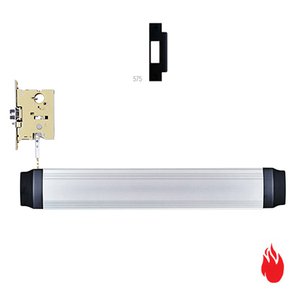

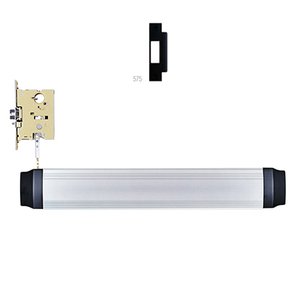

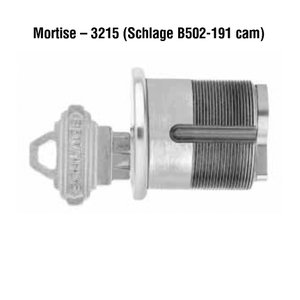

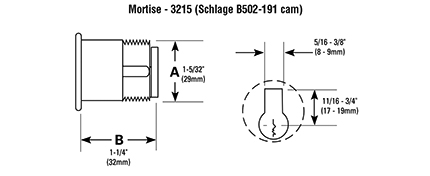

94/95 INPACT Mortise Lock Devices:

• Models: 9475 and 9575
• Fire-Rated Models: 9475-F and 9575-F
• Device Handing: Non-handed
• Functions: See Trim Selection Chart on the Styles tab
• Finishes: See Finishes Chart on the Styles tab
• Styles: Smooth 94 Series and Grooved 95 Series
• Pushpad: Extruded anodized aluminum
• Endcaps: Die-cast aluminum, sloped design
• Strike: Standard 575
• Latchbolt: 3/4" anti-friction, field reversible
• Deadlocking Latchbolt: Standard
• Mortise Lock Center Line to Finished Floor: 48-1/8" (1222mm)
• Dogging Feature: Hex key dogging
• Door Sizes: 2'10" (864mm) to 4'0" (1219mm) width; 10'0" (3048mm) maximum height; 1-3/4" (44mm) thickness

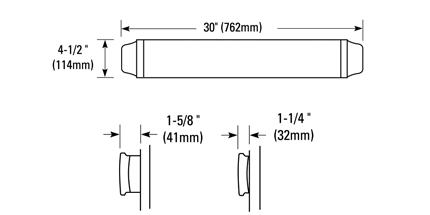

• Device Height: 4-1/2" (114mm)
• Device Length: 30" (762mm)
• Device Center Line to Finished Floor: 39-5/8" (1006mm)
• Projection: 1-5/8" (41mm) neutral; 1-1/4" (32mm) depressed
• Fasteners: Included for surface mounting to recessed door prep and through bolting to trim.
• ANSI Grade: Certified to ANSI/BHMA A156.3 Grade 1. Tested at one million cycles.

For additional specifications, see catalogue under Downloads tab.

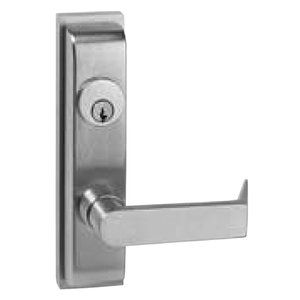

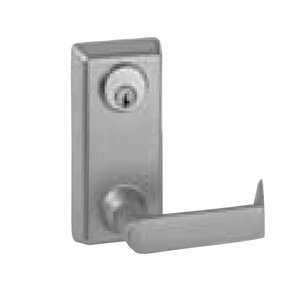

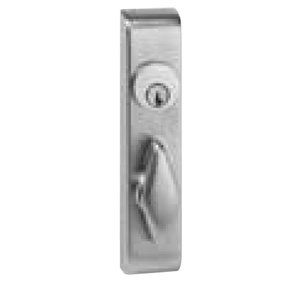

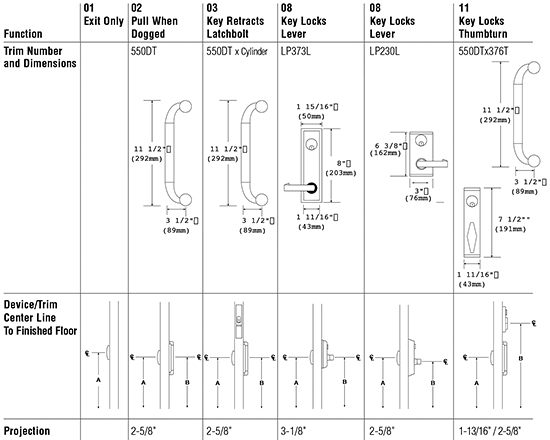

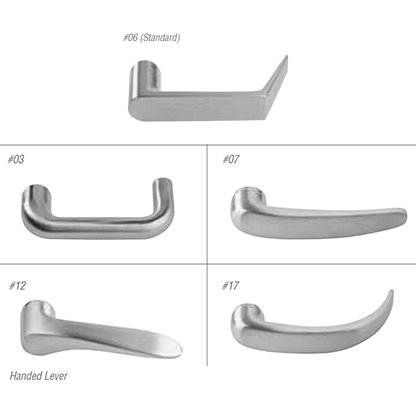

INPACT Trim Selections

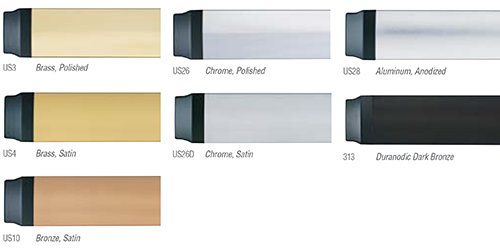

INPACT Standard FInishes

Von Duprin INPACT devices are available in seven attractive finishes to complement any project, as well as the option of a sleek, smooth pushpad and a unique, grooved pushpad. The durable die-cast aluminum endcaps are available in standard black and matching or contrasting powder
coated finishes.

Von Duprin created the first panic exit bar in response to the Iriqouis Theatre Fire of 1903 in Chicago. The fire caused the highest loss of life in history for a single building fire, taking a total of 602 lives in 20 minutes.
