SkewTek Collection

Thirty-degree end cuts on 1-1/2" diameter tubular pulls produce an interesting design element that distinguishes SkewTek pulls from the ordinary.

The availability of contrasting belts of brass and bronze on stainless steel, or vice versa, completely sets this group apart.

Because these are made to order, Rockwood can accomplish variations to suit your particular design needs.

Larger 2" diameter pulls with square ends
are perfect for extra large entrances.

Designs
Specifications
Finishes
Downloads

RM4200 - straight pull

Forward Segment

1-1/2" diameter

11" CTC, up to 96"

3-1/4" projection

RM4210LH - offset pull

Forward Segment

1-1/2" diameter

11" CTC, up to 96"

3" projection

RM4210RH - offset pull

Forward Segment

1-1/2" diameter

11" CTC, up to 96"

3" projection

RM4270-12 - straight pull

Rectangular Posts

2" diameter

12" CTC, up to 96"

3-3/4" projection

RM4270-24 - straight pull

Rectangular Posts

2" diameter

24" CTC, up to 96"

3-3/4" projection

RM4272-12 - offset pull

Rectangular Posts

2" diameter

12" CTC, up to 96"

3-3/4" projection

RM4272-24 - offset pull

Rectangular Posts

2" diameter

24" CTC, up to 96"

3-3/4" projection

RM4274-12 - straight pull

Round Posts

2" diameter

12" CTC, up to 96"

3-3/4" projection

RM4274-24 - straight pull

Round Posts

2" diameter

24" CTC, up to 96"

3-3/4" projection

SkewTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the SkewTek Collection are aluminum, stainless steel, brass
or bronze.

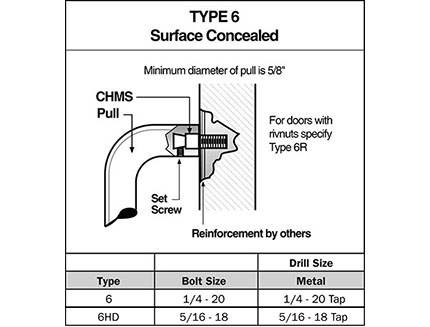

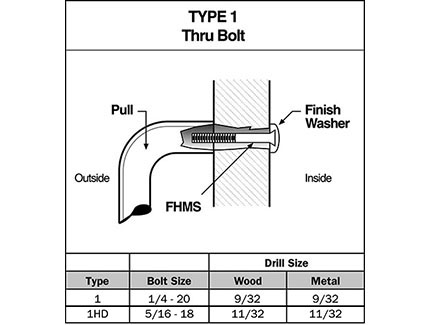

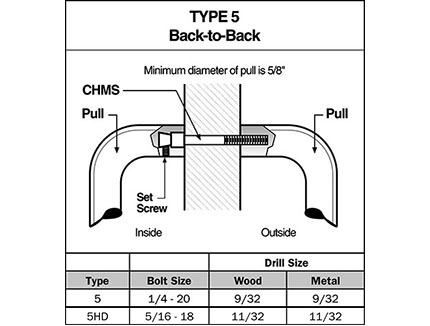

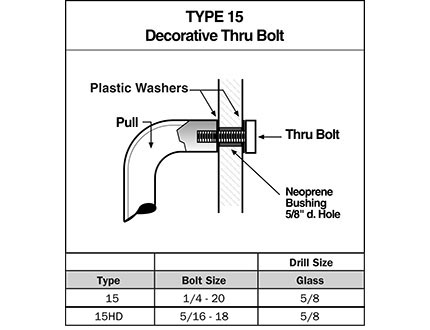

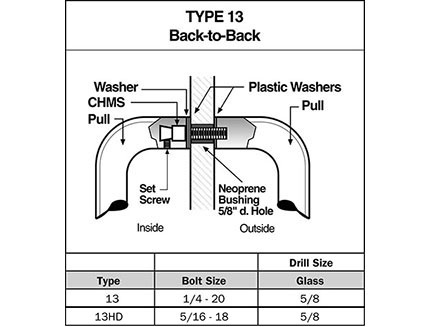

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

Over 96" available on select finishes.

Application Suggestions

Straight Pulls - Forward Segment

RM4200 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pulls - Forward Segment

RM4210 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Ordering: Specify handing (LH or RH)

Straight Pulls - Rectangular Posts

RM4270-12 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM4270-24 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 24", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Offset Pulls - Rectangular Posts

RM4272-12 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM4272-24 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 24", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Pulls - Round Posts

RM4274-12 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 12", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM4274-24 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 2"
Lengths: 24", up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
