Commercial > Hardware > Sliding Track > Barn Track

Stainless Steel Systems

PEMKO Barn Track Hardware Systems

The PEMKO Stainless Steel Sliding Track Hardware System provides a stylish and modern way to hang sliding glass or wood doors, typically used in facilities where space is at a premium.

Perfect for offices, hotel rooms and multi-family units, the Stainless Steel Sliding Track Hardware System is available with ten styles of door hangers and three finishes to complement any decor.

The system suites beautifully with products from other ASSA ABLOY Group companies, including architectural door pulls and accessories from Rockwood Manufacturing.

All mounting and installation hardware is conveniently packaged as kits in two standard track lengths.

Designs
Specifications
Downloads

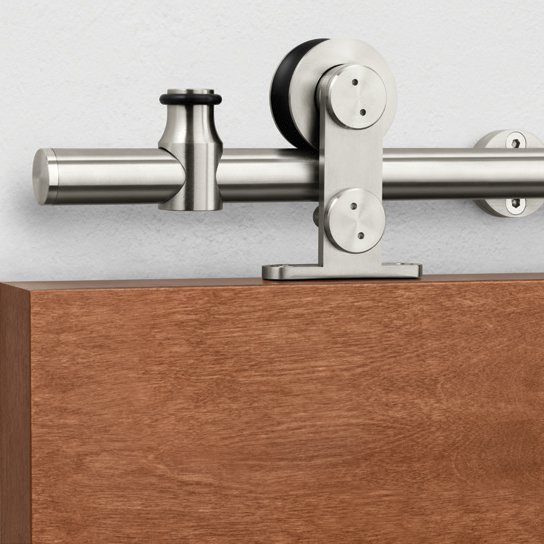

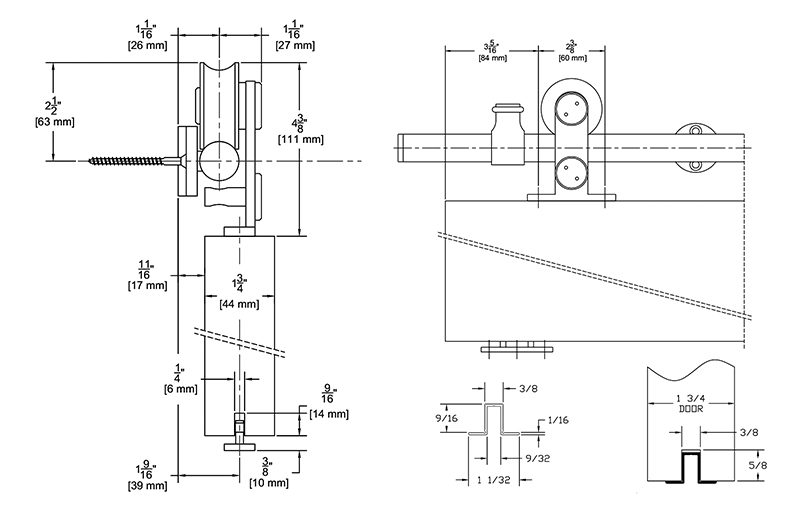

W60 - top strap

Door weight: up to 176 lbs.

Hanger height: 4-3 ⁄8"

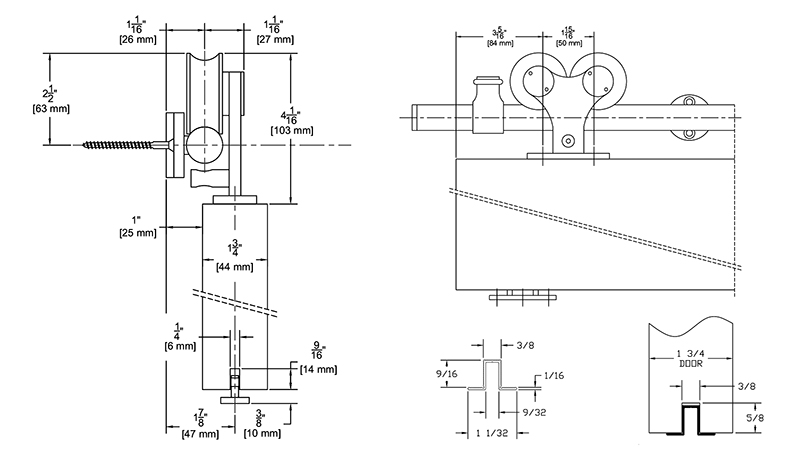

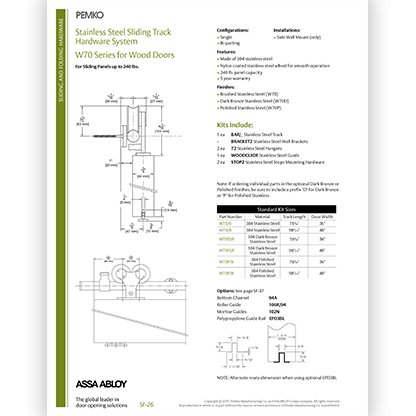

W70 - alternate top strap

Door weight: up to 240 lbs.

Hanger height: 4-1 ⁄16"

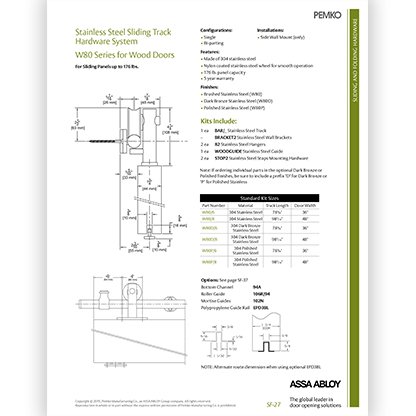

W80 - tubular top strap

Door weight: up to 176 lbs.

Hanger height: 4-1 ⁄4"

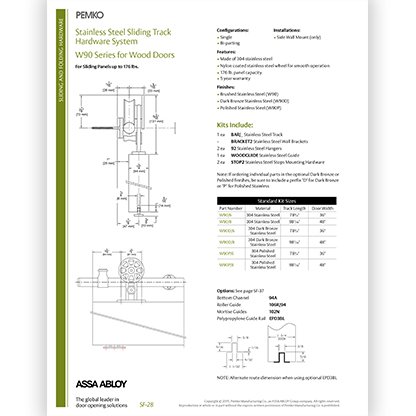

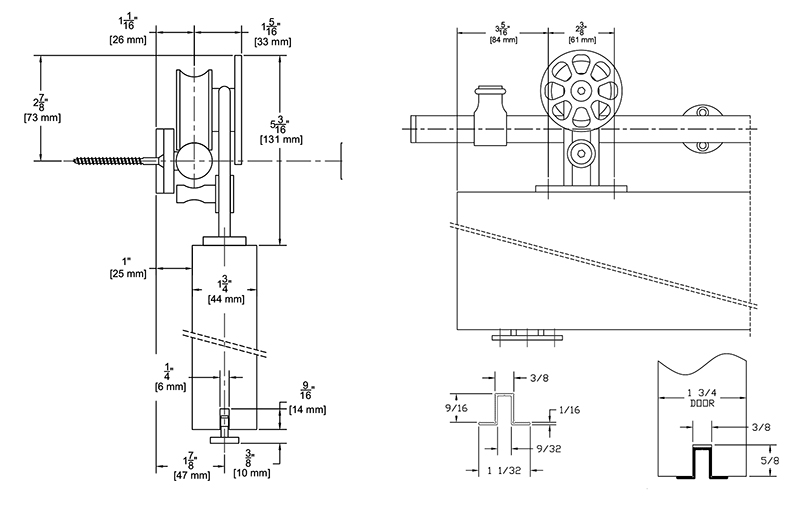

W90 - spoked wheel top strap

Door weight: up to 176 lbs.

Hanger height: 5-3 ⁄16"

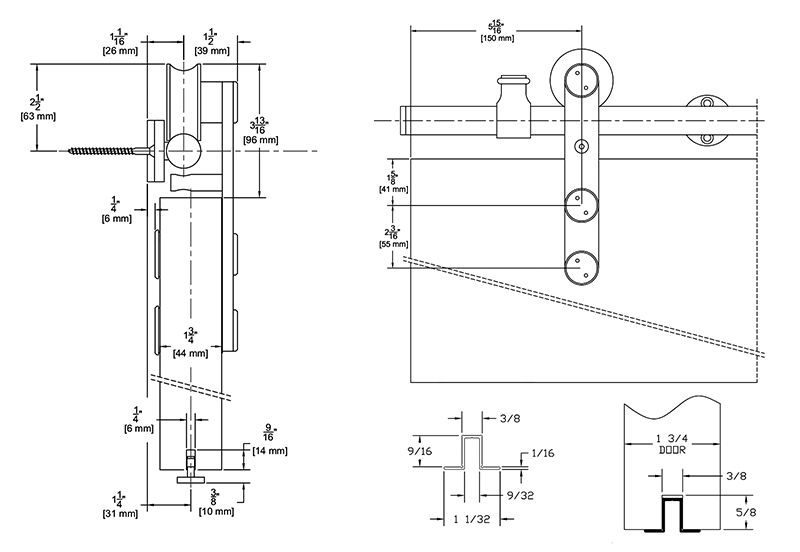

W100 - heavy duty straight strap

Door weight: up to 198 lbs.

Hanger height: 3-13 ⁄16"

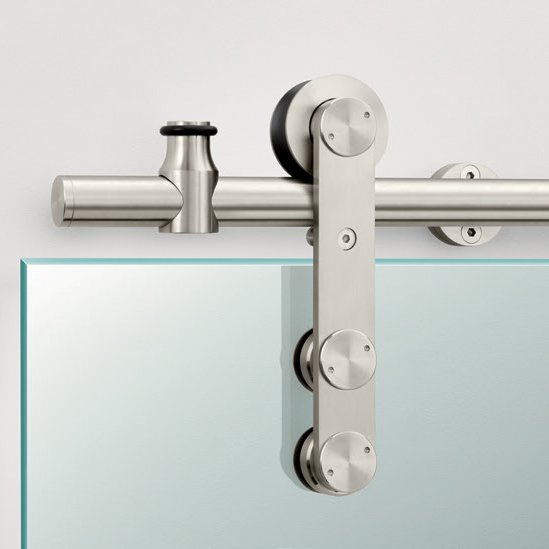

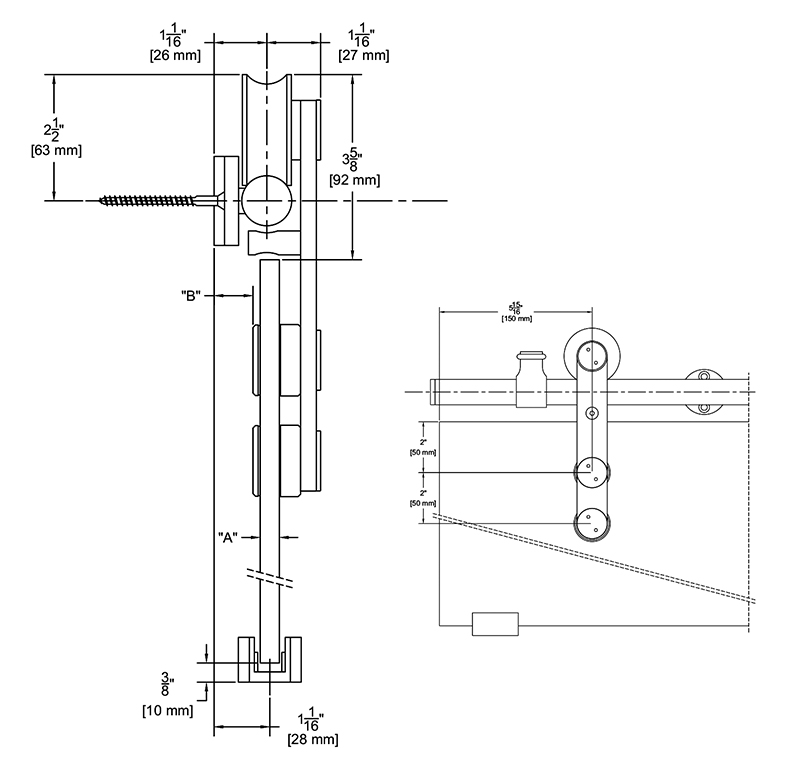

G60 - straight strap

Door weight: up to 198 lbs.

Hanger height: 3-5/8"

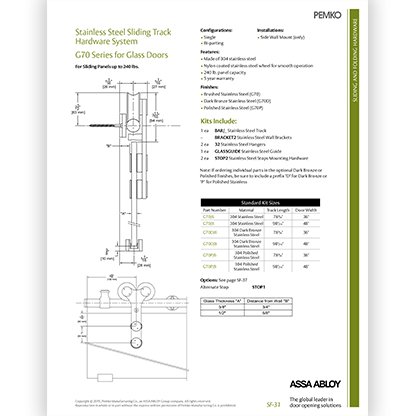

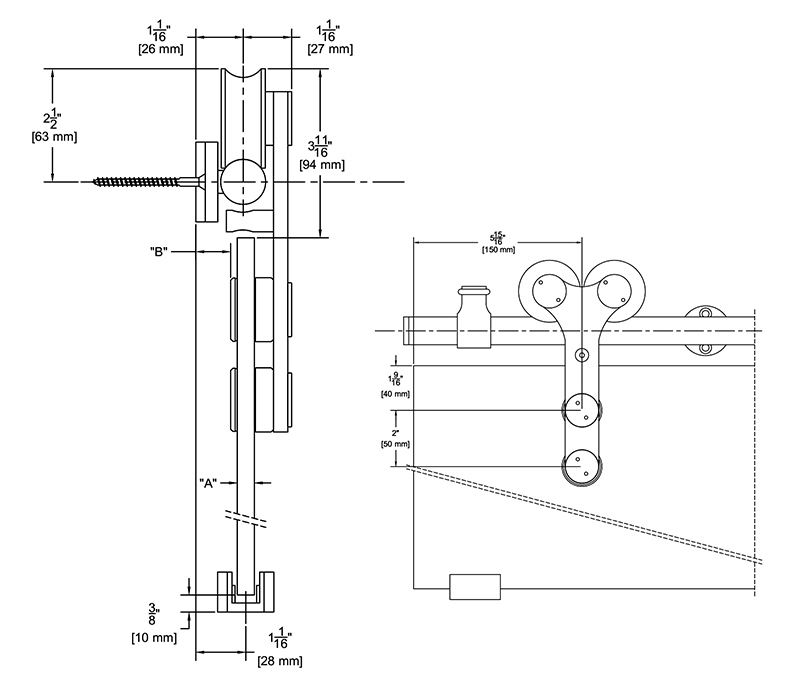

G70 - alternate straight strap

Door weight: up to 240 lbs.

Hanger height: 3-11 ⁄16"

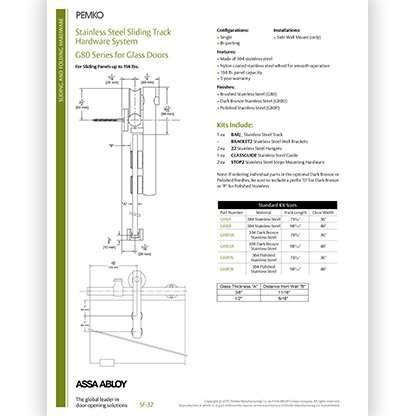

G80 - tubular straight strap

Door weight: up to 198 lbs.

Hanger height: 3-11 ⁄16"

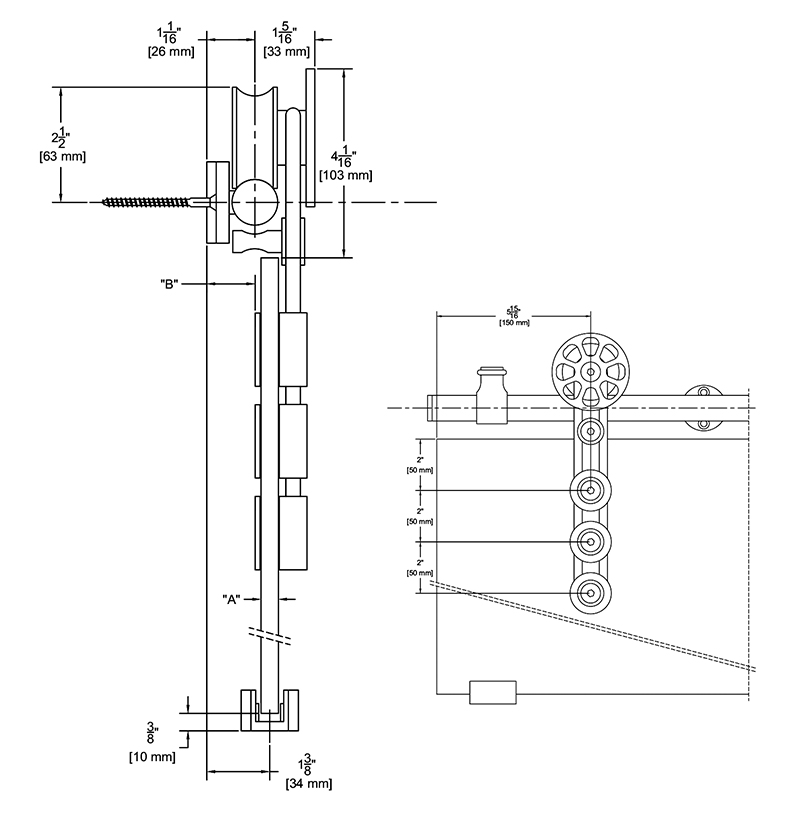

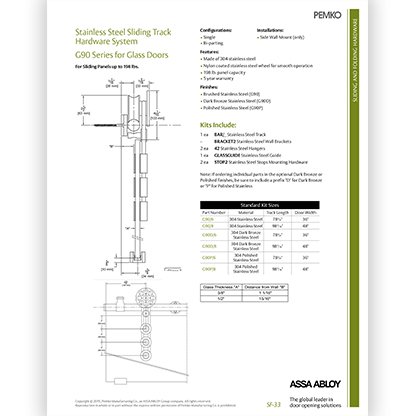

G90 - spoked wheel straight strap

Door weight: up to 198 lbs.

Hanger height: 4-1/16"

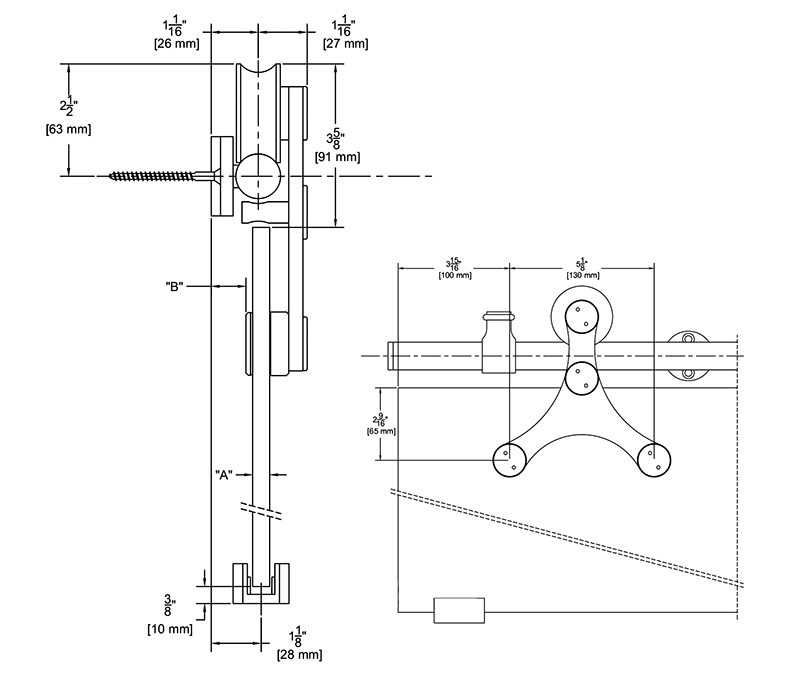

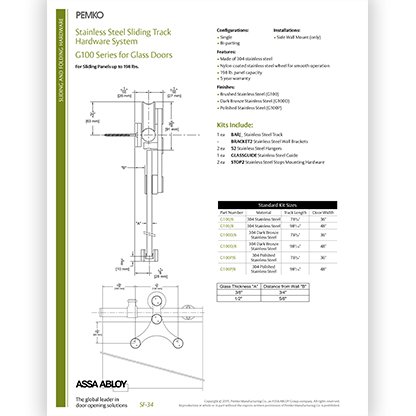

G100 - heavy duty alternate strap

Door weight: up to 198 lbs.

Hanger height: 3-5/8"

PEMKO Stainless Steel Barn Track Systems

Features & Benefits:

Stainless steel hangers glide along – smooth and quiet operation on nylon coated wheels makes it appropriate for shared spaces
For wood or glass doors up to 240 lbs. – durable system designed for a range of doors
Each hanger is equipped with an anti-rise pin – ensures the door cannot be lifted off the track
10 styles of door hangers that suite with Rockwood door pulls – complements modern decor and open interiors
Meets performance requirements of ANSI/BHMA 156.14 – tested to meet strict performance standards

Technical Specifications:

Materials: 304 stainless steel track and hangers; nylon coated rollers
System includes: Stainless steel track (6'6" or 8'2") with end caps; 2 hangers; wall brackets; 1 door bottom guide; 2 track stops; mounting and installation; hardware
Finish Options: Brushed Stainless Steel, Dark Bronze Stainless Steel or Polished Stainless Steel
Standards: Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation

Door Specifications:

Door weight: 176 lbs. to 240 lbs., depending upon hanger style
Wood doors: 1-3 ⁄4" thick; glass doors: 3 ⁄8" to 1⁄2" thick
Door bottom: 3 ⁄8" undercut; can include lites or tinted glass

Please contact Penner for custom track lengths.

PEMKO ASSA ABLOY

PEMKO offers a variety of solutions to save energy, improve acoustics, enhance aesthetics and meet life safety needs. Products include thresholds, gasketing, door bottoms, continuous hinges, and a variety of sliding and folding door systems.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
